6253 DC Voltage Current Source/Monitor Operation Manual
5.5.3 Specifications
5-12
5.5.3 Specifications
The specifications of RS-232 are shown below.

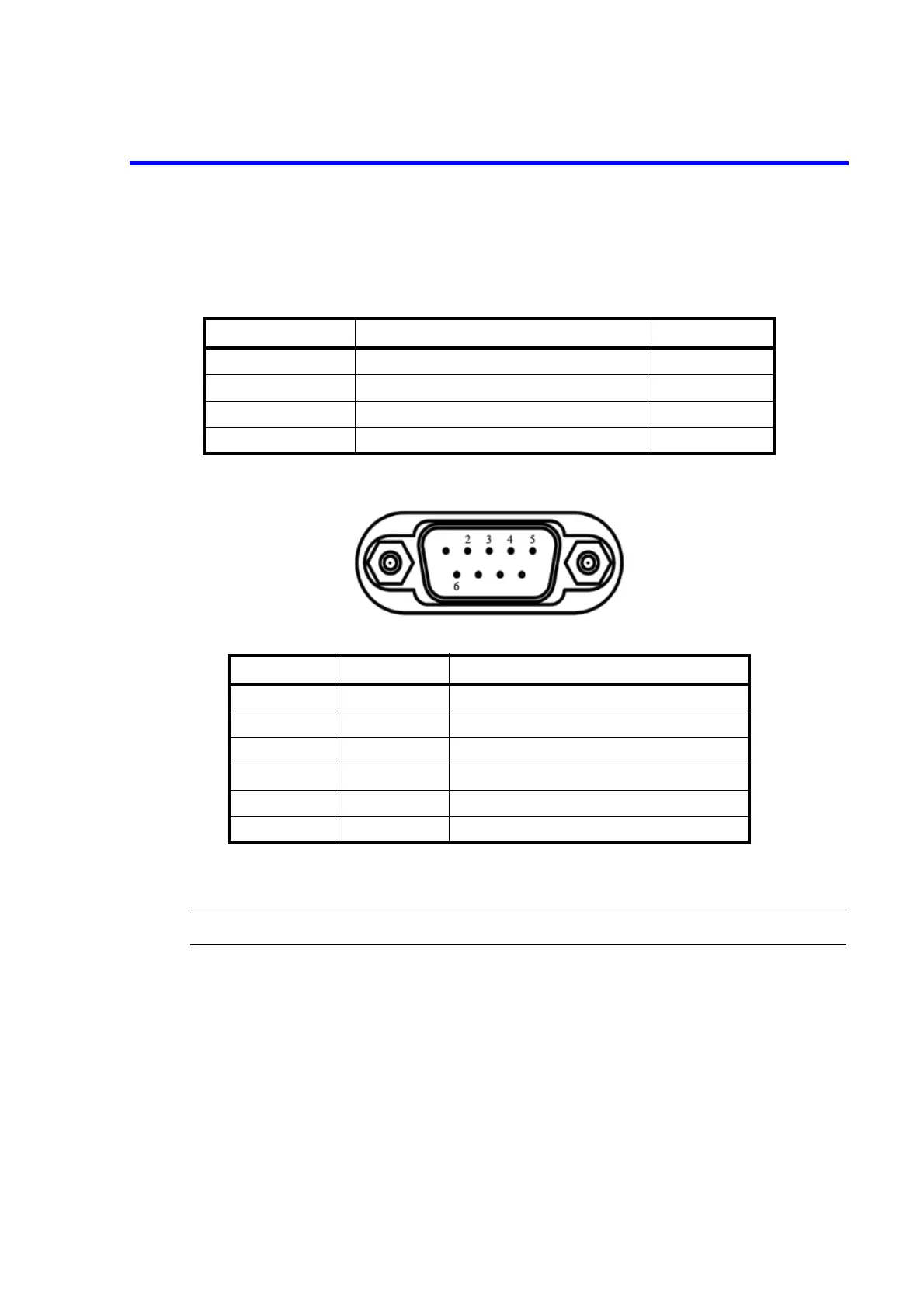

The RS-232 connector on the rear panel is a 9-pin connector (DB-9, male).
The transmit data (TxD) checks the status of the data set ready (DSR) inside the 6253. If the data set ready
(DSR) is false, data output is interrupted. When it is true, data is output.
CAUTION: Flow control by X parameters (XON/XOFF) is not available on the 6253.
5.5.4 Setting RS-232
Set I/F BUS on the interface menu to “RS232.”
The RS232 Config settings such as baud rate, data bit, parity bit and stop bit should be made.
Setting item Value Factory default
Baud rate 19200/9600/300/600/1200/2400/4800 9600
Data bit 8 bit/7 bit 8 bit
Parity bit NONE/ODD/EVEN NONE
Stop bit 1 bit/2 bit 1 bit
Pin number Input/output Description
2 Input Receive data (RxD)
3 Output Transmit data (TxD)
4 Output Data terminal ready (DTR)
5 - Signal ground (SG)
6 Input Data set ready (DSR)
1, 7 to 9 - No connection
To Next Page
