Agilent Technologies 1290 Infinity II 2D-LC

2D-LC User Guide 247
9 Data Analysis
2D-LC Data Analysis/Data Evaluation for MassHunter
7 Then the retention time for MS1 and DAD2 was entered.

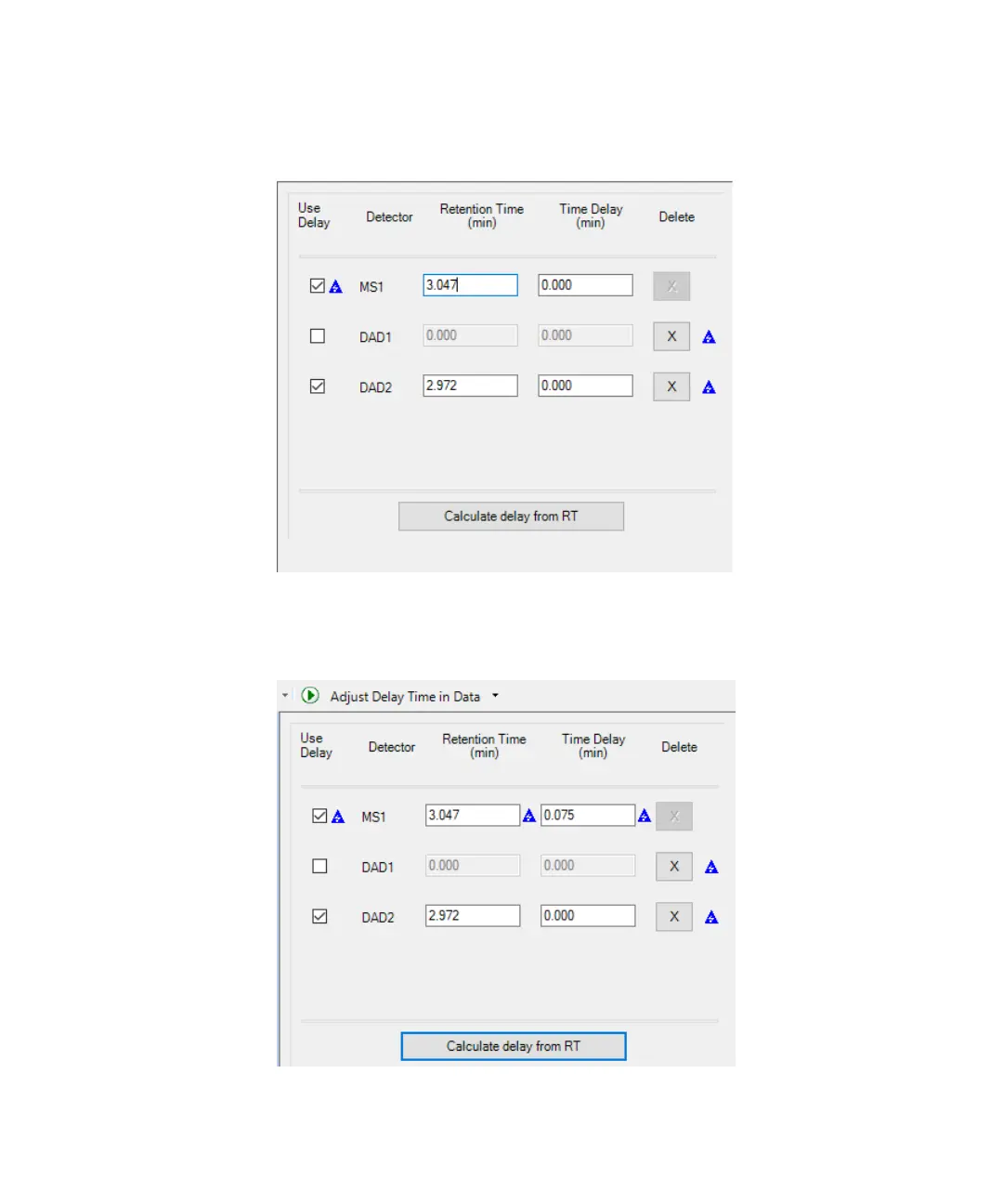

Figure 125 Retention Time Value for Peak1 (MS RT 3.047min and DAD2 2.972 min)
8 By pressing the Calculate delay from RT button and the delay time calculated
at 0.075 min.
Figure 126 Delay time calculation
