Agilent Technologies 1290 Infinity II 2D-LC User Manual

9 Data Analysis
GC Image Basic Information
2D-LC User Guide 258

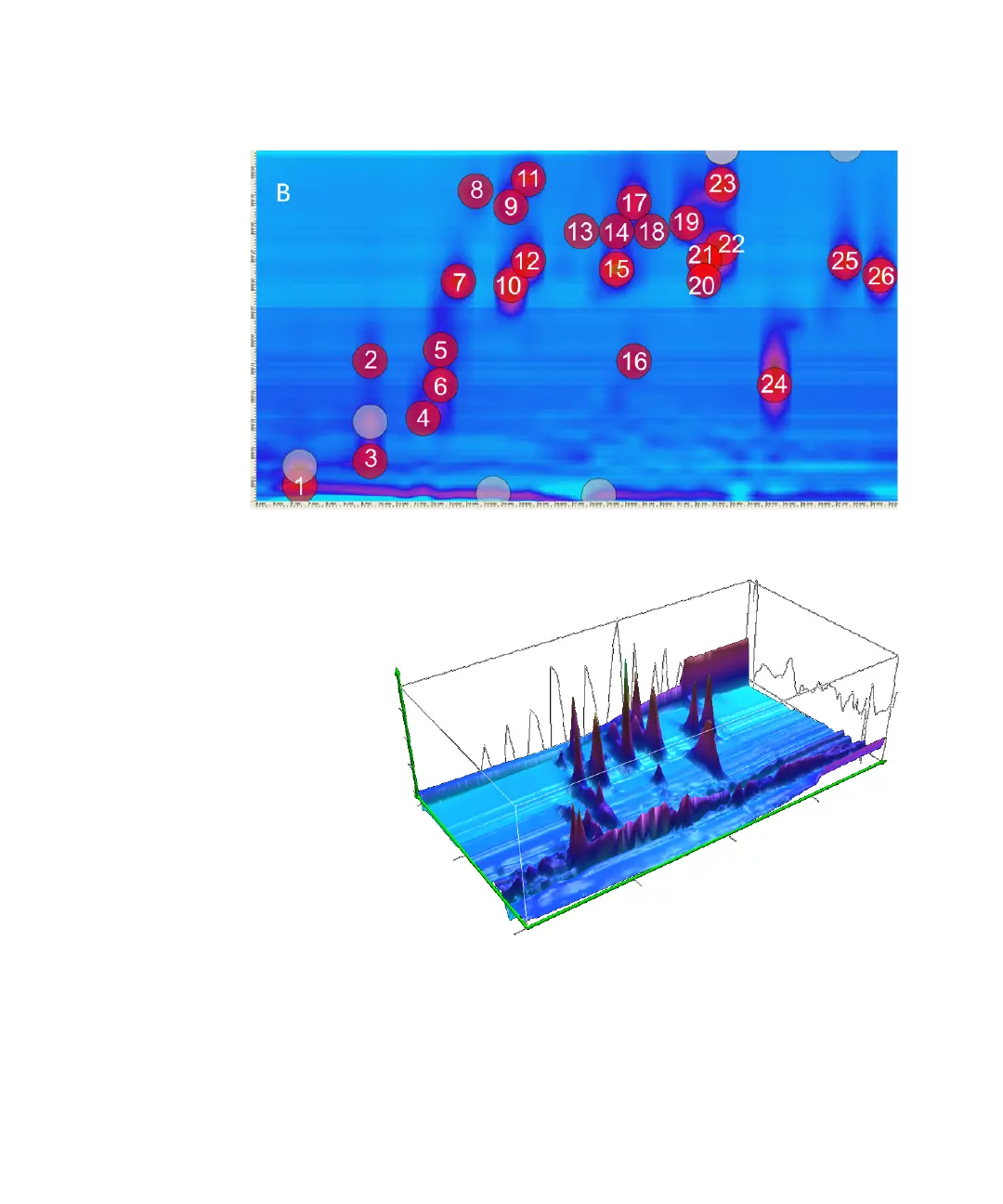

Figure 140 2DLC plot after baseline correction and with software detected peak annotation
Figure 141 3-Dimensional display of the separation of the 26 compound standard mixture. The
first dimension separation takes 40 minutes and each second dimension separation
takes 39 seconds. The back side shows a generated first dimension chromatogram
and gives the impression which peaks are coeluting and separated in the second
dimensions.
Intensity
Column II
Column I
6,000
4,000
2,000
0
0
20
10
20
30
