2D-LC User Guide 33
2 Concepts of 2D-LC
Triggering of 2D-LC
The valve switches under the following conditions (whichever comes first):
• If the Sampling time has elapsed, or

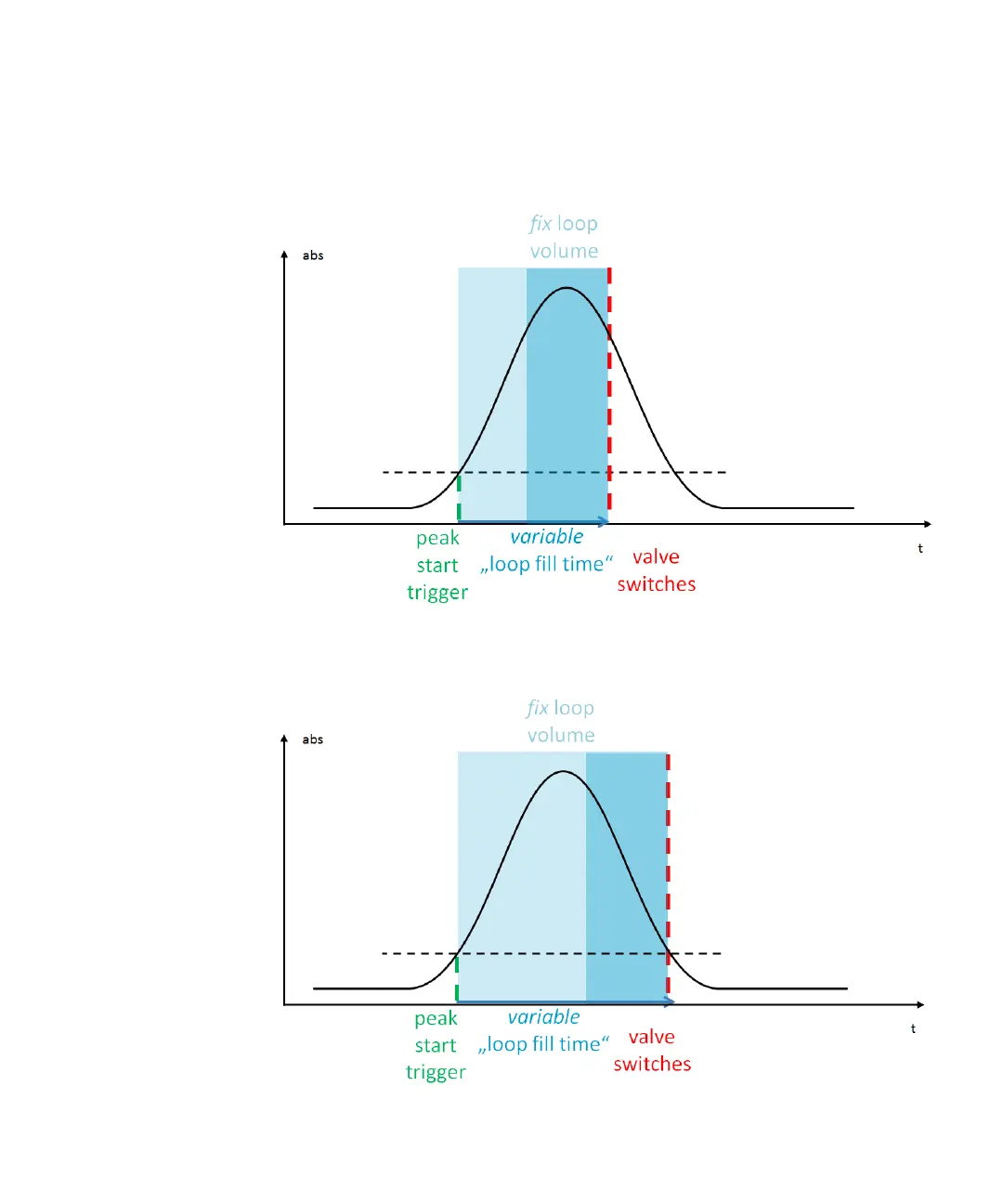

Figure 11 Peak triggering concept (elapsed sampling time)
• If the signal falls below threshold or slope.
Figure 12 Peak triggering concept (signal falls below threshold or slope)
