Agilent Technologies 1290 Infinity II 2D-LC User Manual

2D-LC User Guide 333
12 Maintenance

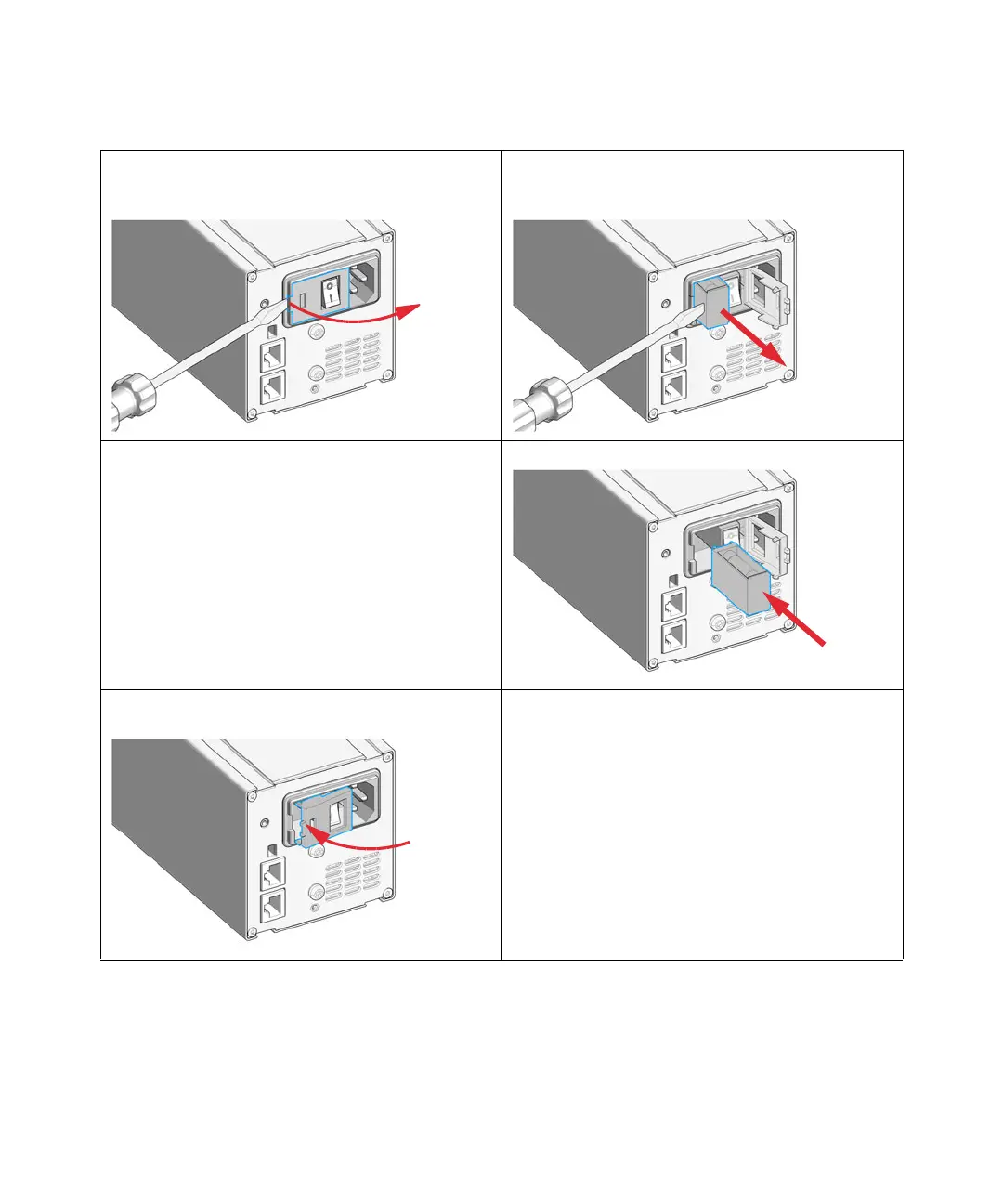

Replacing the Fuses of the Infinity Valve Drive
3 To access the fuse drawer, gently lift the outer plastic
housing of the power inlet socket using a flat
screwdriver.
4 Pull out the fuse drawer as shown.
5 Replace the defect fuse(s). 6 Slide in the fuse drawer and push till it fits tightly.
7 Finally, close the fuse drawer housing, reconnect the
instrument to the power line and switch it on.
