2D-LC User Guide 61
4Installation
Hardware Installation
Installation of the 2D-LC Valve and optional MHC decks
Attaching the external valve drives
For InfinityLab 2D-LC instruments that comprise at least one 1260 Infinity II or
1290 Infinity II pump, valve drives are attached to this pump with the Valve Clamp
Kit IF II (5067-5685), while the valve drives are interconnected by the Adapter
profile (5043-0269). The 2D-LC valve and if selected the MHC decks are mounted
on external valve drives (G1170A).
For a SHC configuration, the 2D-LC valve (G4236A) is attached to the upper
pump of the stack. In case of a MHC configuration, the upper MHC deck is
attached to the upper pump.

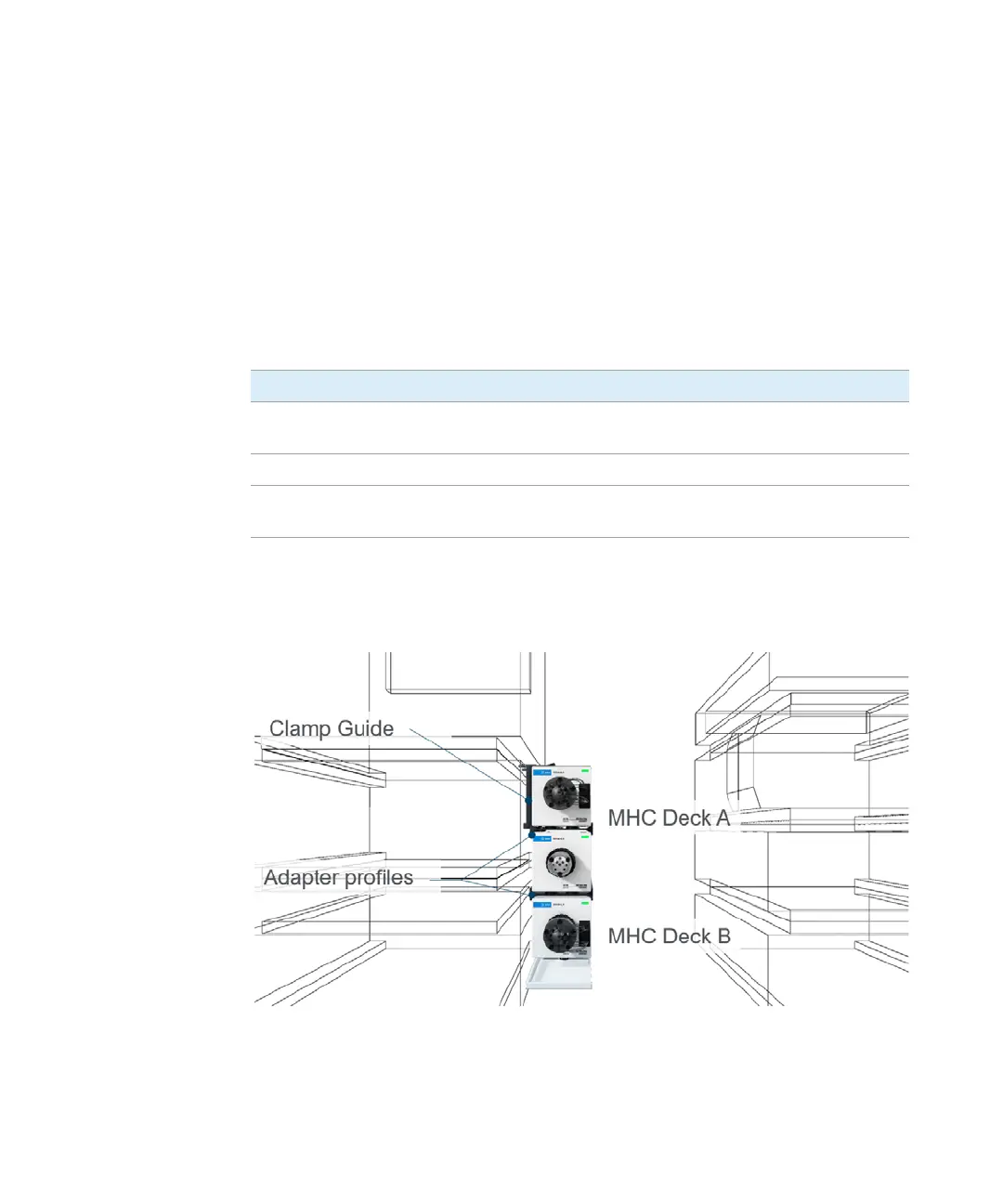

Figure 25 Schematic of the installation and attachments of the 2D-LC valve and optionally the
MHC decks.
# Holders / connectors Connection P/N
3 1290 Infinity Valve Drive (must be purchased
separately)
Mooting of Valves G1170A
1 Clamp Guide Kit IF II (delivered with G1170A) Top valve to pump 5067-5685
2 Adapter-profile (delivered with MHC Decks) between G1170A
drives
5043-0269
