4Installation
Hardware Installation
2D-LC User Guide 74

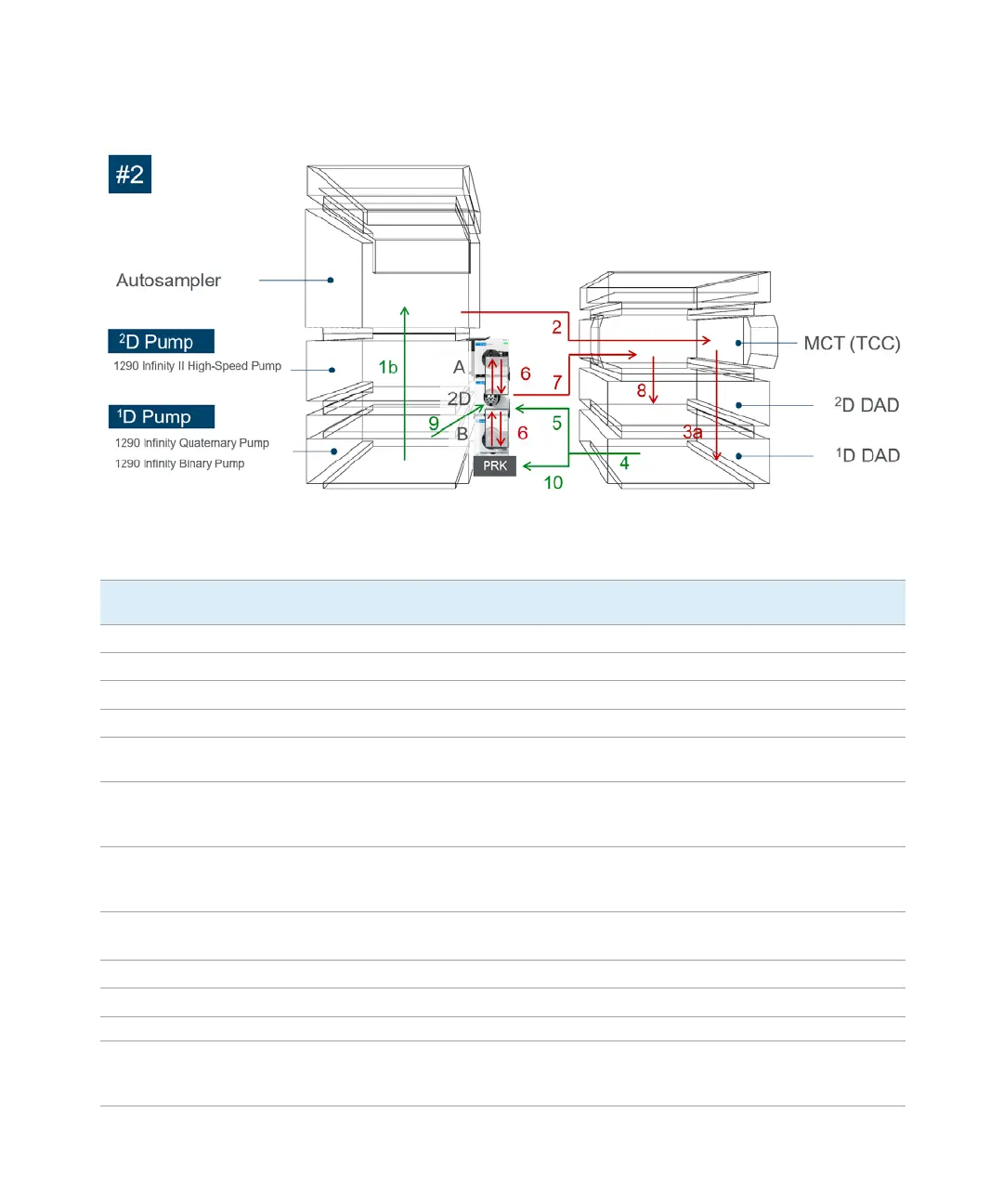

Figure 32 Stack Setup #2. Recommended setup if the
1
D pump is a 1290 Infinity Binary Pump or
a 1290 Infinity Quaternary Pump.
Number of
Capillary
# Connection L x ID [mm] P/N Description
1b 1
1
D pump (bottom) to sampler
600 x 0.17 5067-4670 Capillary ST 0.17x600 S/SH
21
Autosampler to
1
D column (in MCT)
600 x 0.12 5067-4669 Capillary ST 0.12x600 S/SL
3a 1
1
D column to
1
D DAD
400 x 0.12 5500-1251 Capillary ST 0.12x400 SL/SL
41
1
D DAD to T-piece of PRK
400 x 0.17 5500-1245 Capillary ST 0.17x400 SI/SI
5 1 T-piece of PRK to Standard 2D-LC Valve
(Port 3) / ASM Valve (Port 4)
105 x 0.17 5500-1240 Capillary ST 0.17x105 SL/SL
6a 4 2D-LC Valve (1) - Deck (IN) – Deck (Out) -
2D-LC Valve (8) 2D-LC Valve (5) - Deck (IN) –
Deck (Out) - 2D-LC Valve (4)
170 x 0.12 5500-1270 Capillary ST 0.12x170 S/M
6b 4 ASM Valve (7) - Deck (IN) – Deck (Out) - ASM
Valve (3) ASM Valve (2) - Deck (IN) – Deck
(Out) - ASM Valve (8)
170 x 0.12 5500-1376 Capillary ST 0.12x170 M/M
(delivered with 2D-LC Valve
Kit, ASM)
71
2D-LC valve (6) / ASM valve (10) to
2
D
column (in MCT)
400 x 0.12 5500-1251 Capillary ST 0.12x400 SL/SL
81
2
D column (in MCT) to
2
D DAD
280 x 0.12 5067-4651 Capillary ST 0.12x280 SL/SX
91
2
D pump to 2D-LC Valve (7) / ASM Valve (5)
280 x 0.17 5067-4608 Capillary ST 0.17x280 SX/S
10 1 T-piece of PRK to damper capillary 150 x 0.17 5500-1227 Capillary ST 0.17x150 SL/SL
11 1 waste line self-cut x
0.7
0890-1713 Tubing-flexible 0.8/1.61mm
PTFE WT (delivered with UV
detector)
