92 Agilent Restricted Agilent 5110/5100 ICP-OES Service Manual
4 Removal/ Installation, Replacement and Adjustment
RF Oscillator

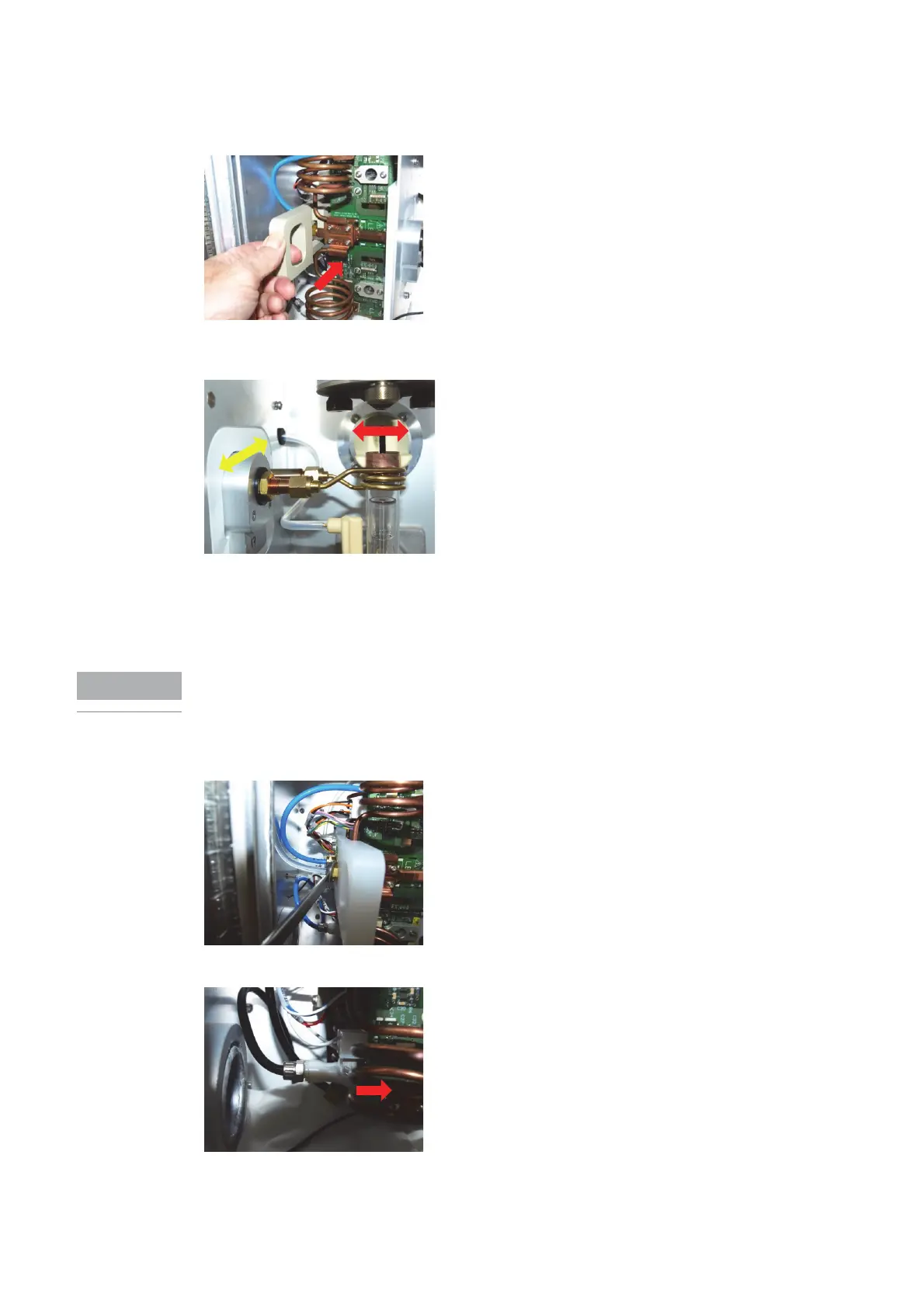

10 When assembling RF Oscillator module into instrument ensure the handle pushes the
connector home before attempting to tighten screws.
11 Position SSRF module to align work coil laterally (front to back and yellow arrow) with torch
before securing SSRF screws.
12 Position coil left to right (red arrow) by adjusting work coil position in collets before
tightening both work coil collet nuts.
Hint: Use a business card thickness to ensure front to back and left to right clearance between
work coil and torch glass.
13 Tighten front two screws and then tighten rear slotted screws to secure assembly. Recheck
for coil to torch clearance.
14 Secure clear water hose by tightening compression fitting. Do not overtighten!
15 Press home lower water connector until latch engages.
