Standalone Control
Setting the run parameters
102
Setting the position of the last vial
When using a tray, the tray arm delivers sample vials starting from position 1
and continues to deliver vials until it cannot find the next vial in the quadrant.
For example, if sample vials are in positions 1 to 10 and 15 to 30, the tray
delivers samples 1 to 10 and then stops at position 11.
Without the tray, you must identify the position of the last vial in the turret with
the rotary switch. Any position over three will be ignored by the standard
turret. Positions 4 to 8 are only accessible when the high-density turret is
mounted. The high-density turret is not compatible with the tray.

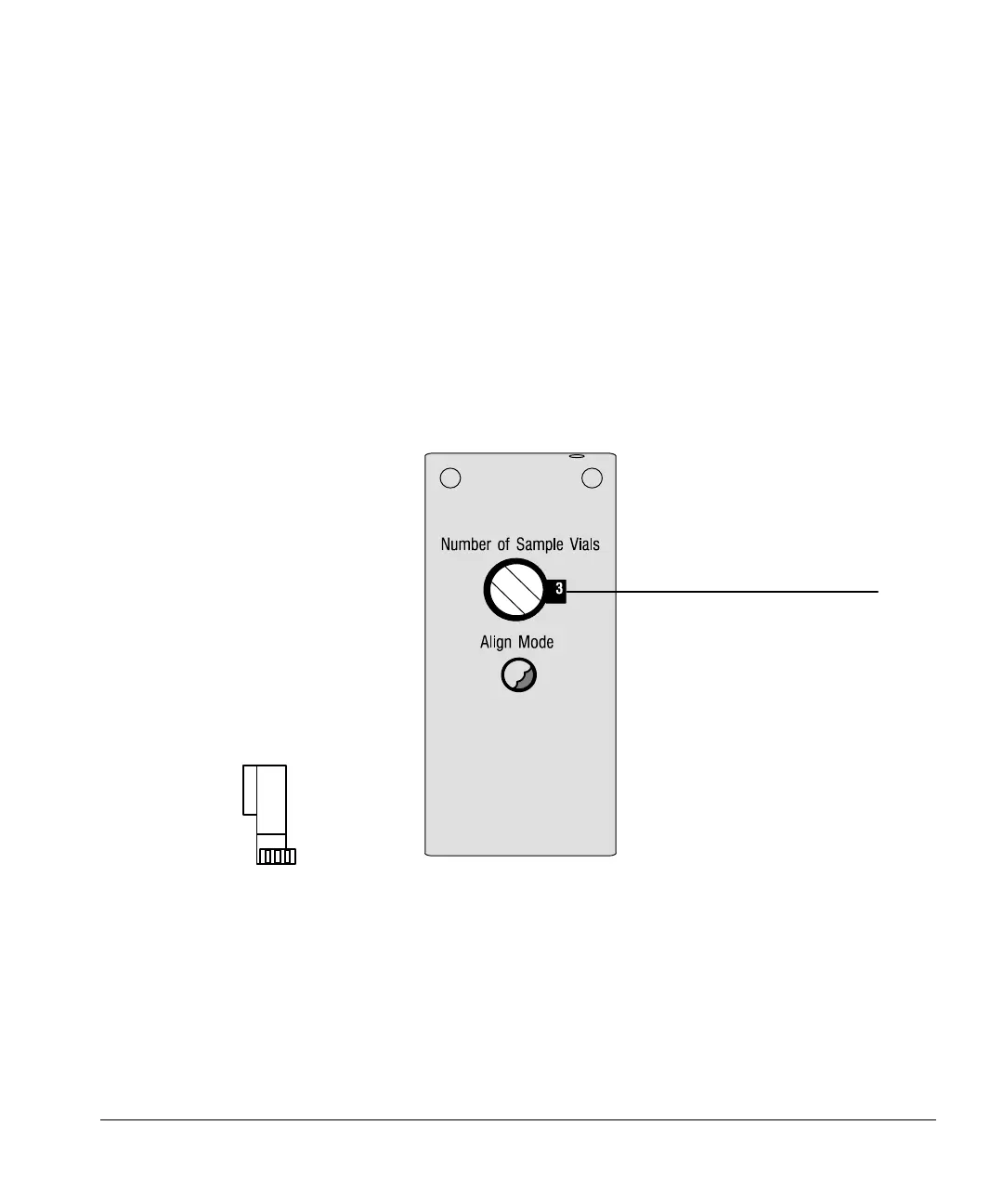

Figure 60. Setting the rotary switch for three sample vials
Indicates the number of vials
