Agilent Technologies 7673 - Example of Standalone Control Setup

Standalone Control
Example of standalone control setup
109
Example of standalone control setup
1. Set the GC to minimize the time between injections.
2. Open the door to the injector control switches.

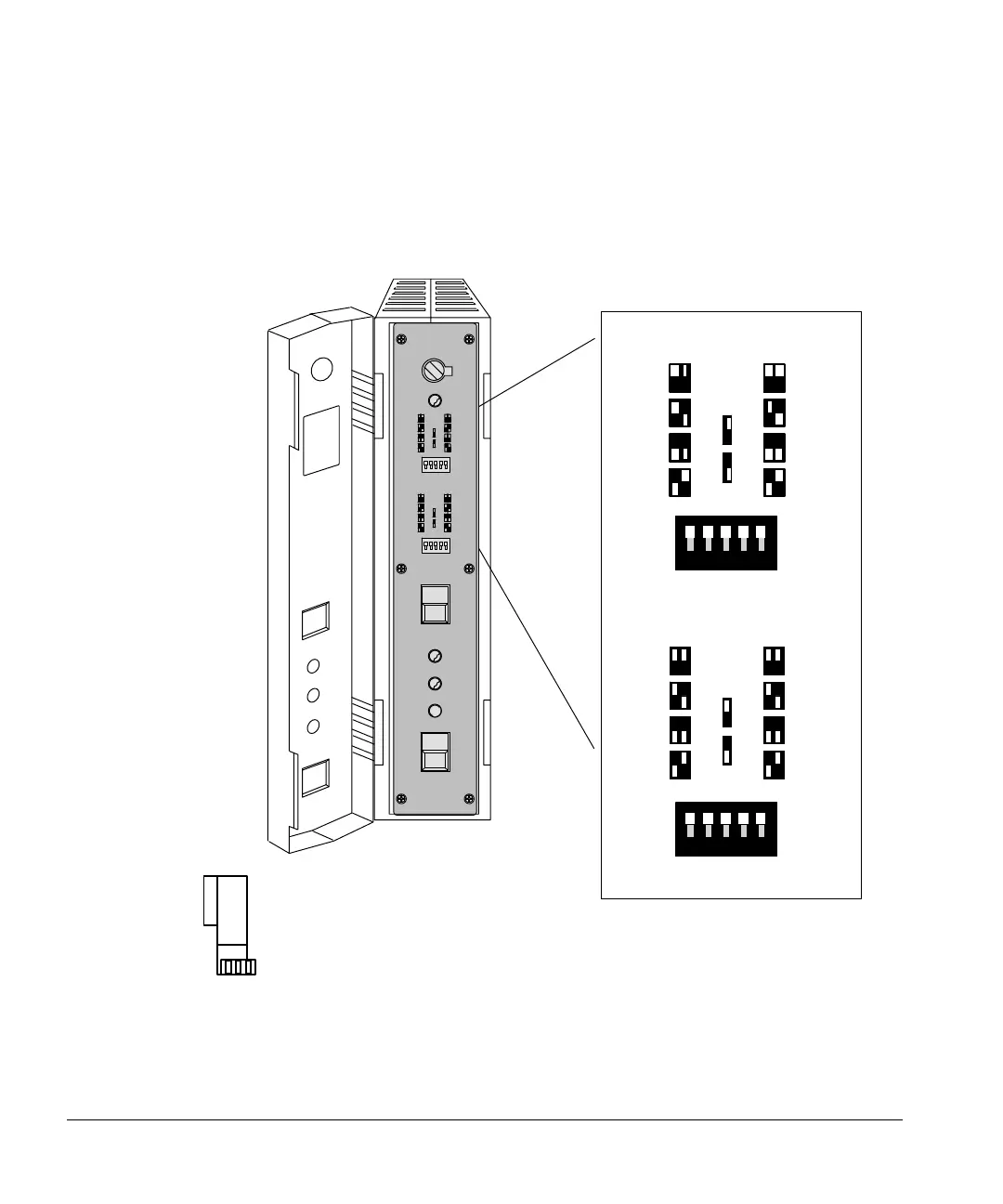

Figure 64. Switches for setting six injector parameters
