Preparing for Operation
Selecting and installing syringes
52
If there are ridges, polish the needle by pulling it through a folded piece of
fine emery paper between your finger and thumb until the ridges are gone.
Be careful not to modify the special blunt tip of the syringe.
3. Check for a sticky plunger. Slide the plunger of the syringe up and down a
few times. It should move smoothly without sticking or binding. If it is
sticky, remove the plunger, and clean it with solvent.
Installing syringes
After completing this task, check your work with the following instructions:
1. Open the injector door.
2. Pass the syringe needle through the hole in the needle support foot.
3. Align the syringe barrel with the flange guide and syringe clip. Press the
syringe in place, keeping the needle in the hole of the needle support foot.
4. Close the syringe latch by swinging it clockwise.

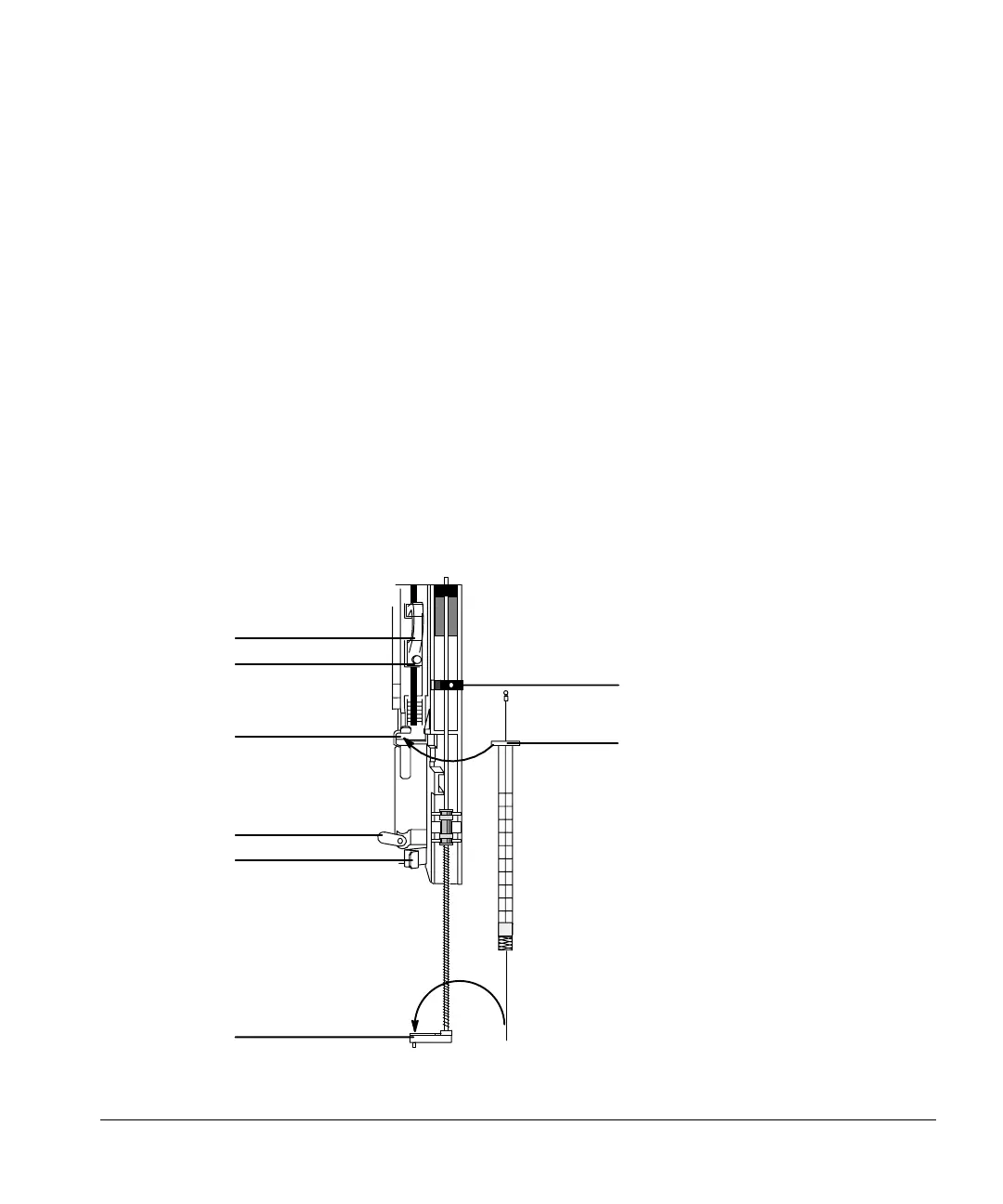

Figure 40. Installing the syringe in the syringe carriage and needle support
Flange
Slide
Syringe clip
Plunger carrier
Syringe latch
Flange guide
Needle support foot
Plunger screw
