Setting Up
Preparing the site
6
WARNING Place the G1512A controller where you can easily unplug it from the power
source.

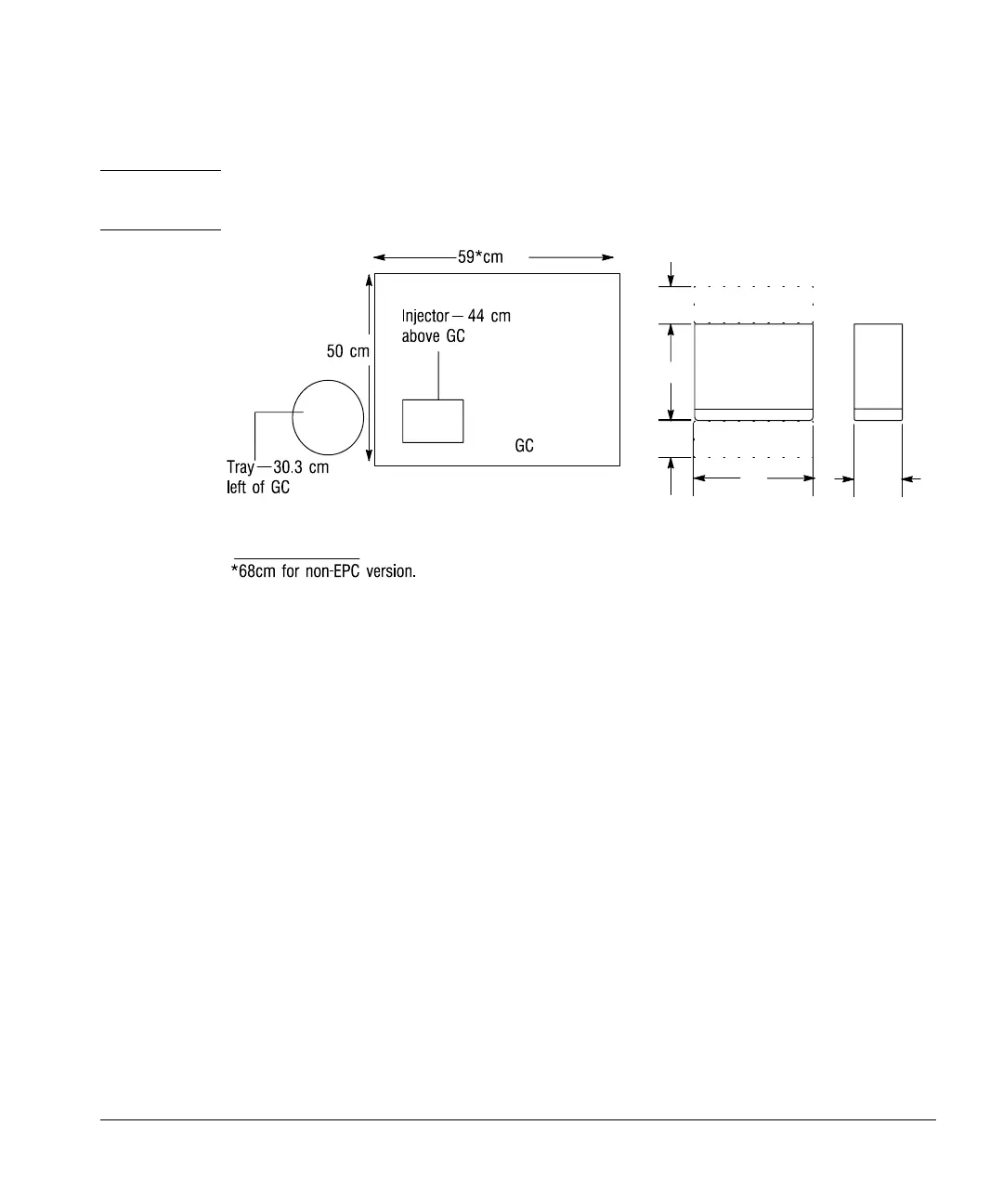

Figure 2. Space considerations
Electrical power requirements
The controller is the power source for the injector and tray. The controller has
an autoranging power supply:
• 100–240 Vac single phase
• 48–66 Hz maximum
•320 VA maximum
The automatic liquid sampler requires a proper earth ground. To protect users,
the metal instrument panels and cabinet are grounded through the three-
conductor power line cord in accordance with International Electrotechnical
Commission (IEC) requirements.
The power cord must be plugged into a receptacle connected to a suitable
earth ground. The receptacle ground should be verified.
14
30
10
or
10
33
Ventilation and cabling space
Ventilation space
All dimensions in centimeters
