Setting Up
Installing the controller
22
back. Be sure the spring clamps on either side of the plug snap onto the
connector. Note the TOP label on the connector for orientation purposes.

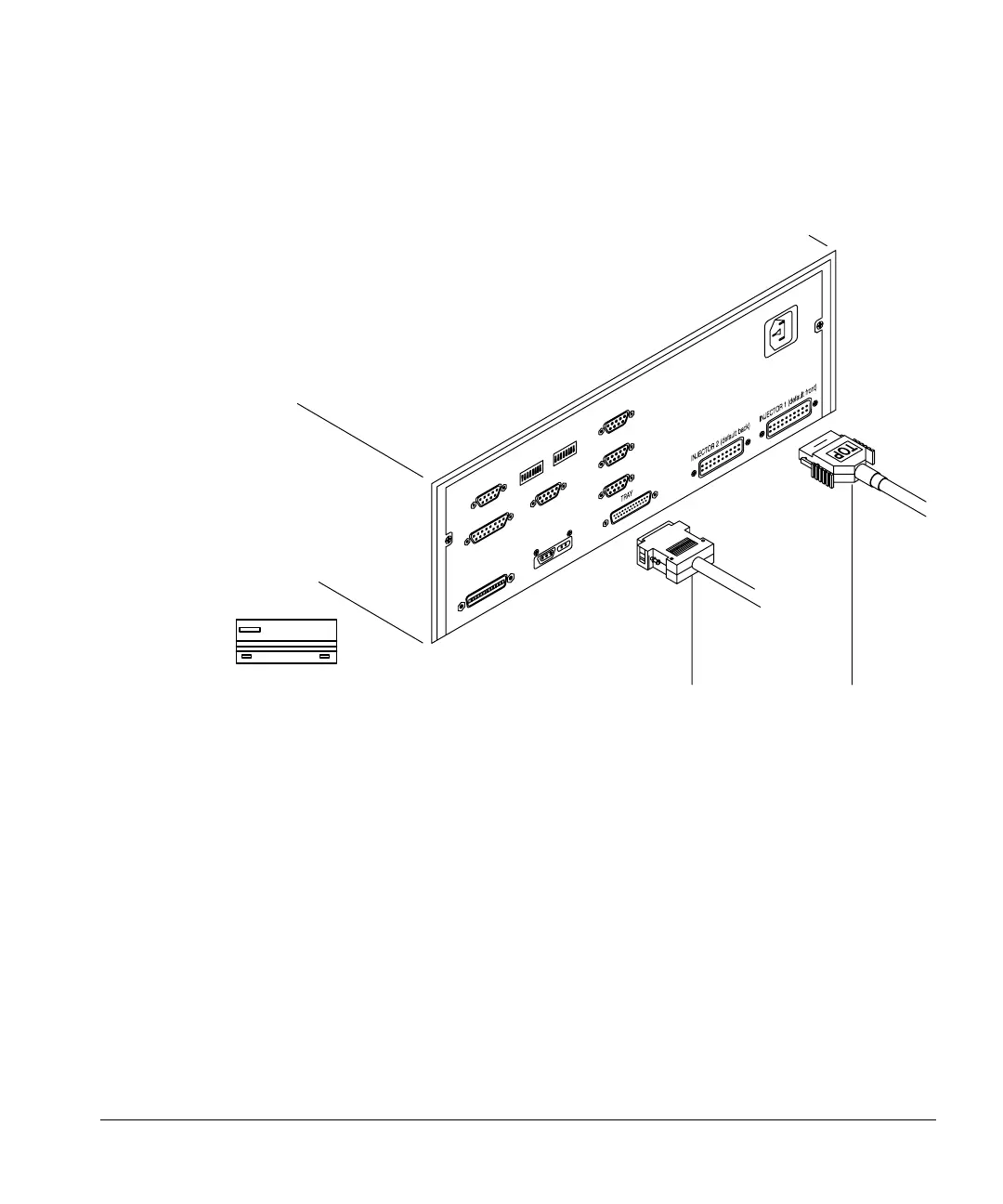

Figure 16. Connecting the injector and tray cables
Connecting the tray cable
Plug the cable into the tray connector on the back panel of the controller.
Secure the plug to the connector with a small flathead screwdriver.
Connecting the controller power cord
1. Check the on/off button on the front of the controller. It must be off or
flush with the front panel before you plug in the power cord.
2. Plug the female end of the power cord into the AC power receptacle on the
back of the controller.
3. Plug the male end of the power cord into the AC power receptacle of
your facility.
