Setting Up
Installing the tray
14

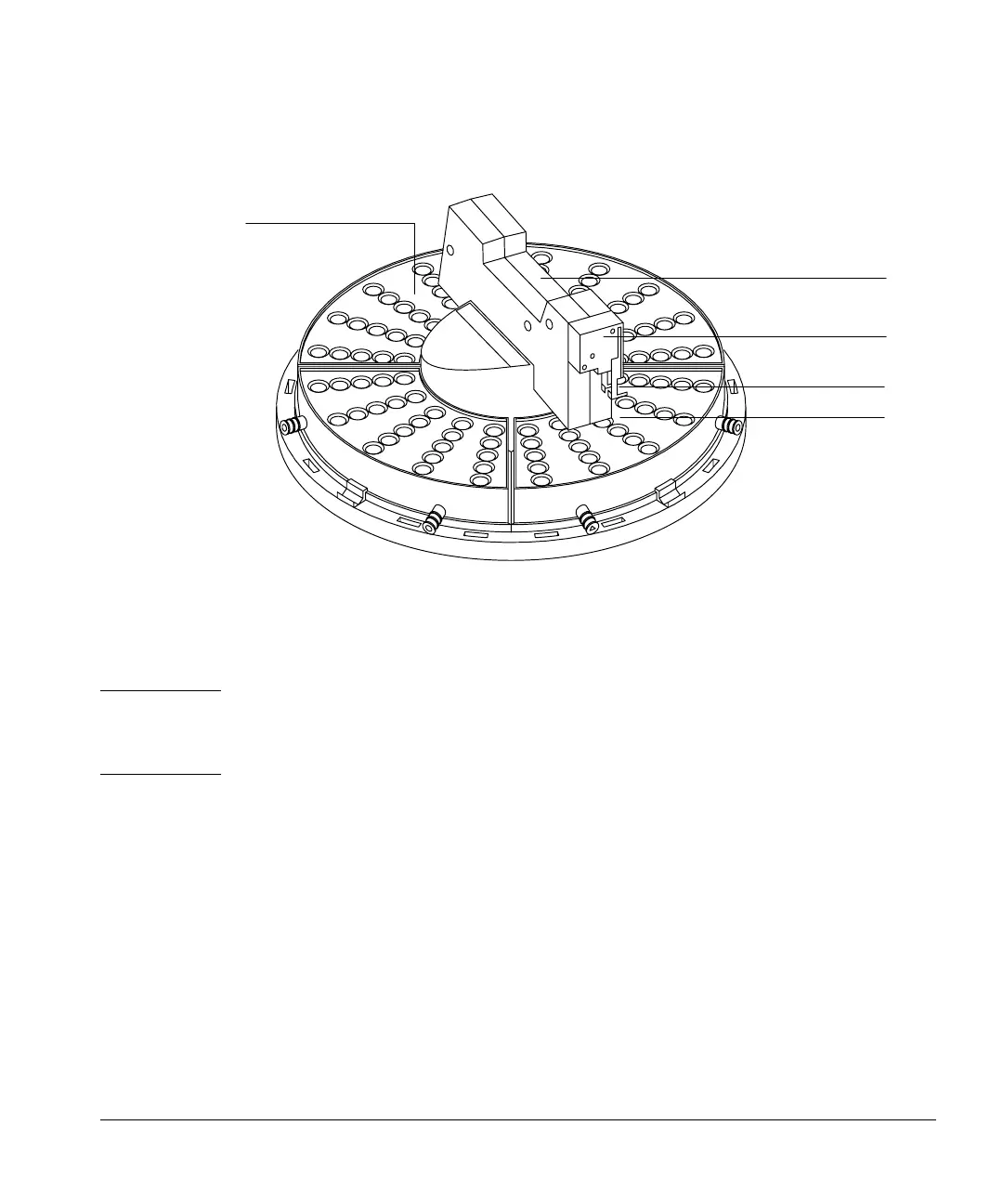

Figure 7. 18596B tray module
Before you start
Caution Do not remove the tray’s arm back and forth. Do not move the tray’s gripper up
and down. These movements could damage the tray arm. If you need to move
the arm, turn it in a clockwise or counterclockwise direction.
To install a tray, you must first install the tray mounting bracket. The mounting
bracket for the tray attaches to the injector mounting bracket and the GC. The
instructions and hardware are packaged together with the tray.
Quadrant
Arm
Gripper
Gripper jaws
Sample vial
