Operation
Multitechnique ChemStation control with a 6890 Series GC
88
Injection Volume
Injection Volume is the volume (in µl) of sample you want to be injected.
The number of stops is automatically calculated based on your entry for
injection volume and syringe size. You can indicate whether or not you are
using a Nanoliter Adapter at the Injector Configuration dialog box. (Click
on the Configure... button.) See Figure 50.
Syringe Size (5 µl or 10 µl)
Read-only display in this dialog box. You can modify the Syringe Size at
the Injector Configuration dialog box. (Click on the Configure... button.)
See Figure 50.

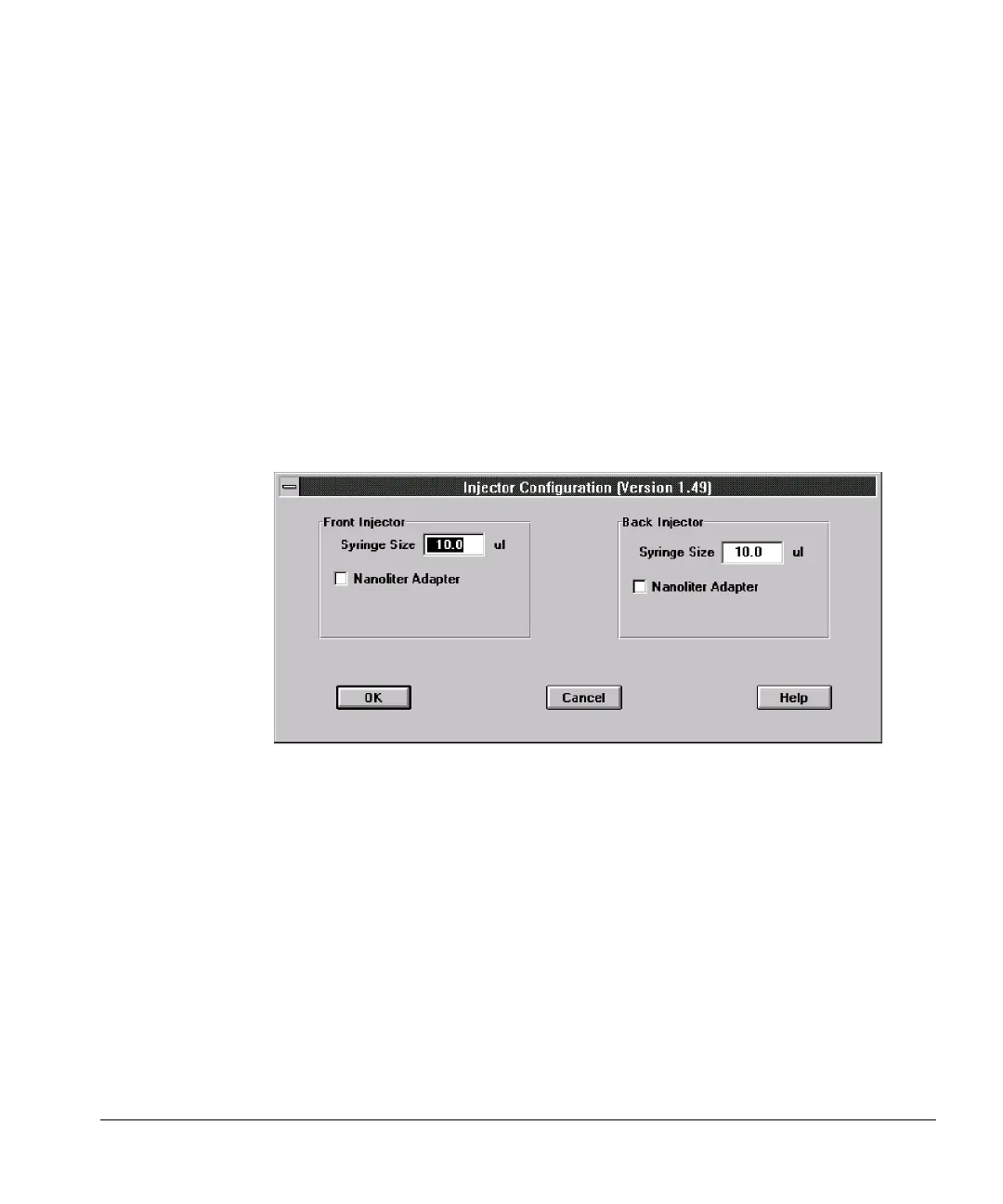

Figure 50. Injector Configuration dialog box
Extended Injector Parameters dialog box
Use the Extended Injector Parameters dialog box to specify additional injector
parameters for the front and/or back injectors (depending on your selection at
the Injector Parameters dialog box).
With the 5890 GC, there is also an On-Column Injection check box.
