Special Topics
Performing cool on-column injection onto 250-µm and 320-µm columns
175
• The firmware in the controller evaluates your commands. If there are no
syntax errors, the tray responds with A NO ERRORS. If there are syntax
errors, the tray responds with A and a description of the error.
Syntax and description

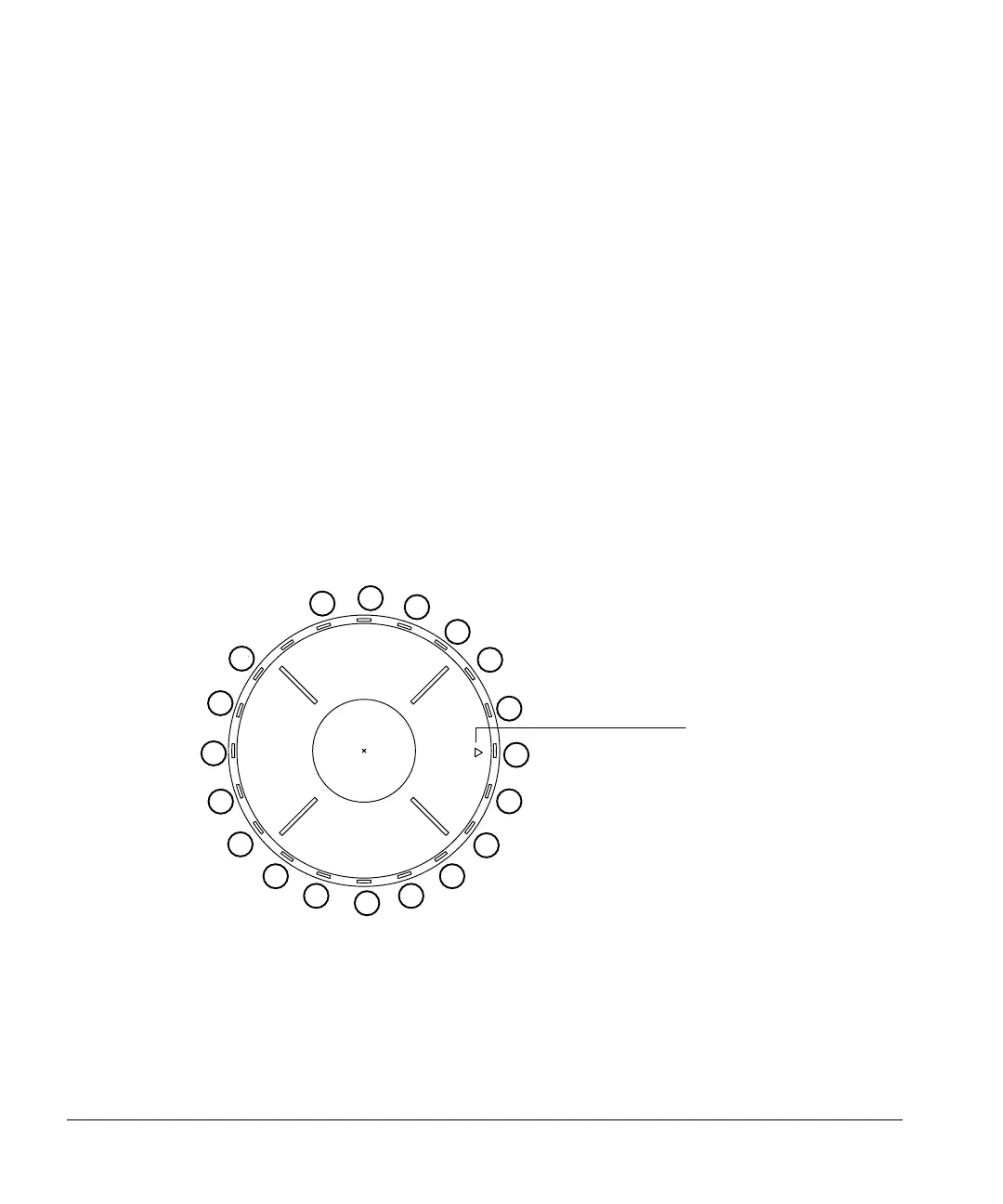

Figure 90. Map of locations on outer row of the tray
MOVE x,y Picks up the bottle in position x and places it in position y.
Positions x and y may be:
• Numbers in the range 1 to 100, referring to bottle
positions in the sample tray.
• FRONT or REAR, referring to position 1 in the front or
rear injector turret.
• EXT1 through EXT19, referring to positions in a
circle beyond the outer row of bottles in the tray.
Figure 6-18 maps these locations.
FRONT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Slide base into
slot on support
To Next Page
