ACPRSLTS Adjacent Channel Power Measurement Results
Query Response

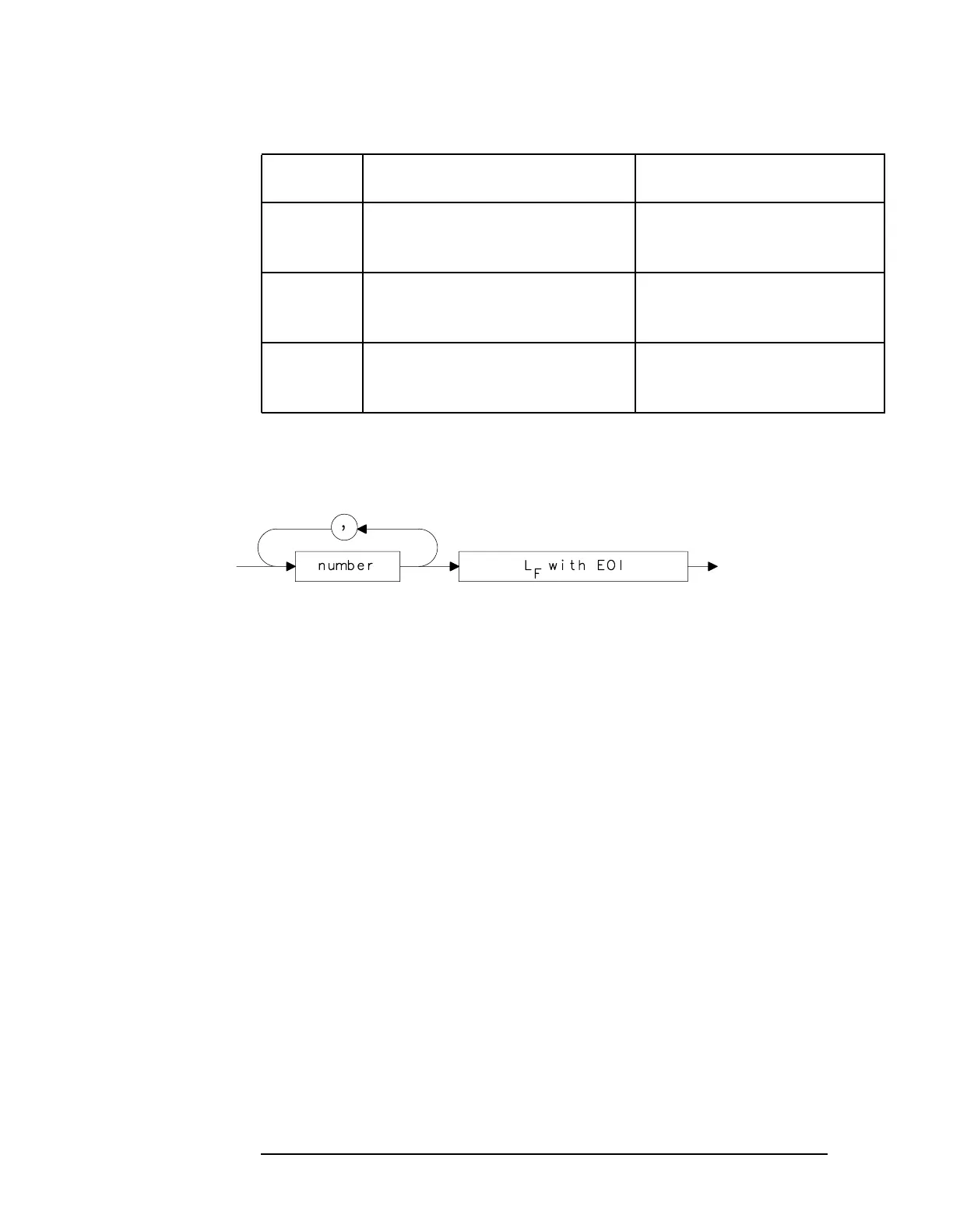

Figure 7-33 ACPRSLTS Query Response
Example
10 OUTPUT 718;"ACPALTCH 0;"
20 OUTPUT 718;"ACPMETHOD BURST;"
30 OUTPUT 718;"ACPMEAS;"
40 OUTPUT 718;"ACPRSLTS?;"
50 ENTER 718;Low_random;Low_impulse;Low_weight;Low_avg;
Up_random;Up_impulse;Up_weight;Up_avg
60 END
10 OUTPUT 718;"ACPALTCH 2;"
20 OUTPUT 718;"ACPMETHOD ANALOG;"
30 OUTPUT 718;"ACPMEAS;"
40 OUTPUT 718;"ACPRSLTS?;"
50 ENTER 718;Low0_ratio;Up0_ratio
60 ENTER 718;Low1_ratio;Up1_ratio
70 ENTER 718;Low2_ratio;Up2_ratio
80 END
Table 7-4 Alternate Channels
Alternate
Channels
Channels Used For Calculation Number of Values Returned
0 main channel 1 set
lower adjacent channel (see Table 7-1 on page 372)
upper adjacent channel
1 above channels plus: 2 sets
first alternate lower channel (see Table 7-1 on page 372)
first alternate upper channel
2 above channels plus: 3 sets
second alternate lower channel (see Table 7-1 on page 372)
second alternate upper channel
