Agilent Technologies 8563E User Manual

Chapter 7 641
Language Reference
TRIGPOL Trigger Polarity
TRIGPOL Trigger Polarity
Syntax

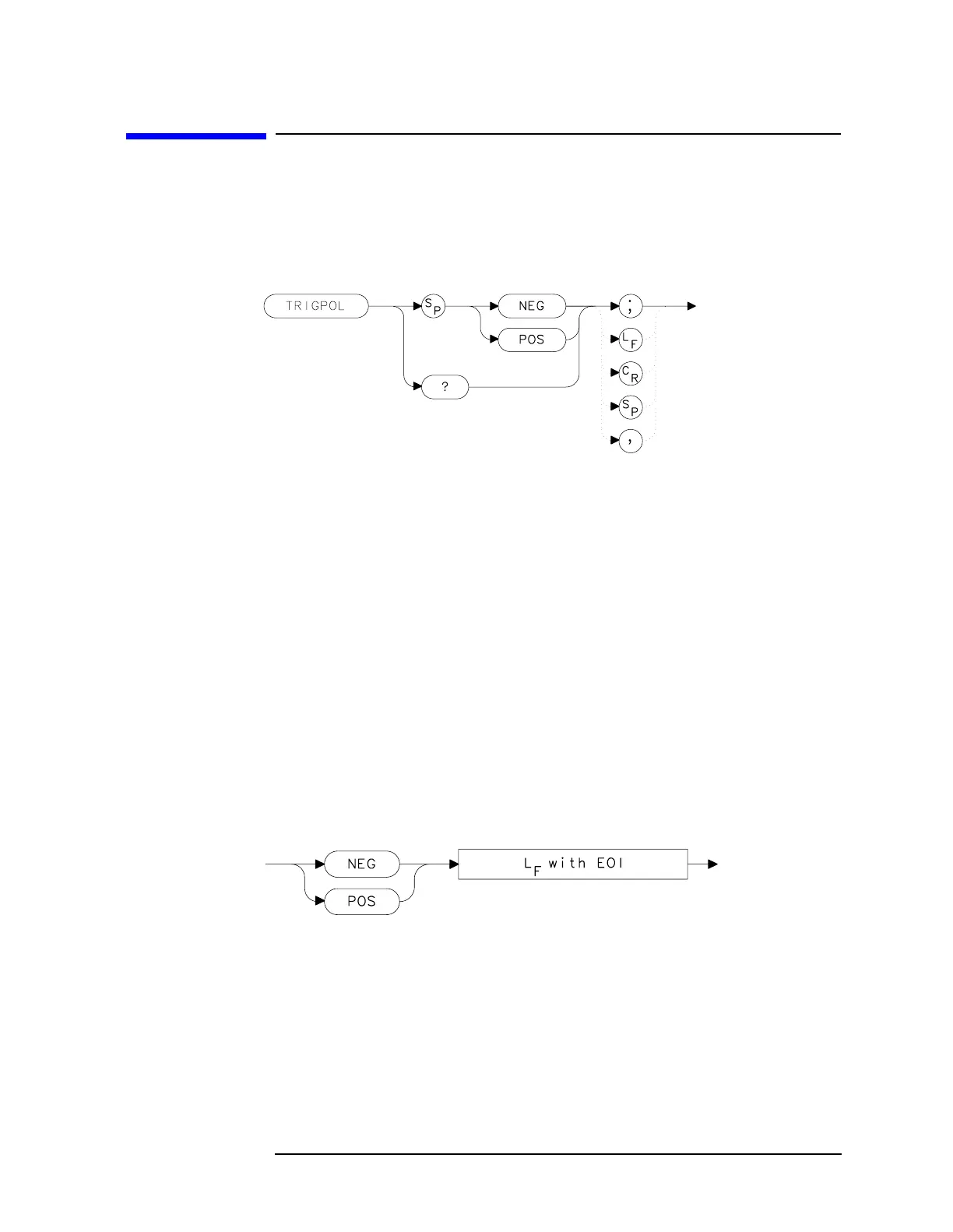

Figure 7-283 TRIGPOL Syntax
Description
Selects the edge (positive or negative) of the trigger input that causes
the trigger event. TRIGPOL is available in all trigger modes. The
trigger polarity (TRIGPOL) will always match the gate polarity. For
example, if you set GP to positive, TRIGPOL will automatically be set
to positive also.
Preset State
Positive
Query Response
Figure 7-284 TRIGPOL Query Response
Example
OUTPUT 718;"TRIGPOL POS;"
