Agilent Technologies 8563E User Manual

502 Chapter7
Language Reference
MBIAS Mixer Bias
Parameters
number real from 0.01 mA to −0.01 mA.
UP or DN increments of 0.1 mA.
Preset State
Off
Query Response

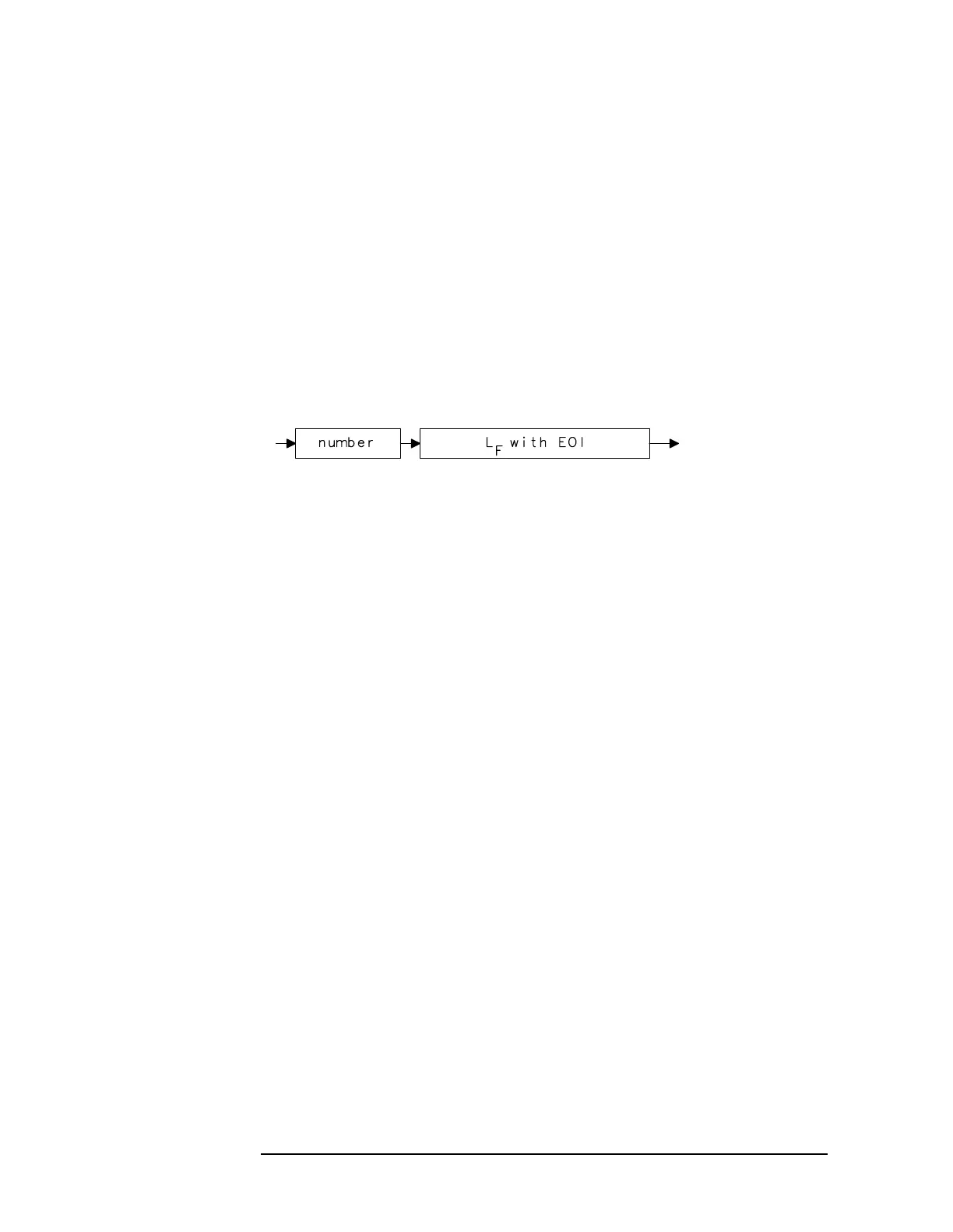

Figure 7-148 MBIAS Query Response
Example
10 OUTPUT 718;"IP;MXRMODE EXT;FULBAND U;"
20 OUTPUT 718;"MKN EP;"
30 PRINT "MOVE THE MARKER TO THE DESIRED SIGNAL"
40 PRINT "PRESS HOLD THEN PRESS CONTINUE"
50 PAUSE
60 INPUT "ENTER THE BIAS VALUE, IN MA",Bias
70 OUTPUT 718;"MBIAS ";Bias;"MA;"
80 OUTPUT 718;"MBIAS EP;"
90 PRINT "ADJUST BIAS IF NECESSARY"
100 PRINT "PRESS HOLD THEN PRESS CONTINUE"
110 PAUSE
120 OUTPUT 718;"SIGID AUTO;TS;DONE?;"
130 ENTER 718;Done
140 PRINT Done
150 END
