590 Chapter7
Language Reference
SAVET Save Trace
SAVET Save Trace
Syntax

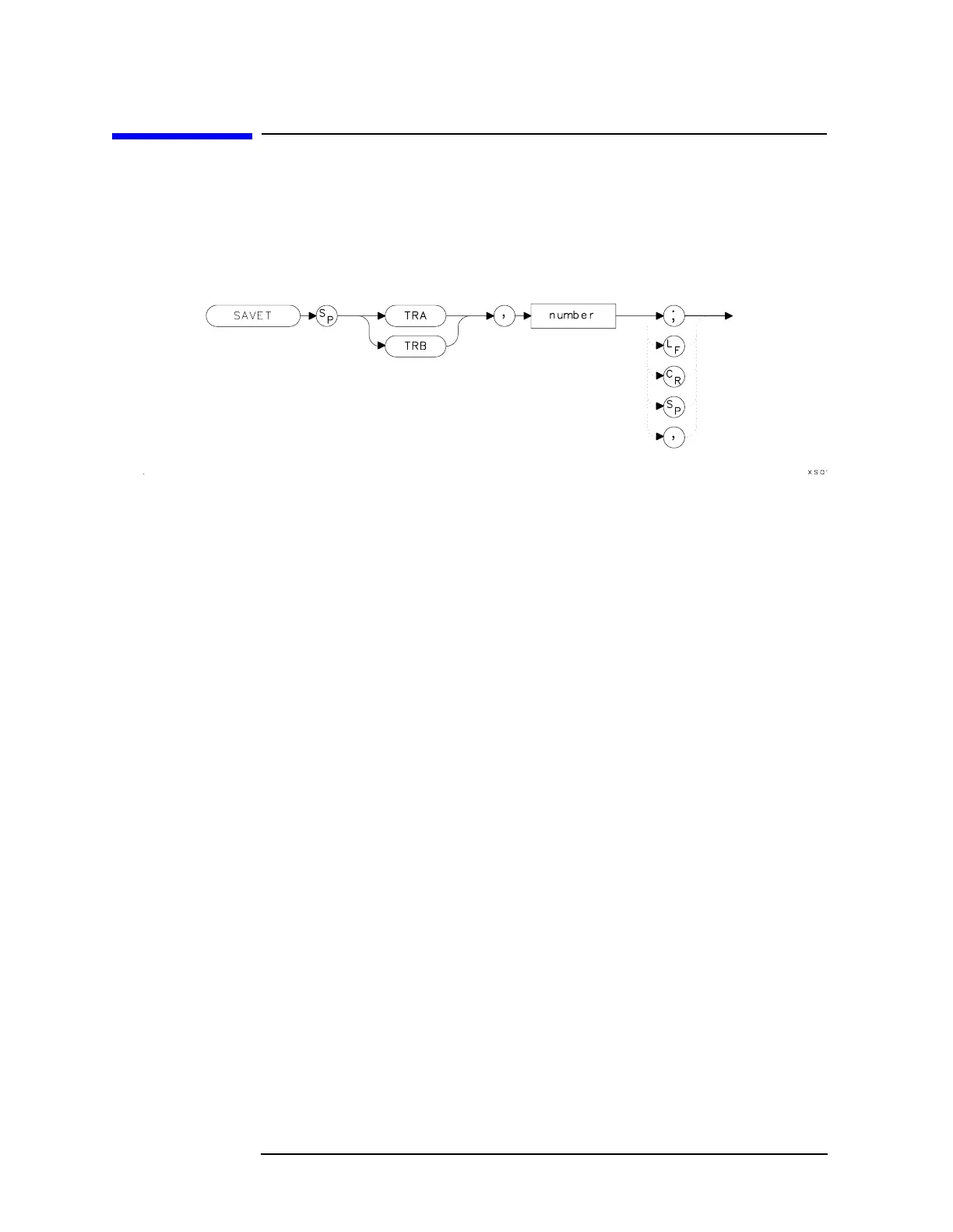

Figure 7-235 SAVET Syntax
Description
The SAVET command saves the selected trace in the specified trace
register. There is a total of eight save-trace registers in which to store
trace data from traces A and B. Be careful not to overwrite previously
saved trace data.
Parameters
TRA stores the contents of trace A.
TRB stores the contents of trace B.
number integer from 0 to 7. If a Agilent 85620A mass memory
module is attached to the spectrum analyzer, trace
registers 5, 6, and 7 are used by the Agilent 85620A
mass memory module. Numbers less than zero default
to zero; numbers greater than seven default to 7.
Example
10 INPUT "SELECT THE TRACE YOU WISH TO SAVE (TRA OR
TRB)",Save_trace$
20 INPUT "SELECT THE REGISTER NUMBER",Reg_number
30 OUTPUT 718;"SAVET ";Save_trace$;", ";Reg_number;";"
40 END
