646
Chapter
7
Language Reference
V
A
V
G Video Average
P
arameters
number
integer from 1 to 999.
UP or DN
increments by 1.
Preset State
100, off
Query Response

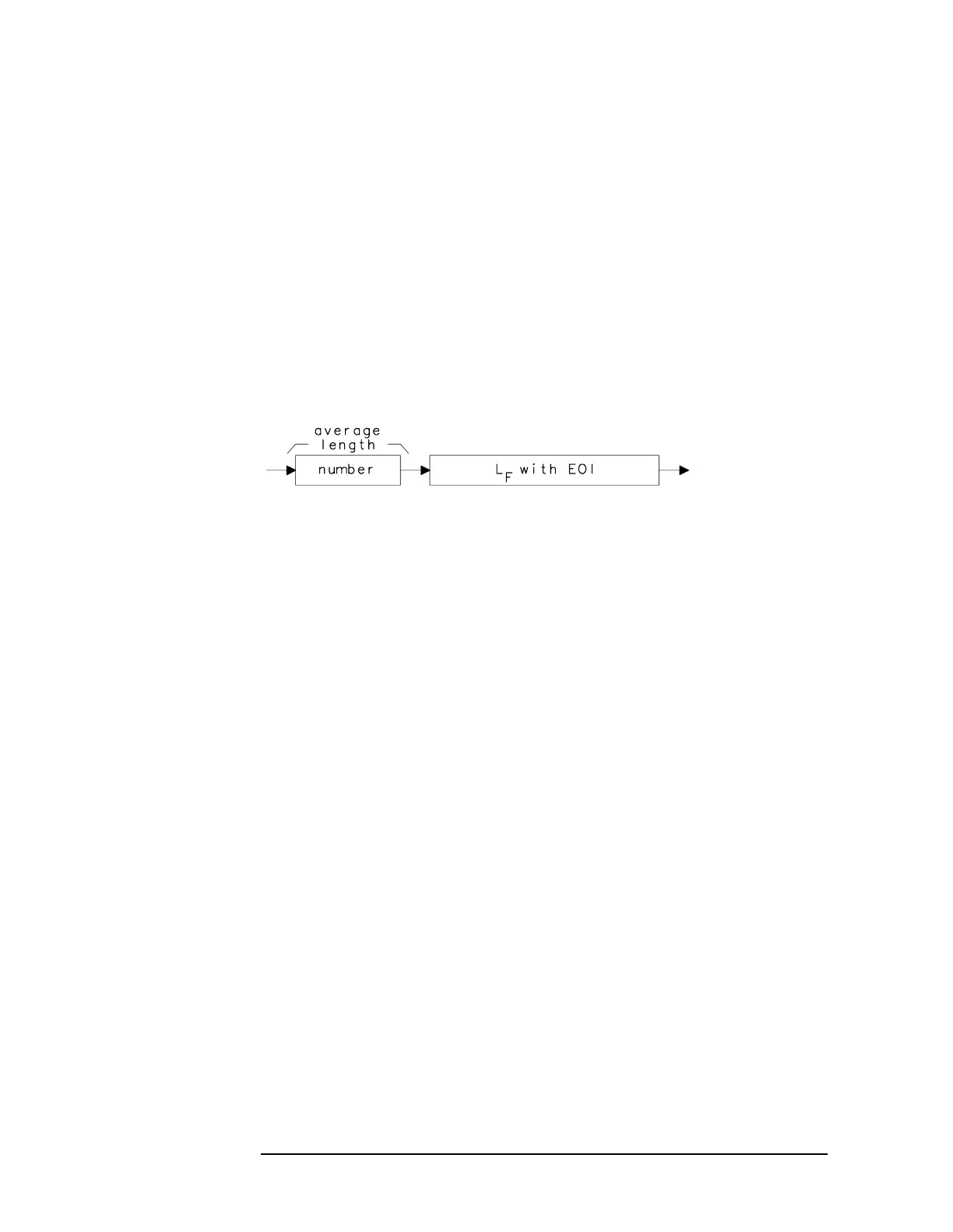

Figure 7-288
V
A
VG Query Response
Example
10
OUTPUT
718;"SNGLS;VAVG
20;TS;"
20
END
