482
Chapter
7
Language Reference
GA
TE Gate

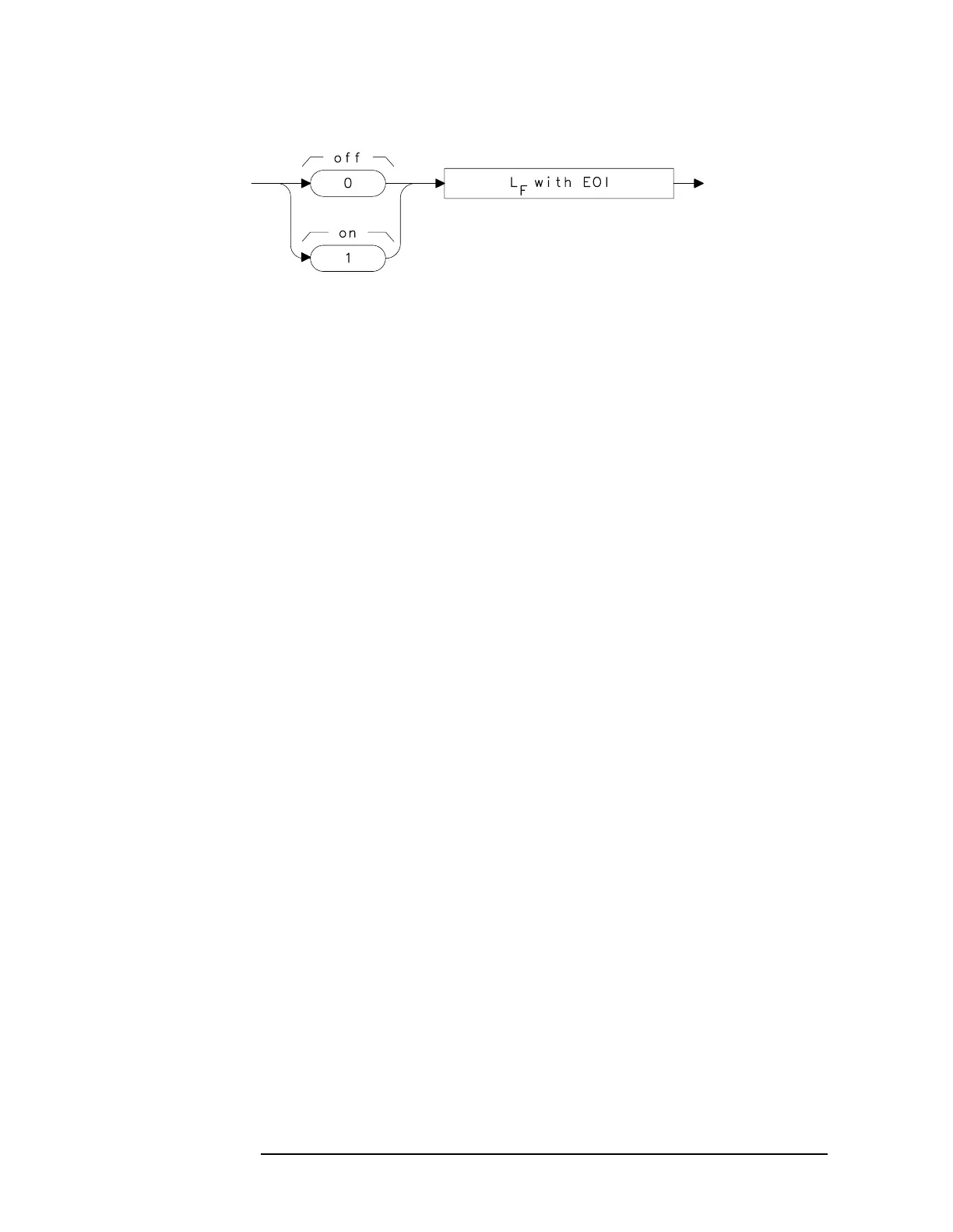

Figure 7-123
GA
TE Query Response
Example
OUTPUT
718;"GATE
ON;"
Turns on the gating.
481
483
