Agilent Technologies 8563E User Manual

546 Chapter7
Language Reference
NORMLIZE Normalize Trace Data
Query Response

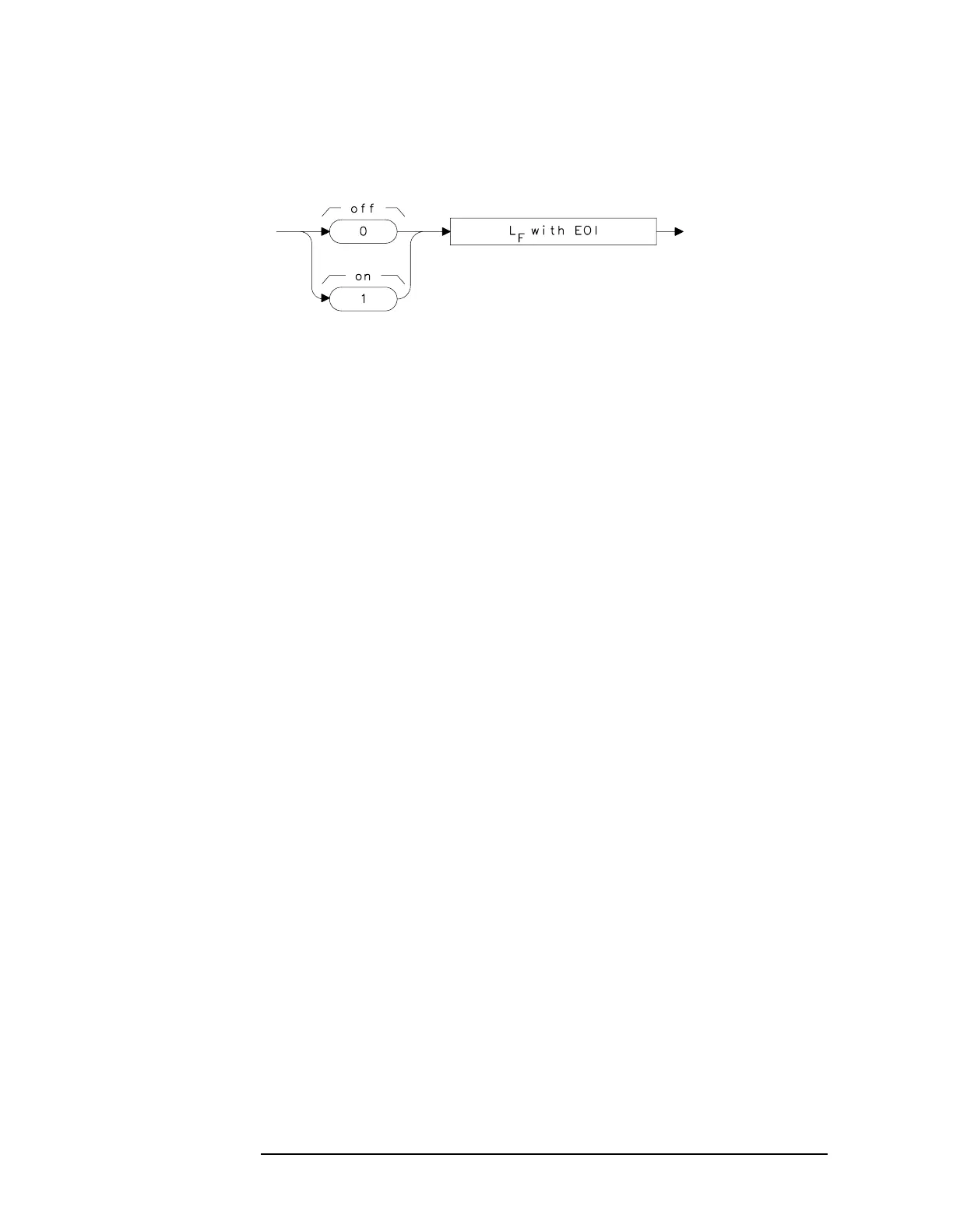

Figure 7-195 NORMALIZE Query Response
Example
The following example is for use with an 8560E/EC Option 002 only.
10 OUTPUT 718;"IP;SNGLS;"
20 OUTPUT 718;"FA 300KHZ;FB 1GHZ;"
30 OUTPUT 718;"SRCPWR ON;"
40 OUTPUT 718;"SWPCPL SR;"
50 OUTPUT 718;"RB 100KHZ;"
60 OUTPUT 718;"SRCTKPK;DONE?;"
70 ENTER 718;Done
80 PRINT "CONNECT THRU. PRESS CONTINUE WHEN READY TO STORE
."
90 PAUSE
100 OUTPUT 718;"TS;DONE?;"
110 ENTER 718;Done
120 OUTPUT 718;"STORETHRU;"
130 OUTPUT 718;"TS;DONE?;"
140 ENTER 718;Done
150 OUTPUT 718;"NORMLIZE ON;"
160 OUTPUT 718;"TS;DONE?;"
170 ENTER 718;Done
180 LOCAL 718
190 END
