Chapter 7 575
Language Reference
RCLS Recall State
RCLS Recall State
Syntax

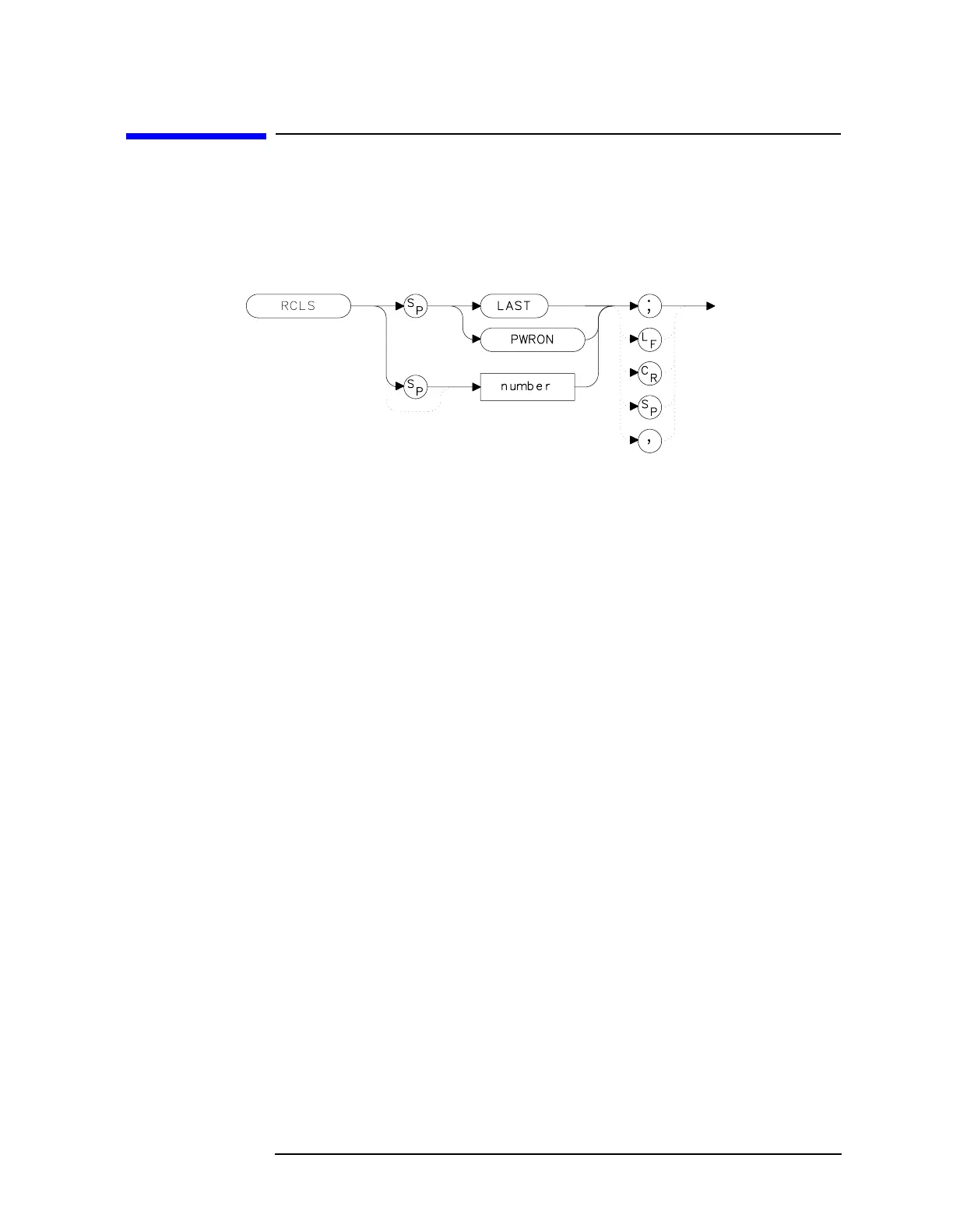

Figure 7-222 RCLS Syntax
Description
The RCLS command recalls to the display a previously saved
instrument state. See SAVES.
Parameters
number integer from 0 to 9. Registers 8 and 9 are used by the
normalization routine. Numbers less than zero default
to zero; numbers greater than nine default to nine.
LAST recalls the instrument state that existed previous to
executing the IP command or switching the spectrum
analyzer off.
PWRON sets the instrument state to the same state that
occurred when the spectrum analyzer was switched on.
This state was originally saved using the SAVES
command.
Example
10 OUTPUT 718;"SAVES 7;"
20 OUTPUT 718;"IP;"
30 OUTPUT 718;"RCLS 7;"
40 END
