LG Logarithmic Scale
LG Logarithmic Scale
Syntax

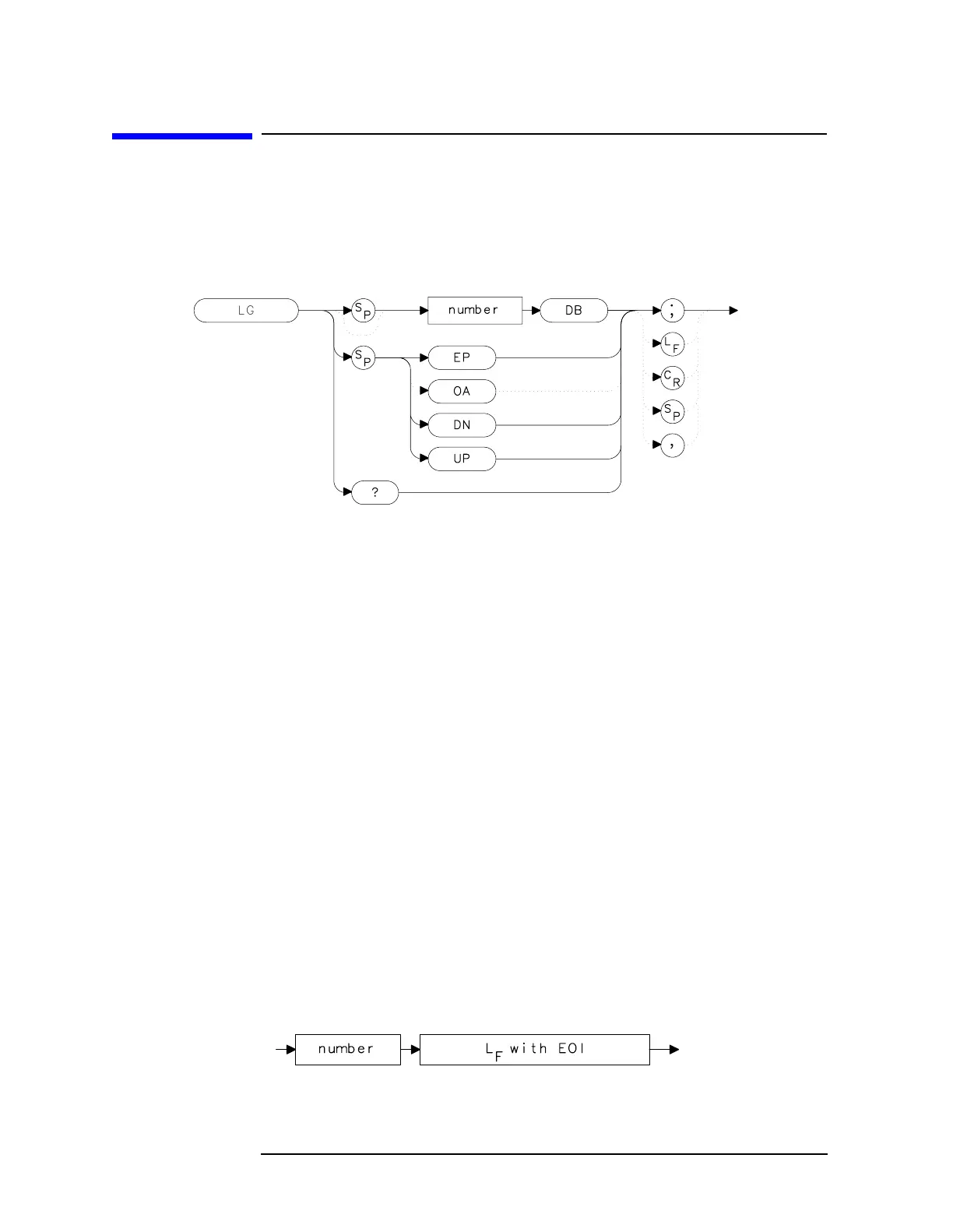

Figure 7-144 LG Syntax
Description
The LG command selects a 1, 2, 5, or 10 dB logarithmic amplitude scale.
When in linear mode, querying LG returns a "0". The 1 dB per division
and 5 dB per division scales are not available for sweep times less than
30 ms.
Parameters
number 1, 2, 5, or 10.
UP or DN increments in a 1, 2, 5, 10 sequence.
Preset State
10 dB per division
Query Response
Figure 7-145 LG Query Response
