630 Chapter7
Language Reference
TDF Trace Data Format
TDF Trace Data Format
Syntax

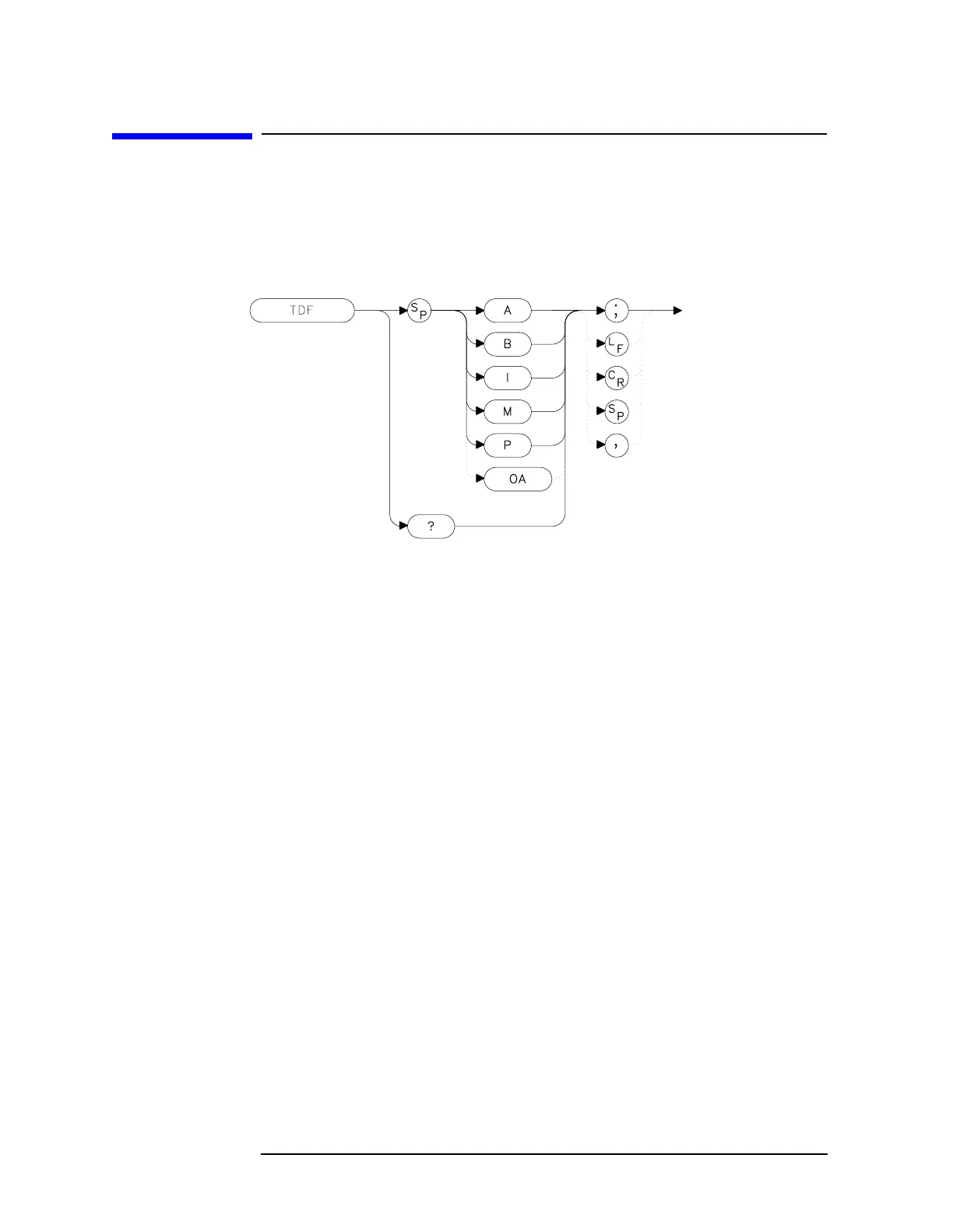

Figure 7-274 TDF Syntax
Description
The TDF command selects the format used to input and output trace
data (see the TRA/TRB command or refer to Chapter 5 for more
information about trace data formats). You must specify the desired
format when transferring data from the spectrum analyzer to a
computer; this is optional when transferring data to the analyzer.
Parameters
A specifies A-block data format.
B specifies binary data format.
I specifies I-block data format.
M specifies ASCII data format.
P specifies parameter data format. Numbers are in Hz,
volts, watts, dBm, dBmV, dBµV, dBV, or seconds.
