SRCFINTK Fine Tracking Adjust
Query Response

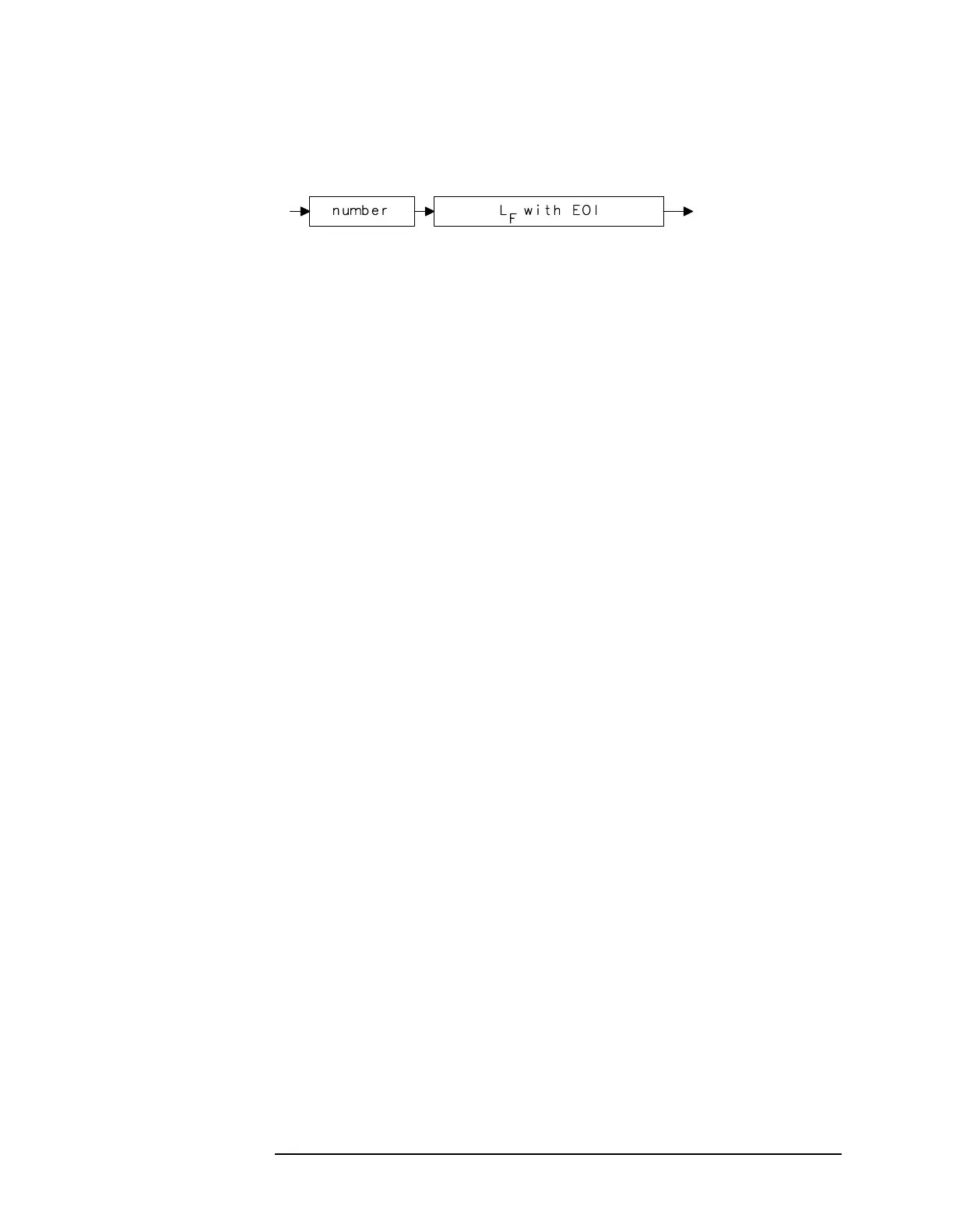

Figure 7-250 SRCFINTK Query Response
Example
10 OUTPUT 718;"IP;"
20 OUTPUT 718;"FA 300KHZ;FB 1GHZ;"
30 OUTPUT 718;"SRCPWR ON;"
40 OUTPUT 718;"SWPCPL SR;RB 10KHZ;"
50 OUTPUT 718;"TS;DONE?;"
60 ENTER 718;Done
70 OUTPUT 718;"SRCCRSTK EP;"
80 PRINT "ADJUST TRACKING (coarse adjust) USING KNOB ON
ANALYZER."
90 PRINT "PRESS [HOLD], THEN CONTINUE WHEN READY."
100 PAUSE
110 OUTPUT 718;"TS;DONE?;"
120 ENTER 718;Done
130 OUTPUT 718;"SRCFINTK EP;"
140 PRINT "ADJUST TRACKING (fine adjust) USING KNOB ON
ANALYZER."
150 PRINT "PRESS [HOLD], THEN CONTINUE WHEN READY."
160 PAUSE
170 OUTPUT 718;"TS;DONE?;"
180 ENTER 718;Done
190 PRINT "CONNECT THRU. PRESS CONTINUE WHEN READ TO STO
RE."
200 PAUSE
210 OUTPUT 718;"STORETHRU;"
220 OUTPUT 718;"TS;DONE?;"
230 ENTER 718;Done
240 OUTPUT 718;"NORMLIZE ON;"
250 OUTPUT 718;"TS;DONE?;"
260 ENTER 718;Done
270 OUTPUT 718;"NRPOS 8;TS;"
280 PRINT "RECONNECT DUT. PRESS CONTINUE WHEN READY."
290 PAUSE
300 LOCAL 718
310 END
