SS Center Frequency Step-Size
Parameters
number real from 25 to 26.50E+9 (hardware dependent).
UP or DN increments in a 1, 2, 5, 10 sequence.
Preset State
• 290 MHz, AUTO (8560E/EC)
• 650 MHz, AUTO (Agilent 8561E/EC)
• 1.32 GHz, AUTO (Agilent 8562E/EC)
• 2.65 GHz, AUTO (Agilent 8563E/EC)
• 4.0 GHz, AUTO (Agilent 8564E/EC)
• 5.0 GHz, AUTO (Agilent 8565E/EC)
Query Response

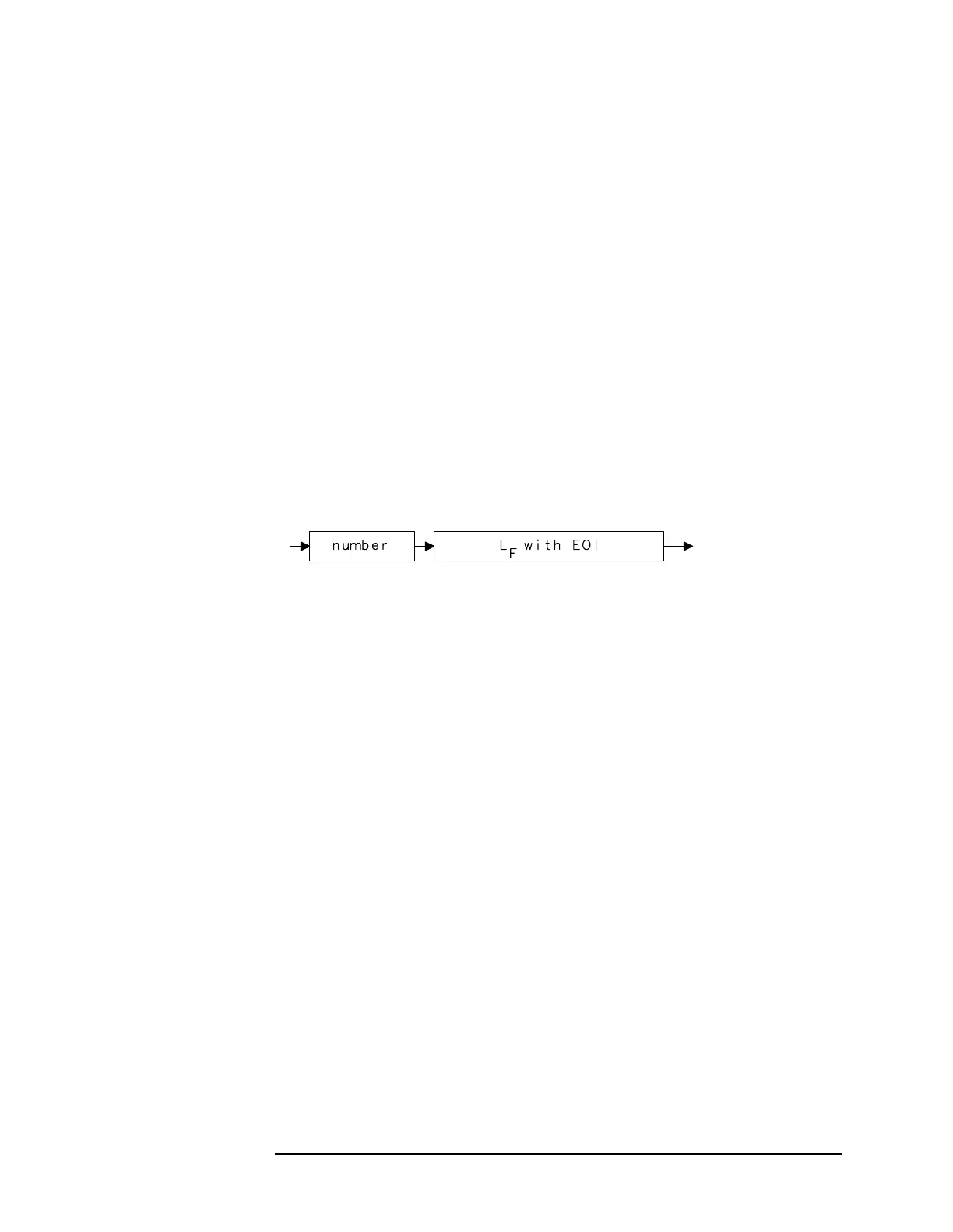

Figure 7-262 SS Query Response
Example
10 CLEAR 718
20 OUTPUT 718;"IP;SNGLS;CF300MHZ;SP 20MZ;TS;"
30 OUTPUT 718;"MKPK HI;MKRL;TS;MKF?;MKA?;"
40 ENTER 718 USING "K";Mk_freq,Mk_amp
50 OUTPUT 718;"SS ";Mk_freq;"HZ"
60 OUTPUT 718;"CF UP;TS;MKPK HI;MKA?;"
70 ENTER 718;Mk_ampl
80 PRINT "The fundamental is ";Mk_amp-MK_ampl;" db above t
he
first harmonic."
90 END
