Language Reference
GP Gate Polarity
GP Gate Polarity
Syntax

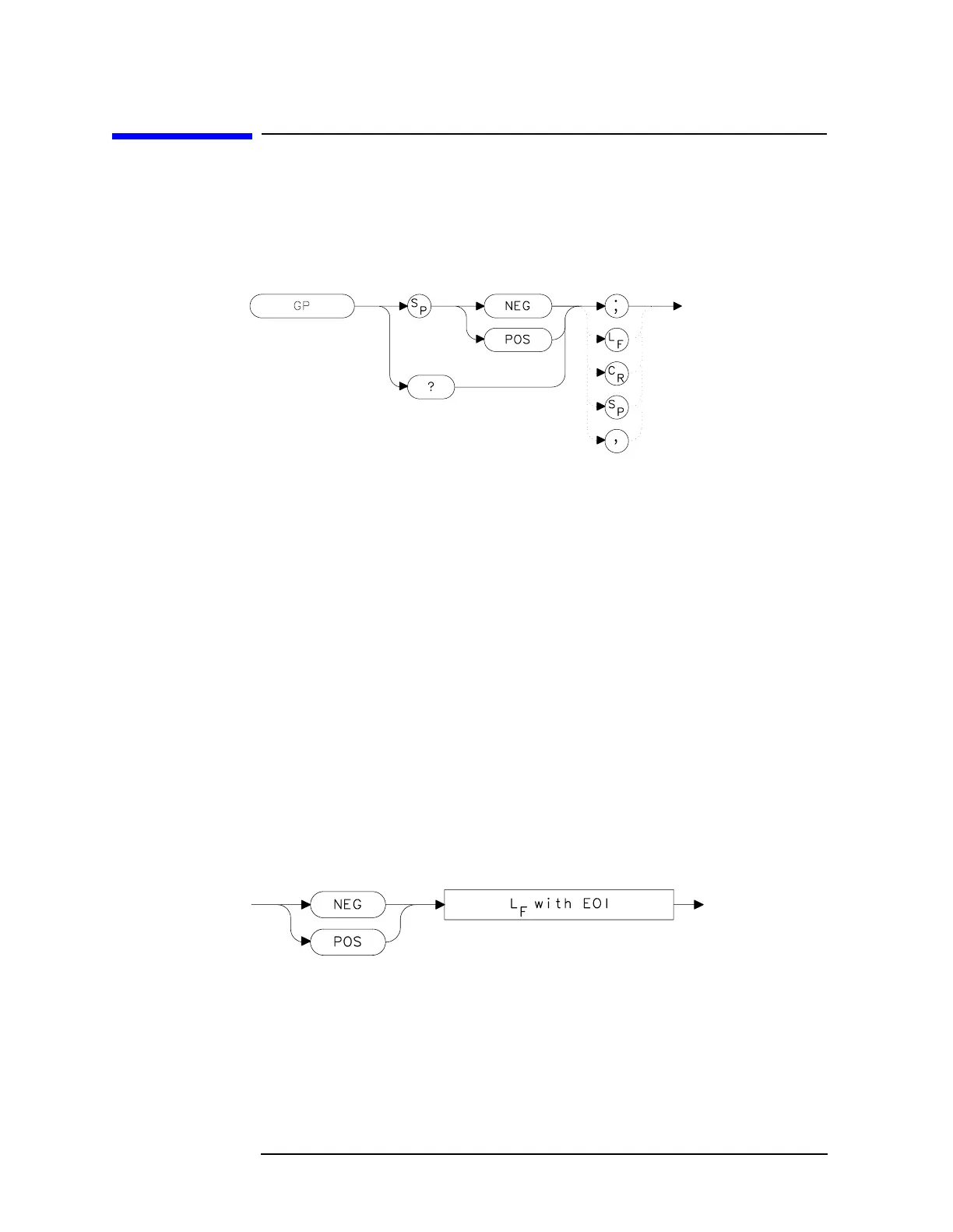

Figure 7-130 GP Syntax
Description
The GP command sets the polarity (positive or negative) for the gate
trigger. If the gate control (GATECTL) is in the edge mode, the gate
delay timer can be triggered on either a positive or negative edge of the
trigger input. If the gate control is in level mode and positive is chosen,
the gate will be on when the trigger input is high. If the gate control is
in level mode and negative is chosen, the gate will be on when the
trigger input is low.
Preset State
Positive
Query Response
Figure 7-131 GP Query Response
Example
OUTPUT 718;"GP POS;"
