Agilent Technologies 8563E User Manual

Chapter 7 649
Language Reference
VBR Video Bandwidth to Resolution Bandwidth Ratio
VBR Video Bandwidth to Resolution
Bandwidth Ratio
Syntax

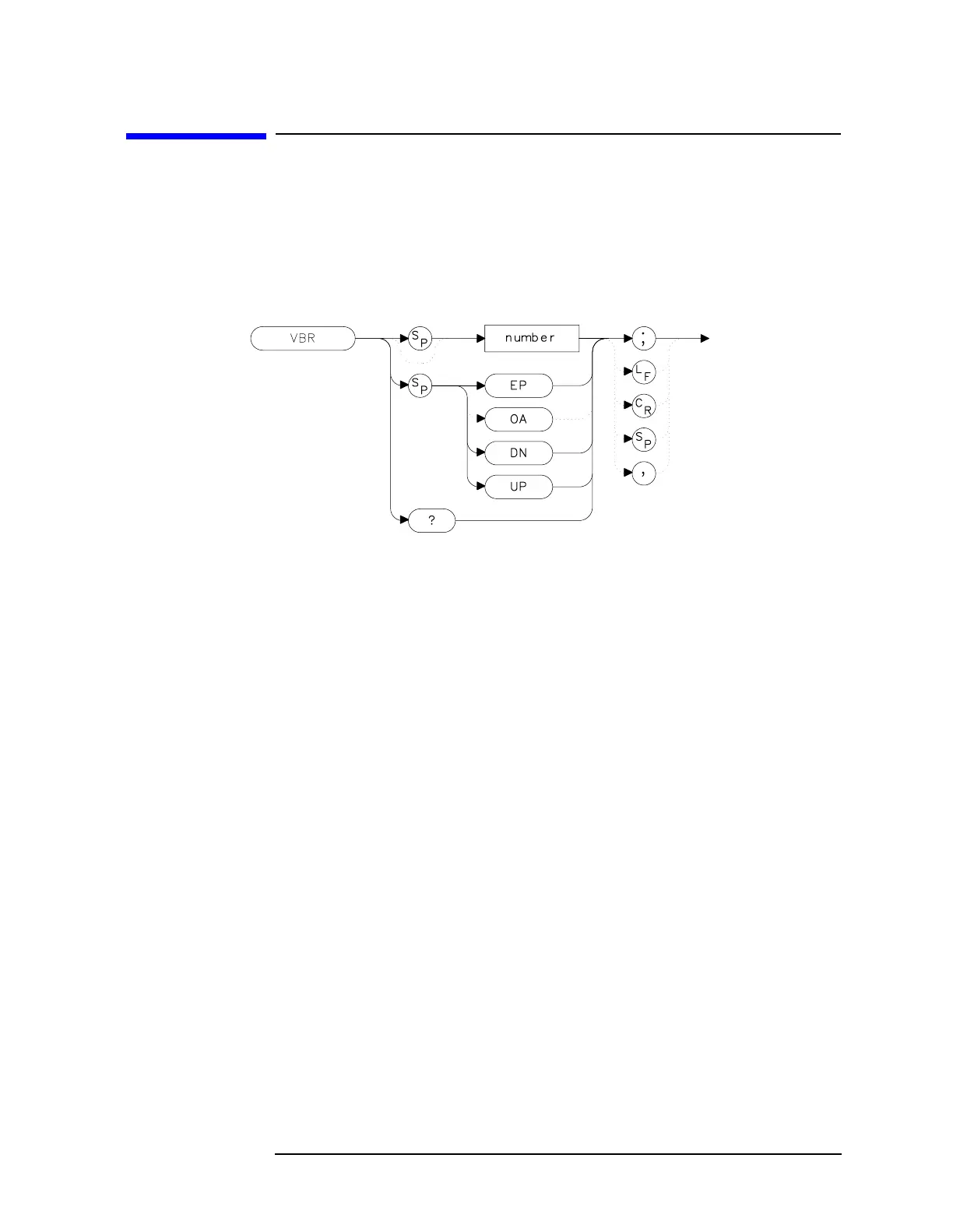

Figure 7-291 VBR Syntax
Description
The VBR command specifies the coupling ratio between the video
bandwidth and the resolution bandwidth. Thus, when the resolution
bandwidth is changed, the video bandwidth changes to satisfy the ratio.
When a new ratio is selected, the video bandwidth changes to satisfy
the new ratio — the resolution bandwidth does not change value.
Parameters
number real from 0.003 to 3.
UP or DN increments in a 1, 3, 10 sequence.
Preset State
1
