650 Chapter7
Language Reference
VBR Video Bandwidth to Resolution Bandwidth Ratio
Query Response

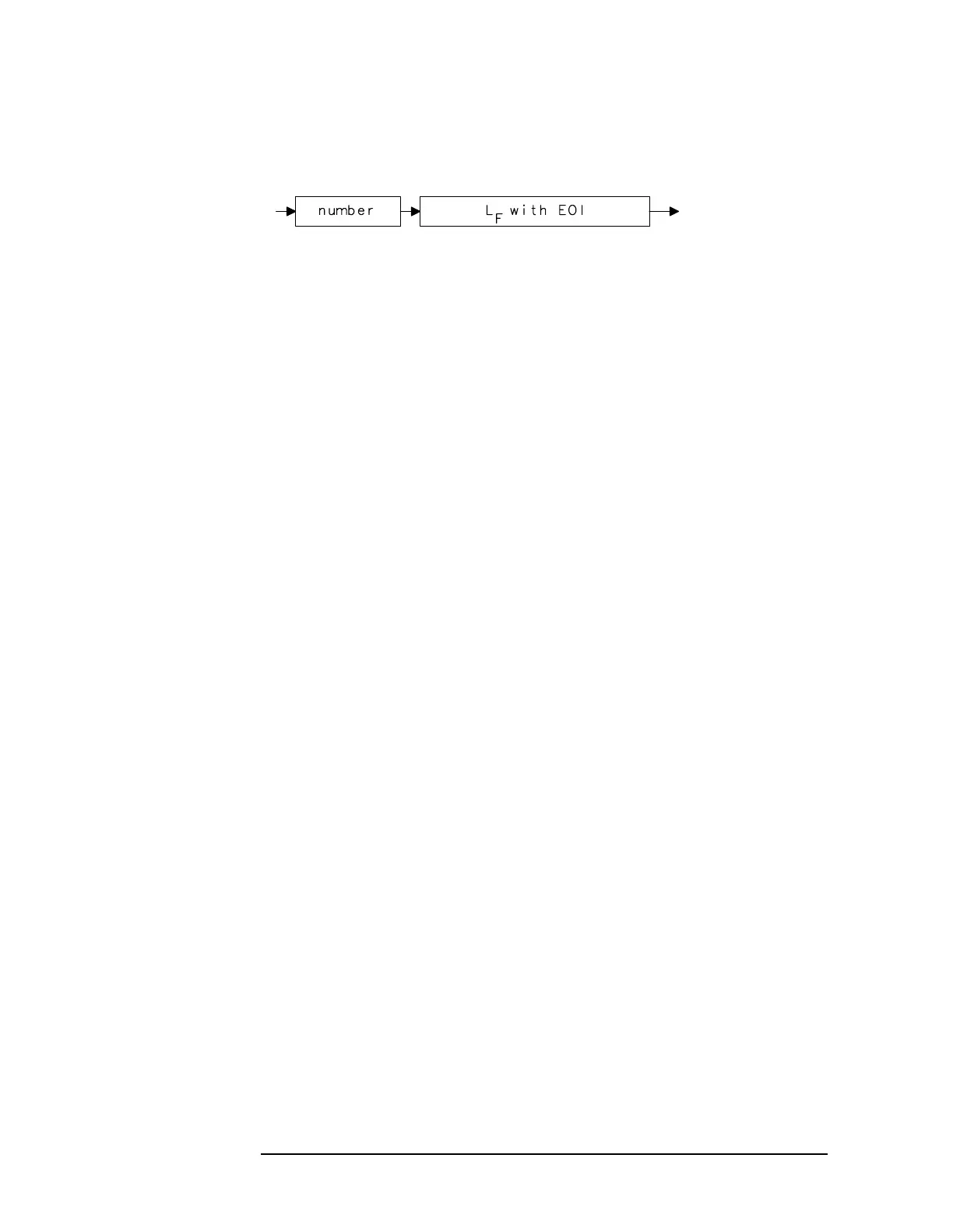

Figure 7-292 VBR Query Response
Example
10 OUTPUT 718;"IP;"
20 OUTPUT 718;"CF 1.2GHZ;SP 200MHZ;"
30 INPUT "SELECT THE VIDEO BANDWIDTH TO RESOLUTION BANDWID
TH
RATIO",B_ratio
40 OUTPUT 718;"VBR ";B_ratio;";"
50 INPUT "SELECT THE RESOLUTION BANDWIDTH, IN KHZ",B_width
60 OUTPUT 718;"RB ";B_width;"KHZ;"
70 OUTPUT 718;"VB?;"
80 ENTER 718;B_width
90 PRINT "THE VIDEO BANDWIDTH IS ",B_width,"HZ"
100 END
