Connecting/Disconnecting Patient Cables
10-4 Setting Up and Configuring the Heartstream XL

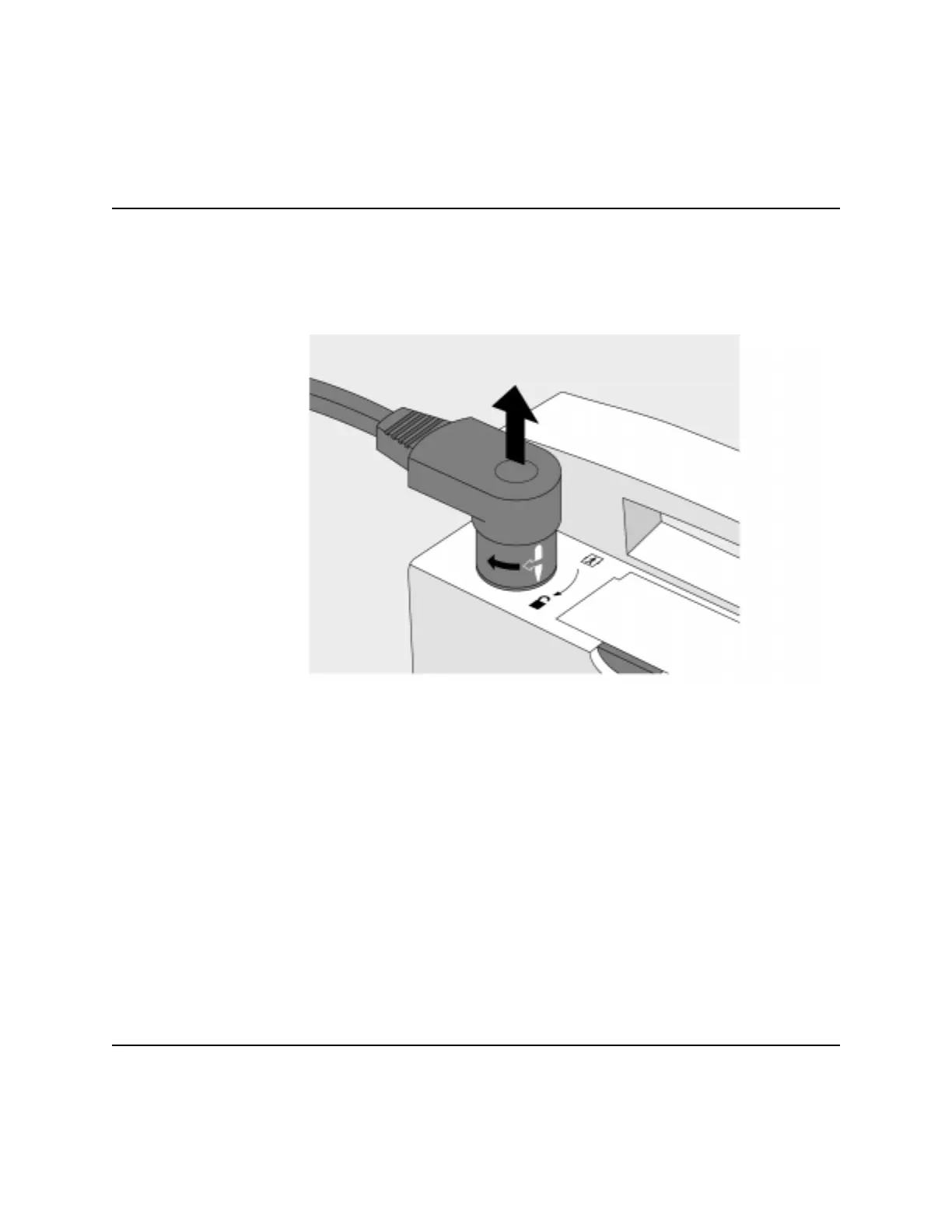

To disconnect the patient cable from the defibrillator:
1. Rotate the green locking mechanism on the cable in the direction of the
green arrow (clockwise), until it stops (as shown in Figure 10-2).
2. Hold the locking mechanism in this position as you pull the cable out.
)LJXUH'LVFRQQHFWLQJWKH3DGV3DGGOHV3DWLHQW&DEOH
