122 Agilent X-Series Signal Generators User’s Guide
Optimizing Performance
Using an Output Offset, Reference, or Multiplier
Using an Output Offset, Reference, or Multiplier
Setting an Output Offset
Using an output offset, the signal generator can output a frequency or amplitude that is offset
(positive or negative) from the entered value.
RF Output = entered value − offset value
Displayed Value = output frequency + offset value
To set an offset:
• Frequency: Press Freq > Freq Offset > offset value > frequency unit.
• Amplitude: Press Amptd > More > Amptd Offset > offset value > dB.
Examples
When using the signal generator as a local oscillator (LO), you can use the offset to display the
frequency of interest, as illustrated below:
Parameter
Example
#1
Example
#2
Example
#3
Comments
Entered (and displayed) Value: 300 MHz 300 MHz 2 GHz The entered value must be positive.
Offset: 50 MHz −50 MHz −1 GHz An offset value can be positive or negative.
Output Frequency: 250 MHz 350 MHz 3 GHz
The signal generator alerts you if the
output frequency or amplitude is out of range.

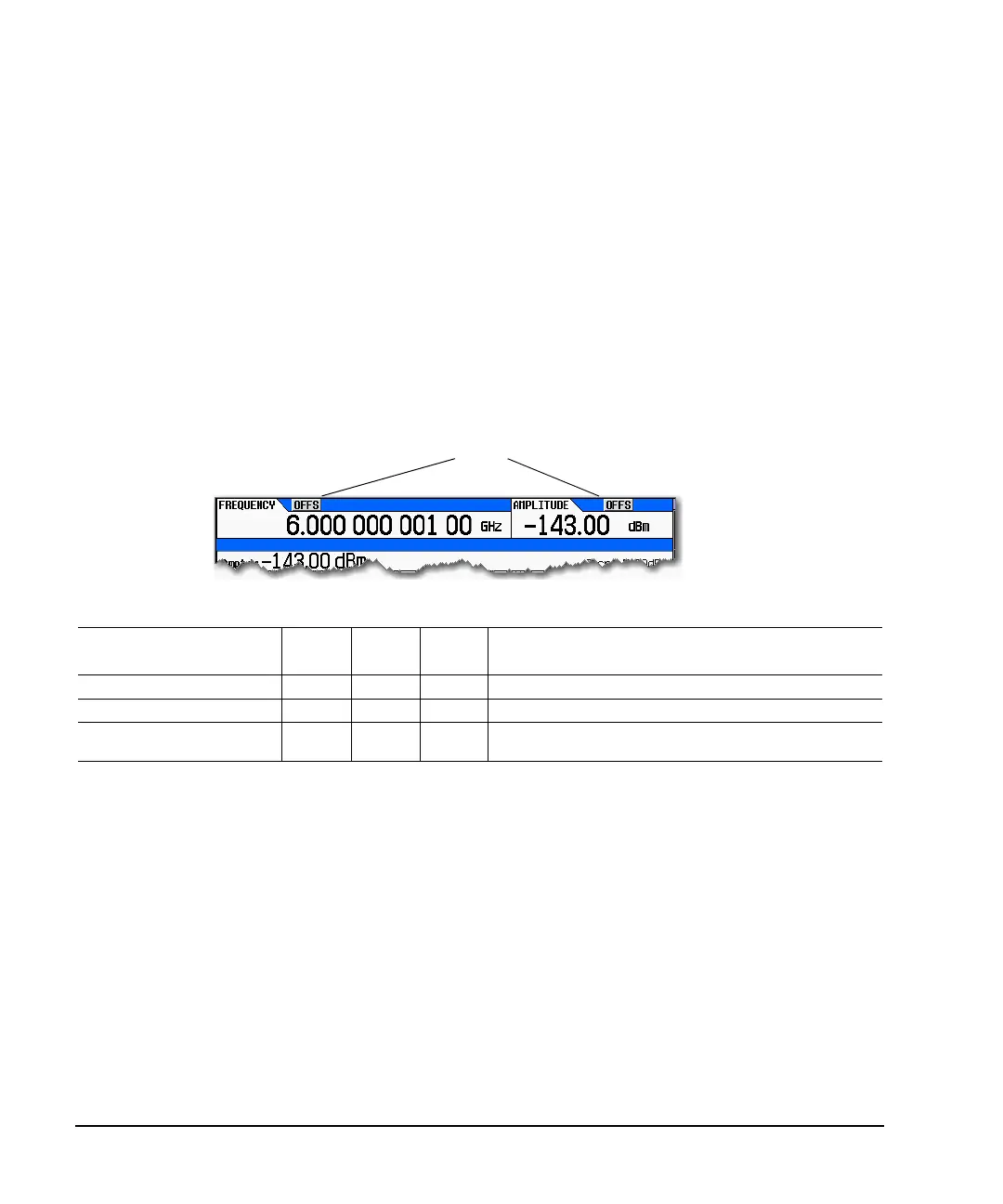

Indicates that an offset is on
