Agilent X-Series Signal Generators User’s Guide 35

Setting Preferences & Enabling Options

Remote Operation Preferences

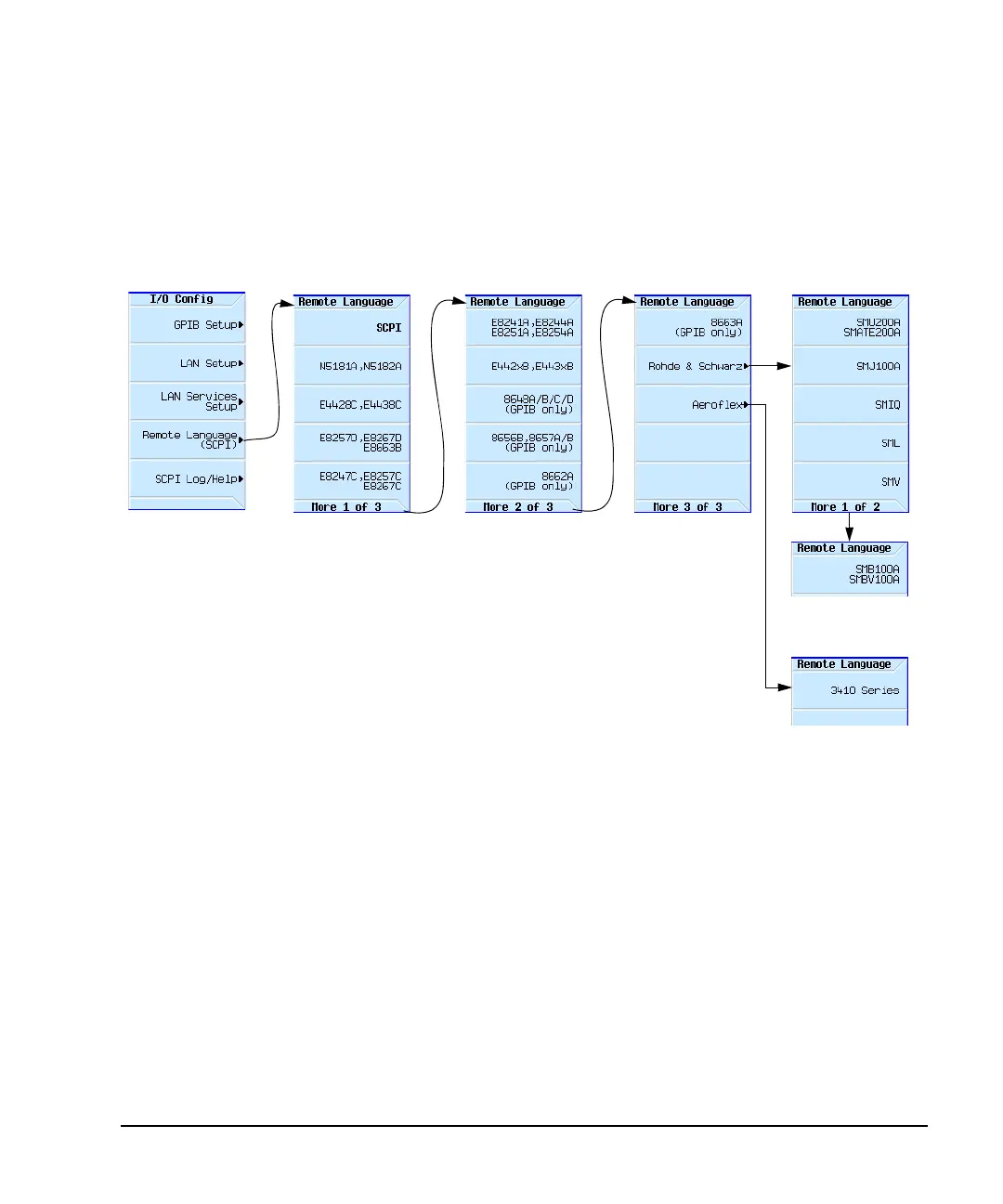

Configuring the Remote Languages

Figure 2-1 N5171B/72B/81B/82B

Utility > I/O Config

For details on each key, use key help

as described on page 44.

Select the desired Remote language.

Refer to the SCPI Command Reference.
