Agilent X-Series Signal Generators User’s Guide 271
Digital Signal Interface Module (Option 003/004)
Operating the N5102A Module in Output Mode
Choosing the Logic Type and Port Configuration

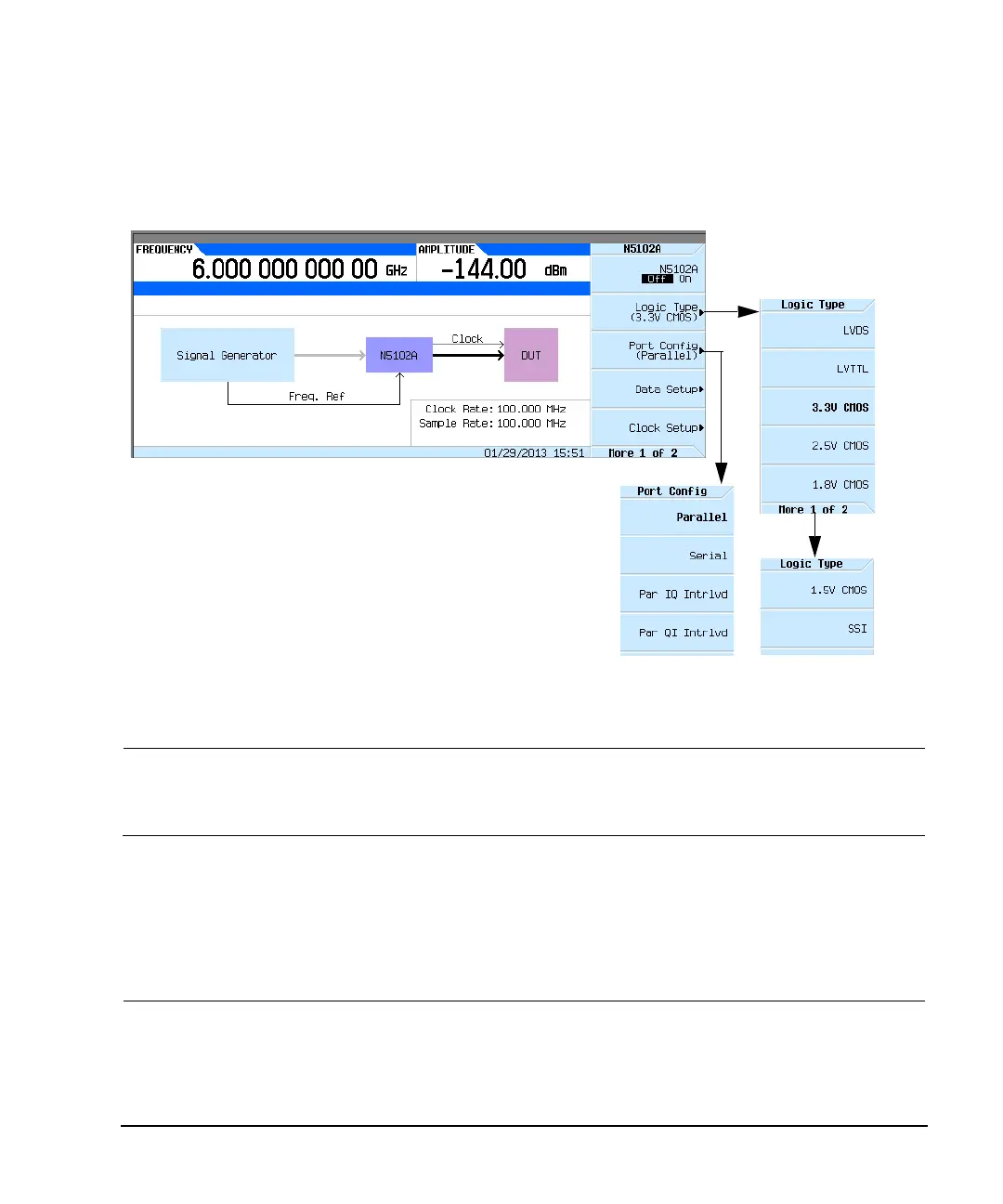

Figure 10-11Logic and Port Configuration Softkey Menus
1. Refer to Figure 10- 11. Press the Logic Type softkey.
From this menu, choose a logic type.
CAUTION Changing the logic type can increase or decrease the signal voltage level going to the
device under test. To avoid damaging the device and/or the N5102A module, ensure
that both are capable of handling the voltage change.
2. Select the logic type required for the device being tested.
A caution message is displayed whenever a change is made to the logic types, and a softkey
selection appears requesting confirmation.
3. Refer to Figure 10- 11. Press the Port Config softkey.
In this menu, select either a serial, parallel, or parallel interleaved data transmission.
NOTE Within the data and clock setup softkey menus, some softkeys function relative to the
current configuration. Softkeys that are grayed out are not available for the current
