148 Agilent X-Series Signal Generators User’s Guide
Basic Digital Operation (Option 653/655/656/657)
Storing, Loading, and Playing a Waveform Segment
Storing, Loading, and Playing a Waveform Segment
NOTE The MXG/EXG’s ARB Waveform File Cache is limited to 128 files. Consequently, once the 128
file cache limit has been reached, the waveform switching speed will be much slower for
additional files loaded into the volatile waveform memory (BBG).
Before using this information, you should be familiar with the signal generator’s file menus. If you
are not, refer to “Working with Files” on page 61 and familiarize yourself with that information.
See also: “Waveform Sequences” on page 151.
The signal generator has two types of waveform media: non–volatile (internal or USB), and volatile
(BBG). BBG media is also called “working” media, because before you can play, edit, or include a
waveform file in a sequence, the waveform file must be loaded into BBG media.

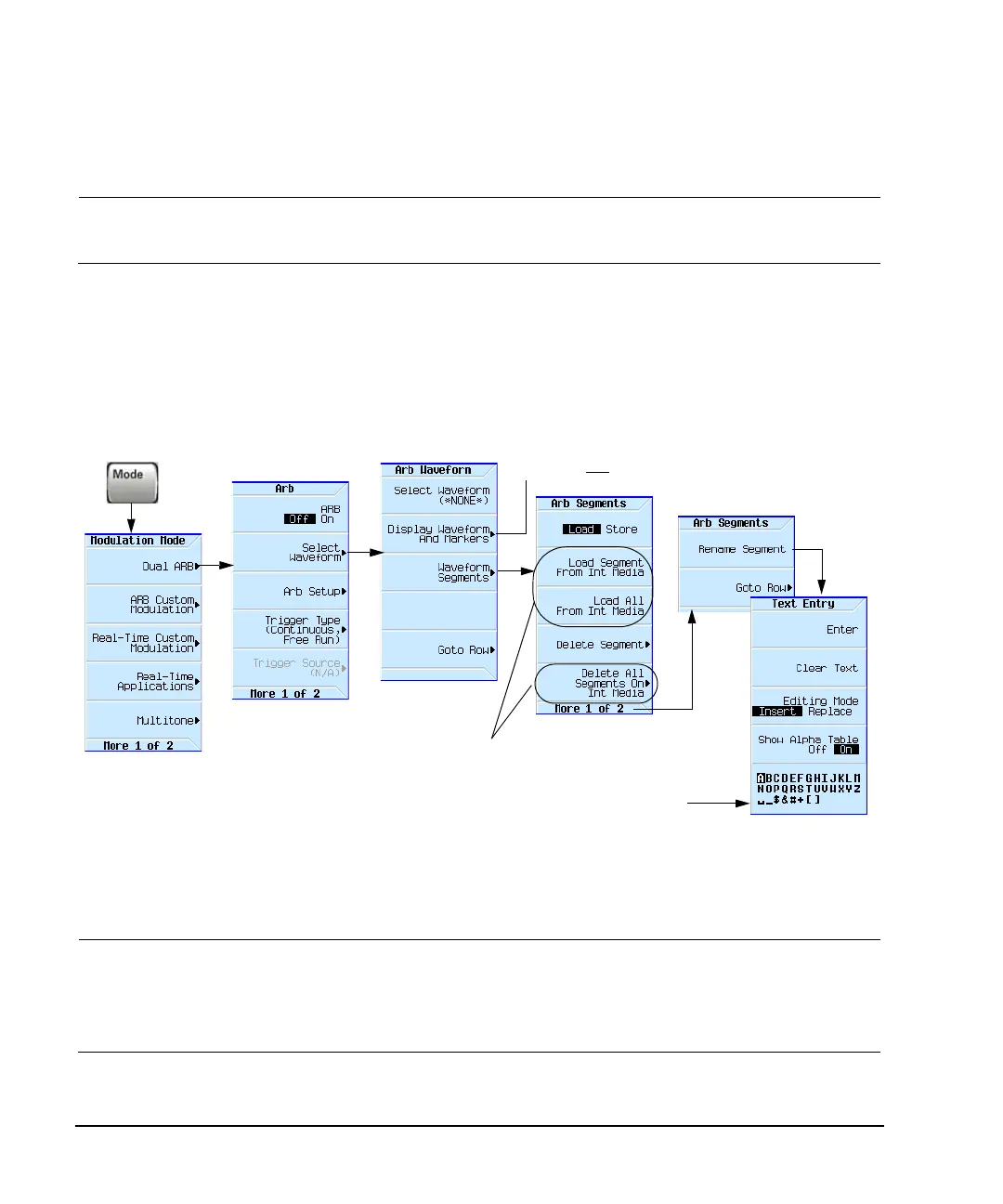

Figure 8-2 Waveform Segment Softkeys
Loading a Waveform Segment into BBG Media
Waveforms must reside in BBG media before they can be played, edited, or included in a sequence.
Cycling power or rebooting the signal generator deletes the files in BBG media.
NOTE Each time the instrument powers up, two factory–supplied segments are automatically
created in BBG media: RAMP_TEST_WFM and SINE_TEST_WFM.
There are additional sample waveforms that are available in the internal storage and that
can be loaded into memory. Refer to www.agilent.com and search on “Factory Default
N5182B” and “waveforms”.
1. Press Mode > Dual ARB > Select Waveform > Waveform Segments.
page 161
For details on each key, use key help
as described on page 44.
Note: When a sequence is selected, this key name
changes to Show Waveform Sequence Contents.
Use the arrow keys or knob to
highlight a letter or character.
These keys change to indicate the default media.
For information on selecting the default media,
see page 72.
To Next Page
