Agilent X-Series Signal Generators User’s Guide 373
Multitone and Two–Tone Waveforms (Option 430)
Using Two–Tone Modulation
8. Create a marker and place it on the peak of one of the two tones.
9. Create a delta marker and place it on the peak of the adjacent intermodulation product, which
should be spaced 10 MHz from the marked tone.
10. Measure the power difference between the tone and its distortion product.
You should now see a display that is similar to the one shown in Figure 14- 3 on page 373. Your
optimized two–tone signal can now be used to measure the IMD products generated by a
device–under–test.
Note that carrier feedthrough changes with time and temperature. Therefore, you will need to
periodically readjust your I and Q offsets to keep your signal optimized.

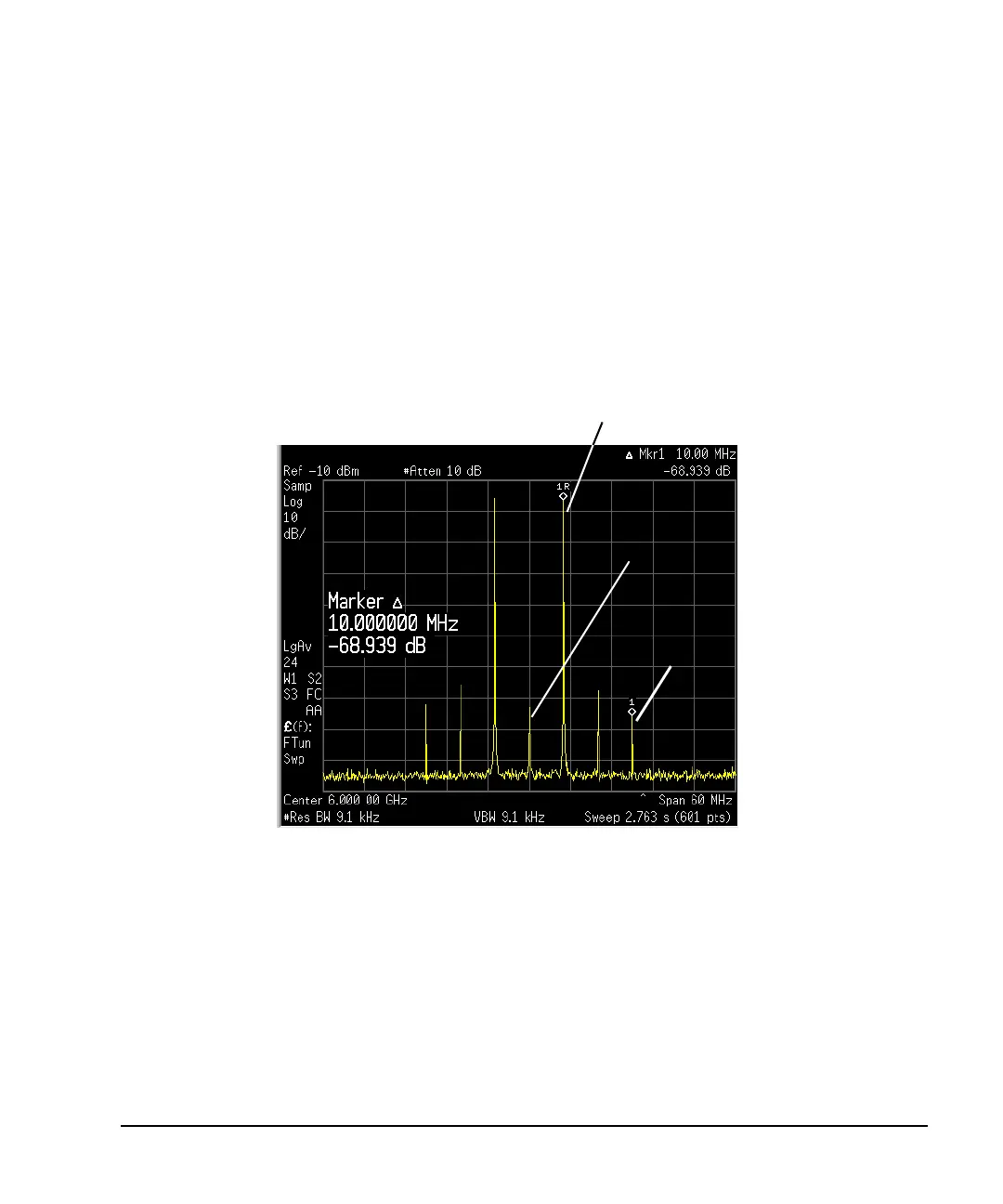

Figure 14-3
Changing the Alignment of a Two–Tone Waveform
This procedure describes how to align a two–tone waveform left or right, relative to the center
carrier frequency. Because the frequency of one of the tones is the same as the carrier frequency,
this alignment typically hides any carrier feedthrough. However, image frequency interference caused
by left or right alignment may cause minor distortion of the two–tone signal. This procedure builds
upon the previous procedure.
1. On the signal generator, press Mode > Two Tone > Alignment Left Cent Right to Left.
2. Press Apply Settings to regenerate the waveform.
Main Marker
Delta Marker
Minimized
Carrier
Feedthrough
For details on each
key, use key help as
described on page 44.
