Agilent X-Series Signal Generators User’s Guide 37

Setting Preferences & Enabling Options

Remote Operation Preferences

Configuring the Preset Languages

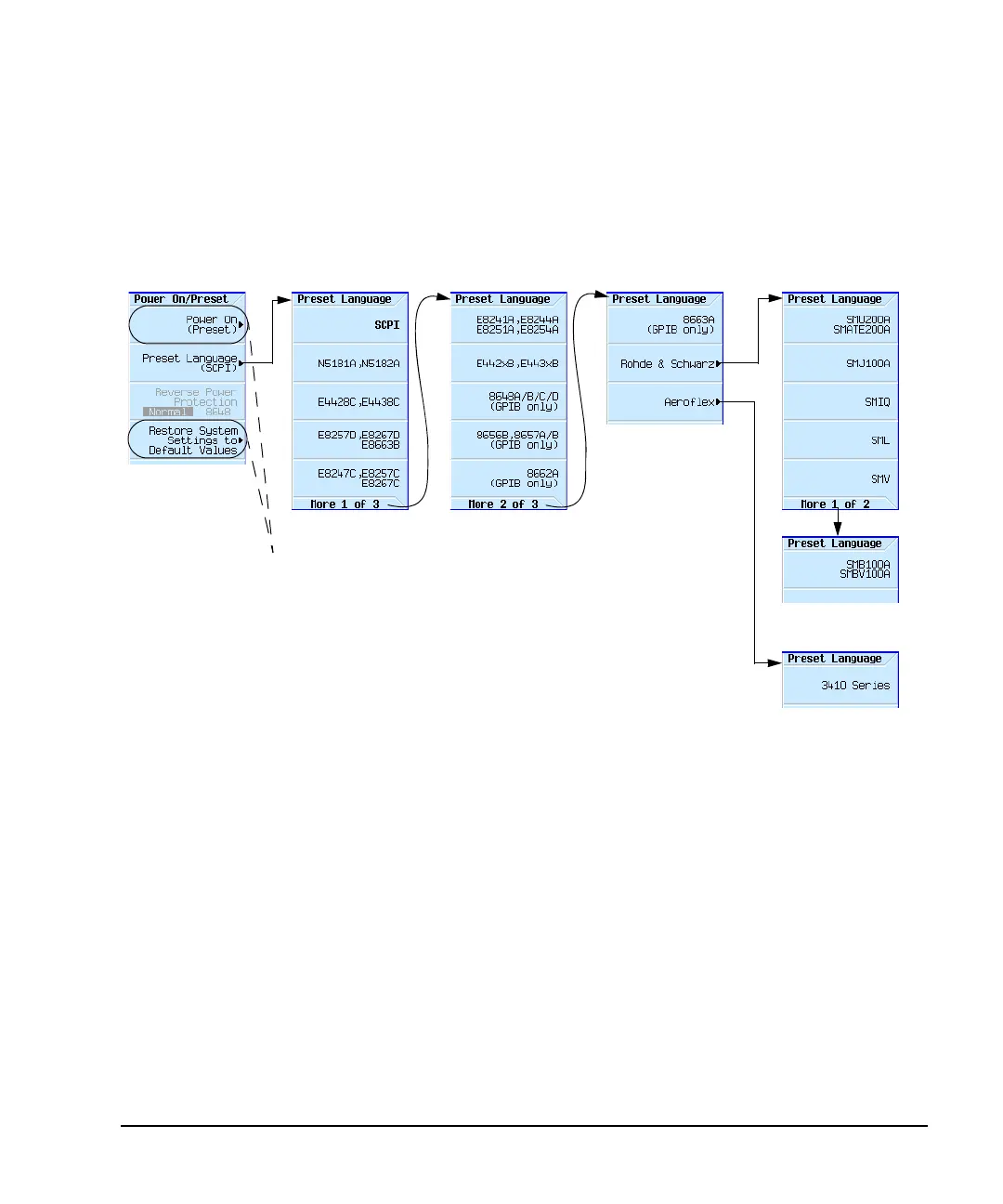

Figure 2-3 N5171B/72B/81B/82B

Utility > Power On/Preset

For details on each key, use key help

as described on page 44.

Select the desired Remote language.

page 29

Refer to the SCPI Command Reference.
