Agilent X-Series Signal Generators User’s Guide 337
Custom Digital Modulation (Option 431)
Using the Arbitrary Waveform Generator
Using the Arbitrary Waveform Generator
This section teaches you how to build dual arbitrary (ARB) waveform files containing custom digital
modulation for testing component designs.
Figure 13-17 Adding Custom Modulation to a Waveform
Using Predefined Custom Digital Modulation
This section teaches you how to perform the following tasks:
• Selecting a Predefined EDGE Setup on page 337
• Generating the Waveform on page 337
• Configuring the RF Output on page 338
Selecting a Predefined EDGE Setup
1. Press Preset.
2. In the ARB Custom Modulation menu (page 337), press Single Carrier Setup > Quick Setup > EDGE.
Generating the Waveform
Press Digital Modulation Off On.
This generates a waveform with the pre–defined EDGE state selected in the step. The display changes
to Dig Mod Setup: EDGE. During waveform generation, the DIGMOD and I/Q annunciators appear and
the pre–defined digital modulation state is stored in volatile memory (BBG). The waveform is now
modulating the RF carrier.
page 353
page 320

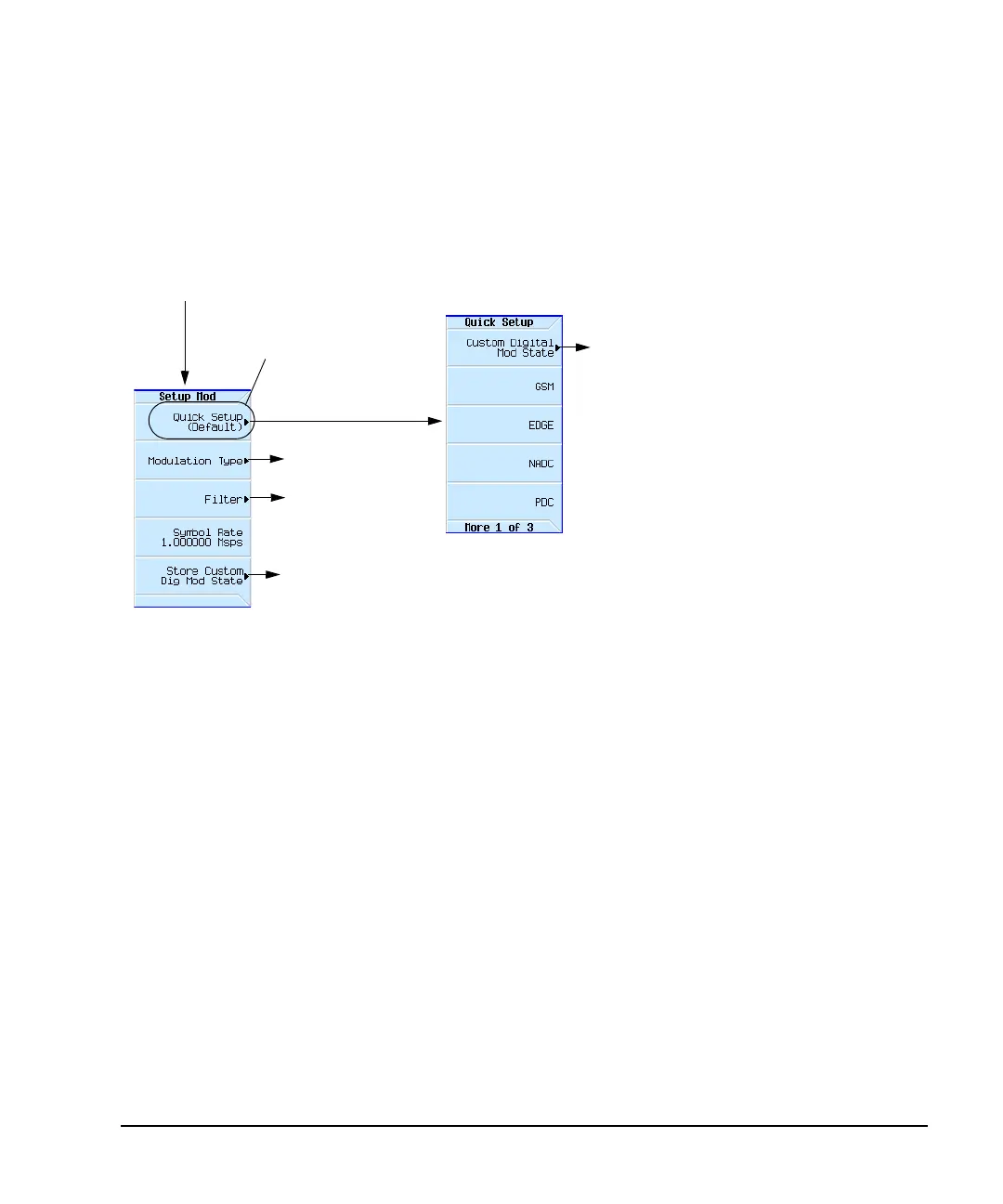

This softkey label updates to reflect
the current modulation type.
Mode > ARB Custom Modulation > Single Carrier Setup
page 319
page 343
For details on each key, use key help as described on page 44.
