390 Agilent X-Series Signal Generators User’s Guide

Troubleshooting

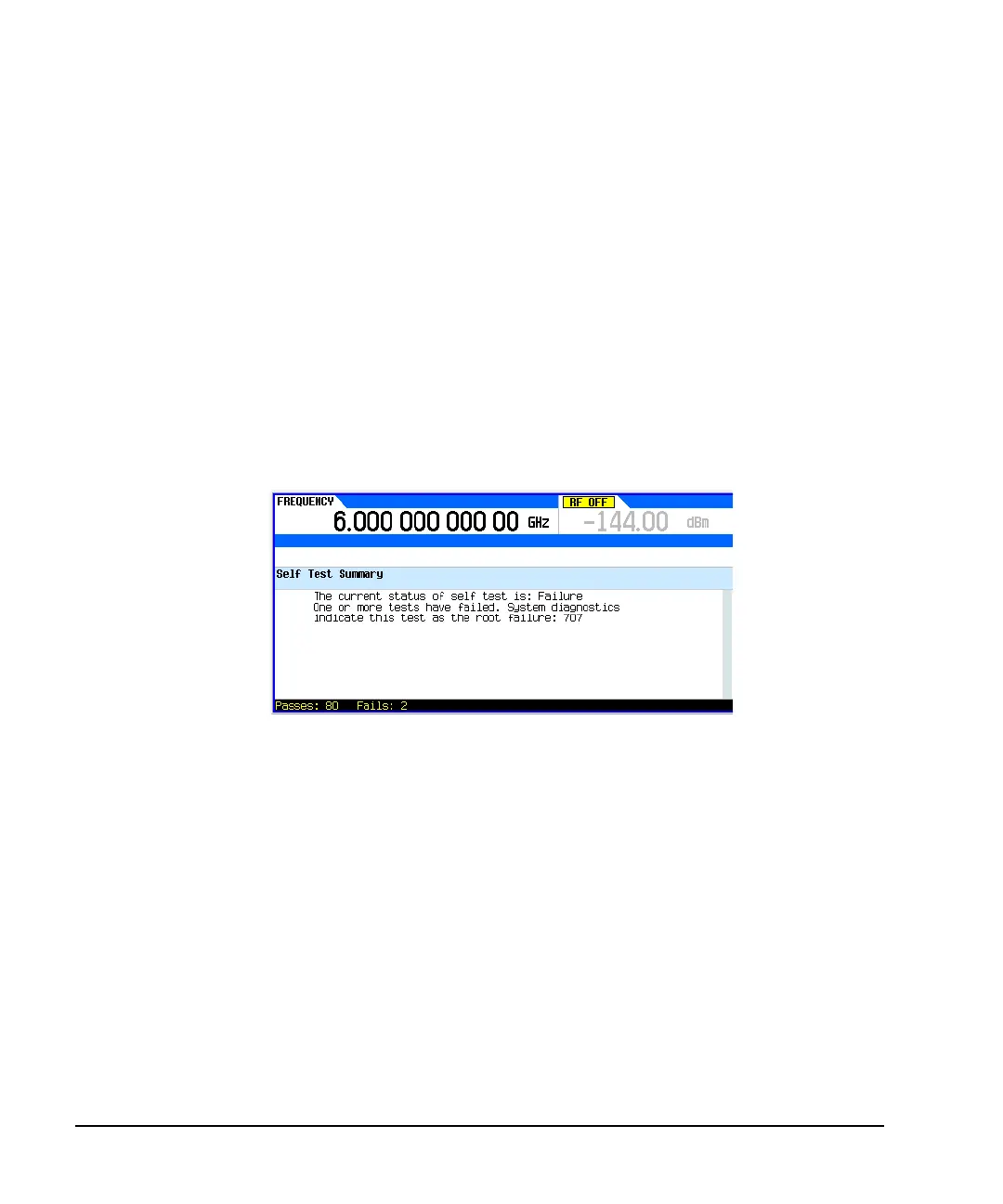

Self Test Overview

The self test is a series of internal tests that checks different signal generator functions. The self test,

is also available by via the remote web interface. For more information on the Web- Enabled MXG,

refer to the Programming Guide.
