328 Agilent X-Series Signal Generators User’s Guide
Custom Digital Modulation (Option 431)
Creating and Using Bit Files
Recalling a User File
In this example, you learn how to recall a user- defined data file from the memory catalog. If you
have not created and stored a user- defined data file, complete the steps in the previous sections,
“Creating a User File” on page 325 and “Renaming and Saving a User File” on page 327.
1. Press Preset.
2. Press Mode > Real-Time Custom Modulation > Modulation Setup > Data > User File.
3. Highlight the file USER1.
4. Press Edit File.
The Bit File Editor opens the file USER1.
Modifying an Existing User File
In this example, you learn how to modify an existing user- defined data file. If you have not created,
stored, and recalled a user- defined data file, complete the steps in the previous sections, “Creating a
User File” on page 325, “Renaming and Saving a User File” on page 327 and “Recalling a User File”
on page 328.
Navigating the Bit Values
1. Press Return > Goto > 4 > C > Enter.
This moves the cursor to bit position 4C in the table, as shown in the following figure.

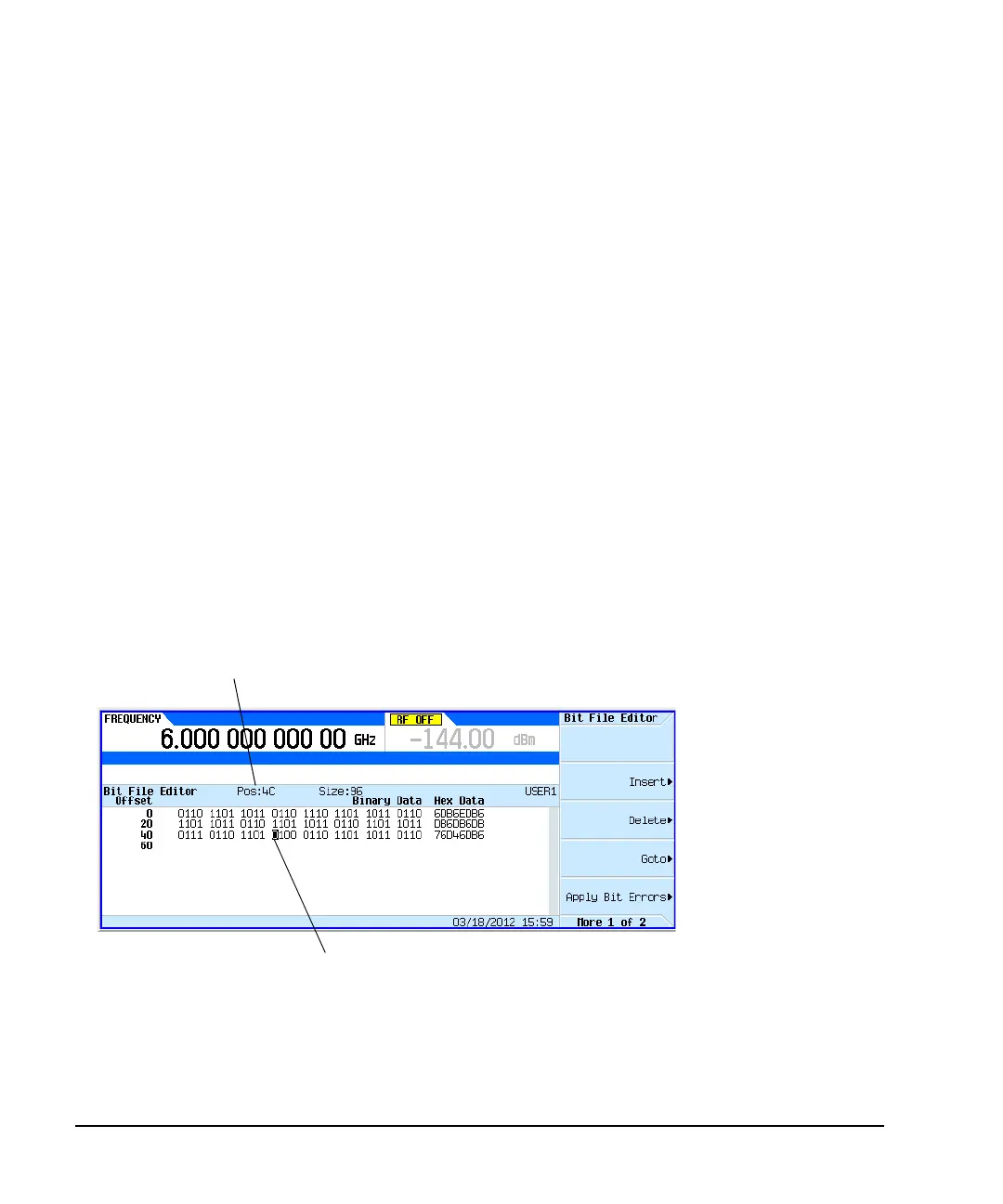

Figure 13-12 Navigating the Bit Values
Cursor moves to new position
Position indicator changes
To Next Page
