180 Agilent X-Series Signal Generators User’s Guide
Basic Digital Operation (Option 653/655/656/657)
Triggering a Waveform
• Segment Advance mode plays a segment in a sequence only if triggered. The trigger source controls
segment–to–segment playing (see Example: Segment Advance Triggering on page 181). A trigger
received during the last segment loops play to the first segment in the sequence.
• Gated mode triggers the waveform at the first active triggering state, then repeatedly starts and
stops playing the waveform in response to an externally applied gating signal. See Example: Gated
Triggering on page 182.

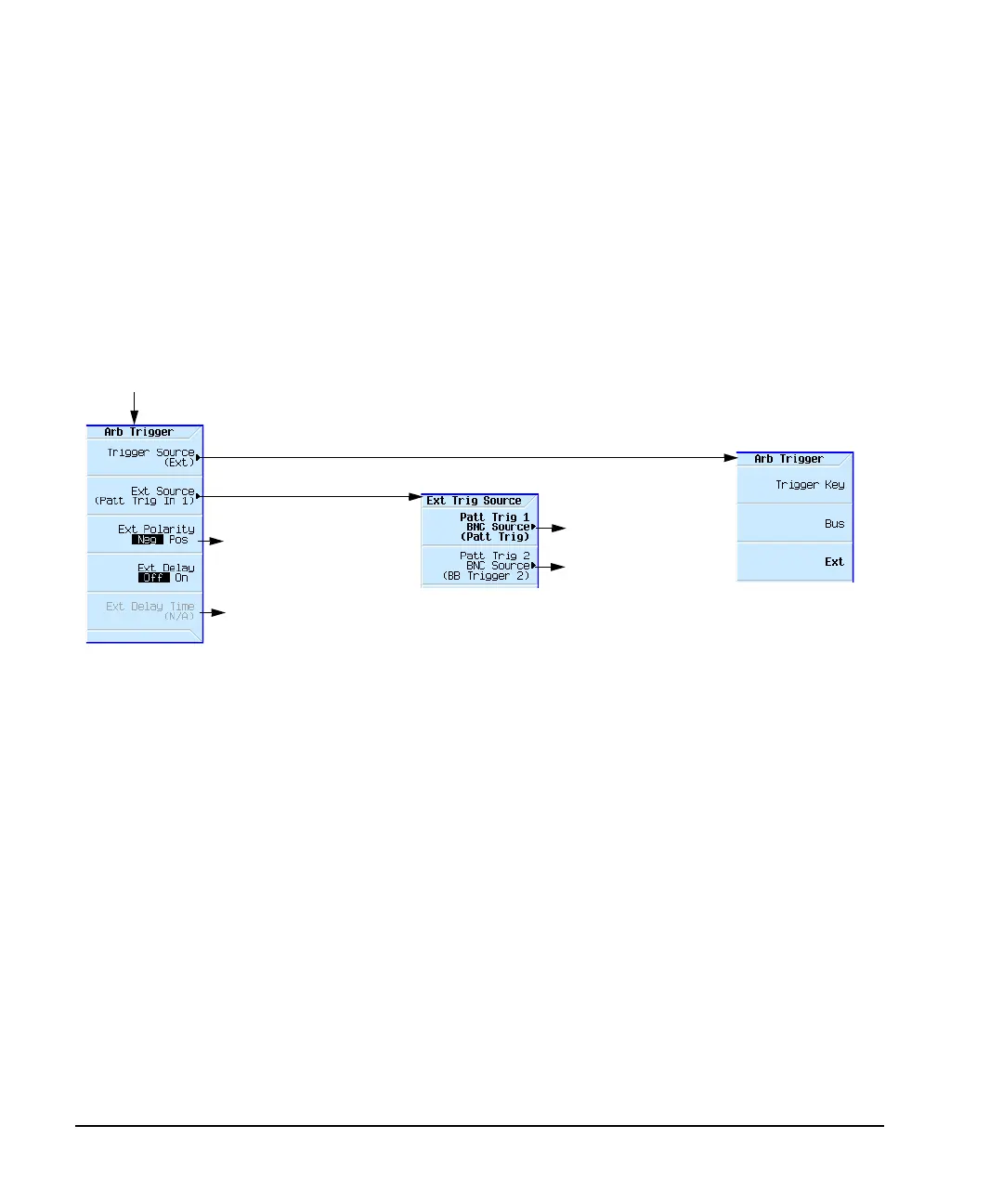

Trigger Source
External Trigger Polarity
• In Continuous, Single, and Segment Advance modes, use the Ext Polarity softkey to set the external
trigger polarity.
• In Gated mode, the Active Low and Active High softkeys (page 179) determine the external
trigger polarity.
Mode >
Dual ARB >
Trigger Source
Patt Trig In BNC connector
(see page 17)
Aux I/O connector
(see page 18)
Neg = the signal generator
responds during the trigger signal
low state.
Pos = the signal generator
responds during the trigger signal
high state.
For details on each key, use key help
as described on page 44.
Key inactive until Ext
Delay is enabled On.
To Next Page
