Agilent X-Series Signal Generators User’s Guide 83
Using Analog Modulation (Option UNT)
Configuring the LF Output (Option 303)
Configuring the LF Output with a Function Generator Source
In this example, the function generator is the LF output source.
Configuring the Function Generator as the LF Output Source
1. Press Preset.
2. Press the LF Out hardkey.
3. Press LF Out Source > Func Gen 1.
Configuring the Waveform
1. Press Setup LF Out Source > LF Out Waveform > Sine.
2. Press LF Out Freq > 500 > Hz.
3. Press Return.
This returns you to the top LF Output menu.
Configuring the Low Frequency Output
1. Press LF Out Amplitude > 3 > V.
This sets the LF output amplitude to 3 V.
2. Press LF Out Off On.
Figure 4- 4 shows that the LF output is now transmitting a signal using the function generator that is
providing a 3 V sine waveform.

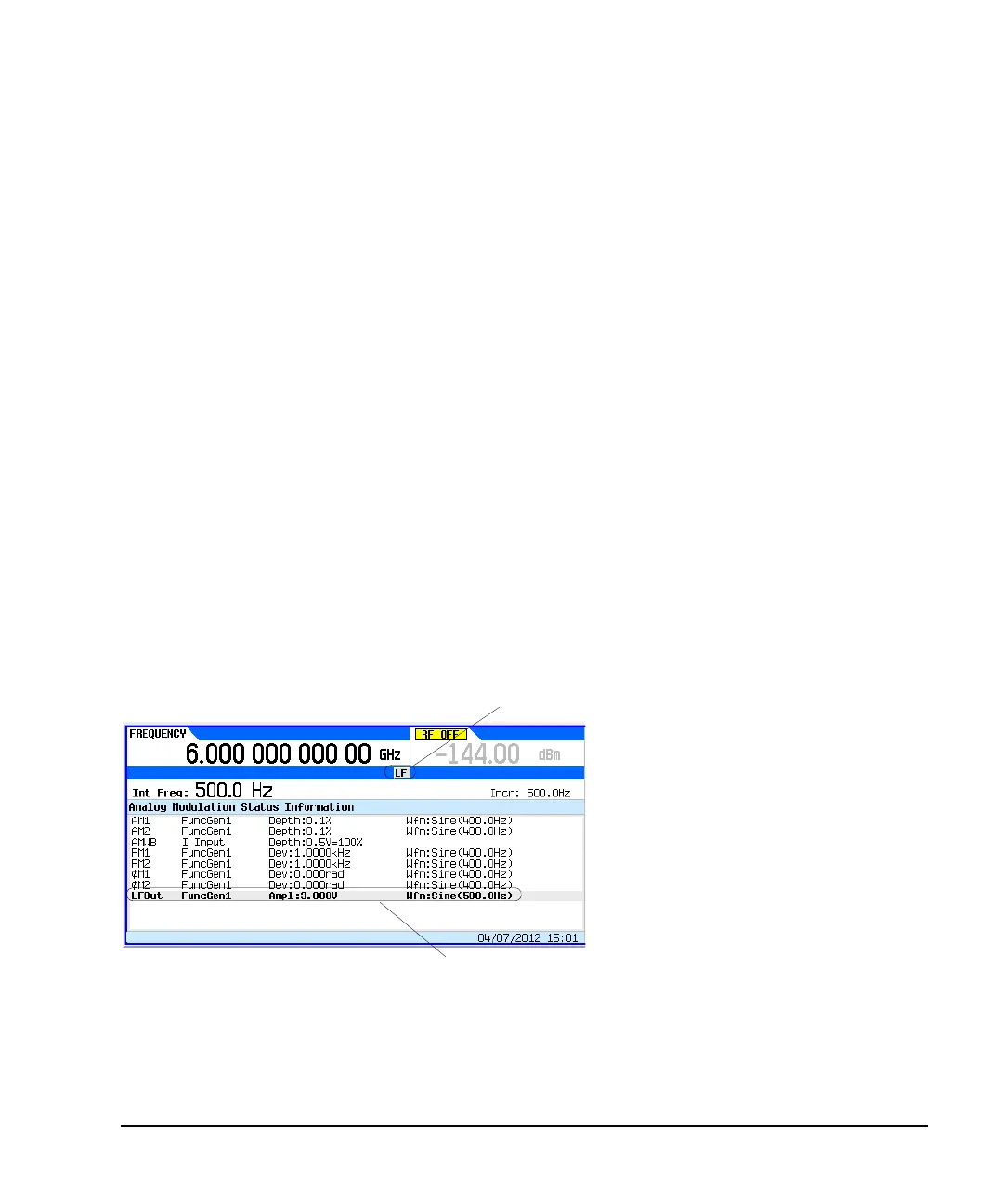

Figure 4-4 LF Out Status Display
For details on each key, use key help
as described on page 44.
LF Out configuration
LF Out annunciator
