6 Agilent X-Series Signal Generators User’s Guide
Signal Generator Overview
Front Panel Overview
indicators, frequency and amplitude settings, and error messages. Labels for the softkeys are located
on the right hand side of the display. See also, “Front Panel Display” on page 10.
3. Softkeys
A softkey activates the function indicated by the displayed label to the left of the key.
4. Numeric Keypad
The numeric keypad comprises the 0 through 9 hardkeys, a decimal point hardkey, a minus sign
hardkey, and a backspace hardkey. See “Entering and Editing Numbers and Text” on page 45.
5. Arrows and Select
The Select and arrow hardkeys enable you to select items on the signal generator’s display for editing.
See “Entering and Editing Numbers and Text” on page 45.
6. Page Up
In a table editor, use this hardkey to display a previous page. See “Example: Using a Table Editor” on
page 46. When text does not fit on one page in the display area, use this key in conjunction with the
Page Down key (page 8) to scroll text.

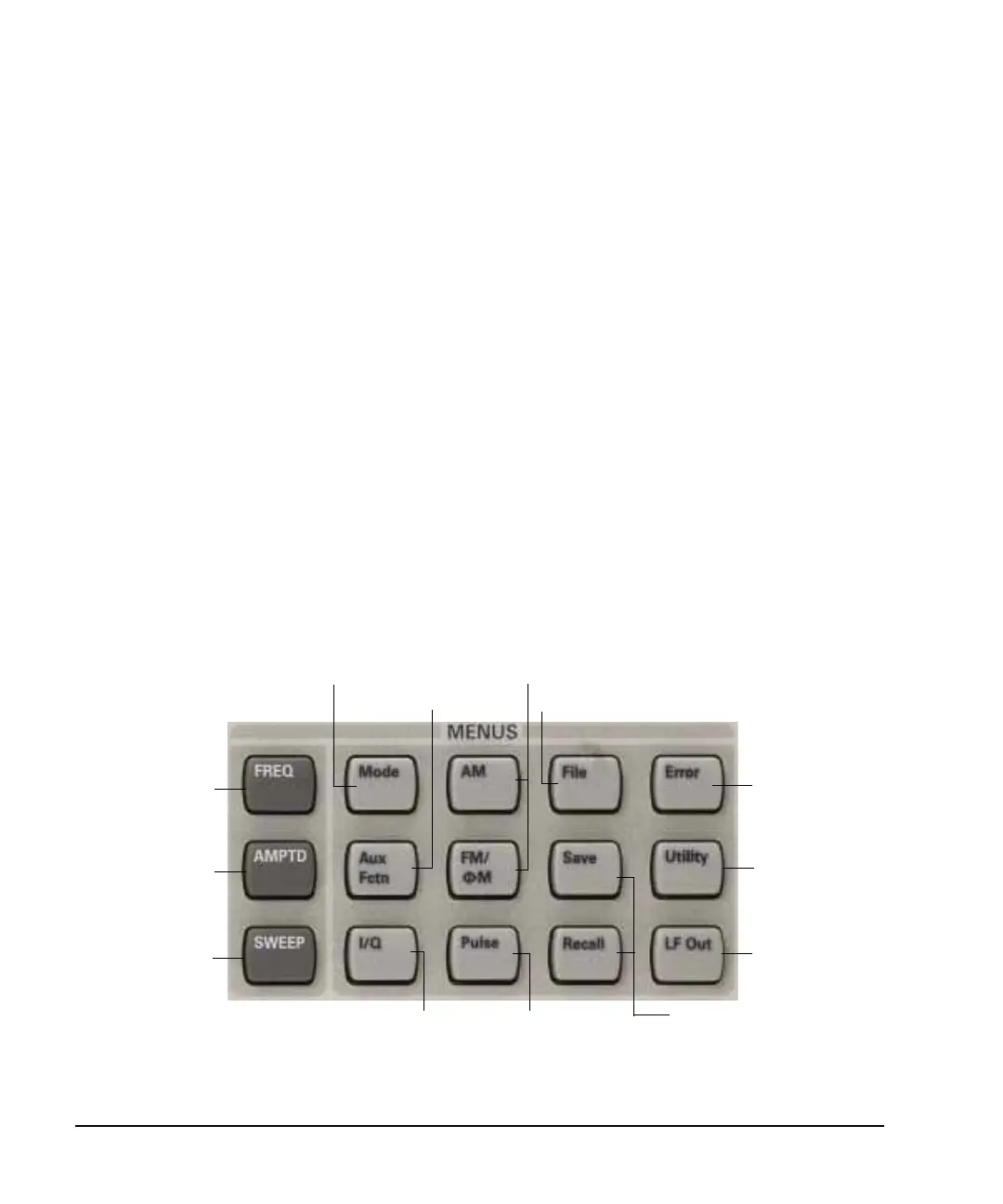

7. MENUS
These hardkeys open softkey menus that enable you to configure instrument functions or access
information.
See page 68
See page 61
See page 47
See page 75
See page 129
Active only on
vector models.
See page 47
See page 50
See page 27
See page 81
See page 145
See page 73
See page 86
To Next Page
