Agilent X-Series Signal Generators User’s Guide 375
Multitone and Two–Tone Waveforms (Option 430)
Using Multitone Modulation
Using Multitone Modulation

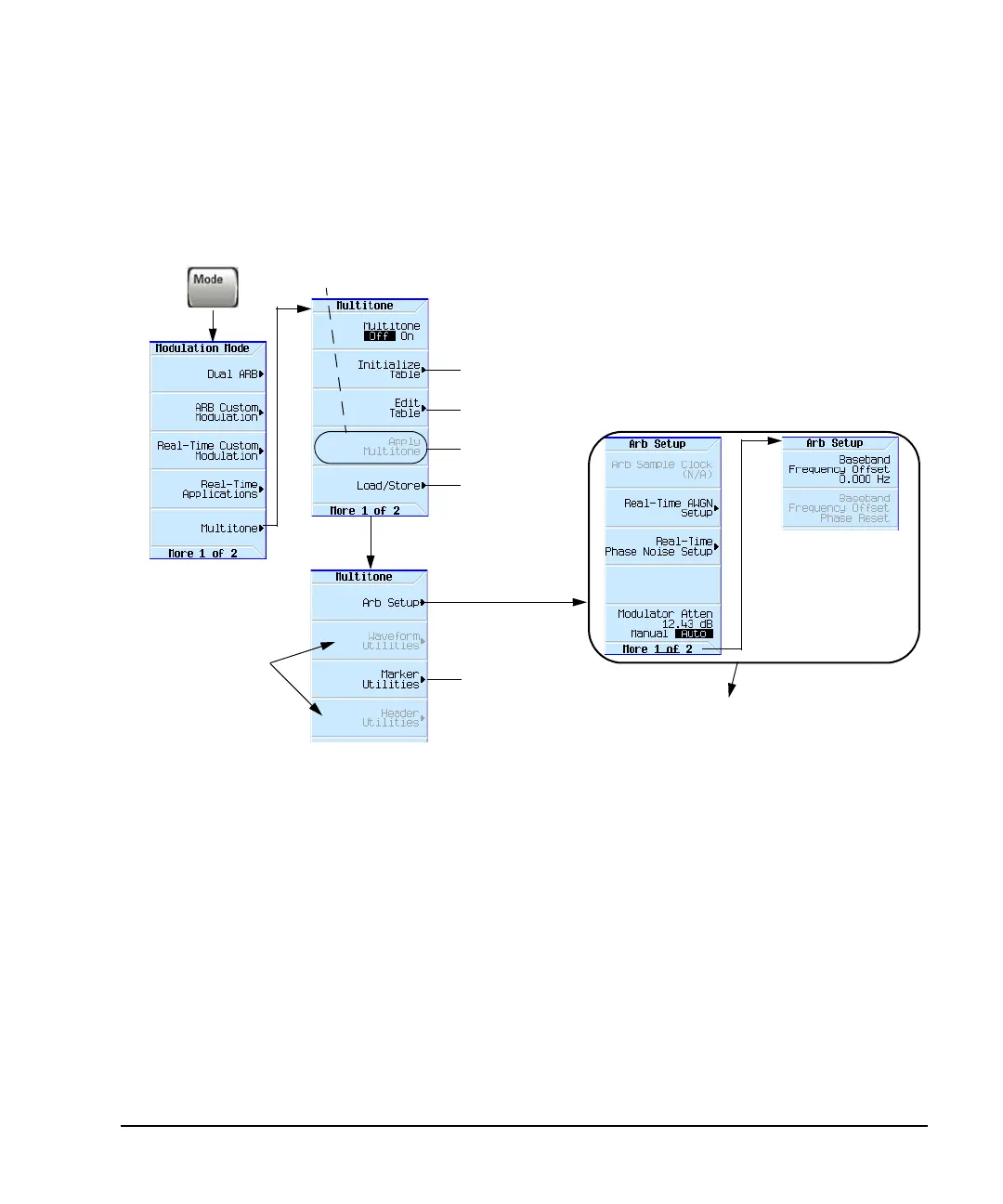

Multitone Modulation Softkeys
Initializing the Multitone Setup Table Editor
1. Press Preset.
2. Press Mode > Multitone
3. Press Initialize Table > Number of Tones > 5 > Enter.
4. Press Freq Spacing > 20 > kHz.
page 376
page 375
This softkey is active if changes have been
made to the current Multitone waveform in
the table editor. The softkey must be
pressed to apply those changes.
page 377
page 377
Active when
Multitone enabled.
For softkey usage,
see page 146
page 146
see page 147
(Multitone’s ARB Setup is similar to Dual Arb Setup.)
Exceptions:
> No Waveform Runtime Scaling softkey,
> No Multi–BBG Sync Setup softkey, and
> No DAC Over–Range Protection softkey
For details on each key, use key help as
described on page 44.
