Digital Signal Interface Module (Option 003/004)
Operating the N5102A Module in Output Mode
setup.
4. Select the port configuration for the device.
Selecting the Output Direction
Press Data Setup > Direction Input Output to Output and press Return.
NOTE If Option 003 is the only option installed, the direction softkey will be unavailable
and the mode will always be output. With both Option 003 (output mode) and Option
004 (input mode) installed, the default direction is output.
Selecting the Data Parameters
This procedure guides you through the data setup menu. Softkeys that have self- explanatory names
are generally not mentioned. For example, the Word Size softkey.
1. Refer to Figure 10- 12. Press the Data Setup softkey.

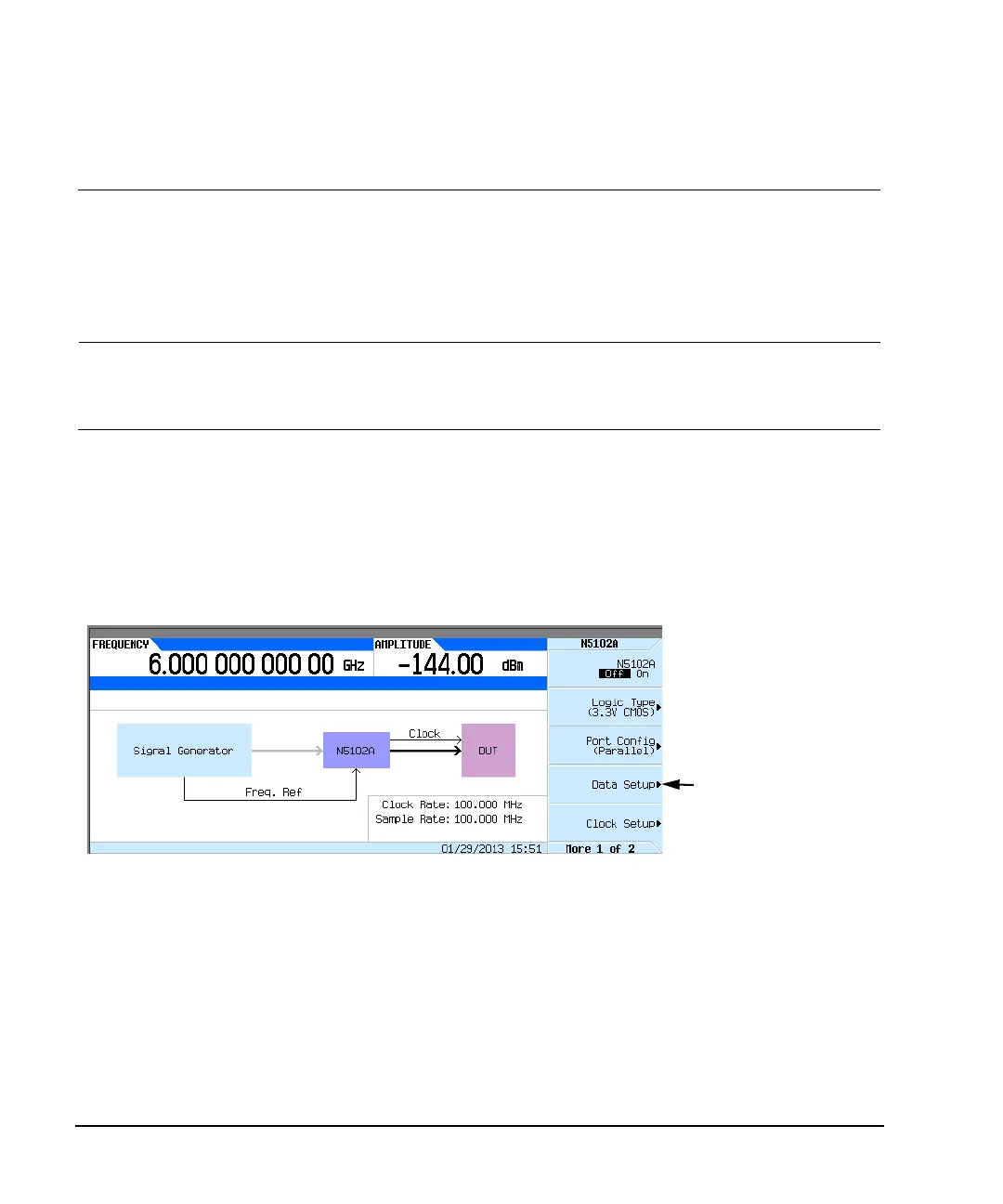

Figure 10-12 Data Setup Menu Location
This softkey menu accesses the various parameters that govern the data received by the device
under test. The status area of the display shows the number of data lines used for both I and Q
along with the clock position relative to the data. When the port configuration is parallel or
parallel interleaved, the number of data lines indicated is equivalent to the word (sample) size.
When the port configuration is serial, the display will show that only one I and one Q data line
is being used along with the frame marker that delineates the beginning of a sample.
Figure 10- 13
shows the data setup menu structure.
Accesses the Data Setup menu
To Next Page
