166 Agilent X-Series Signal Generators User’s Guide
Basic Digital Operation (Option 653/655/656/657)
Using Waveform Markers
Accessing Marker Utilities
Mode > Dual ARB > More > Marker Utilities
Note: This is the
second Arb menu.

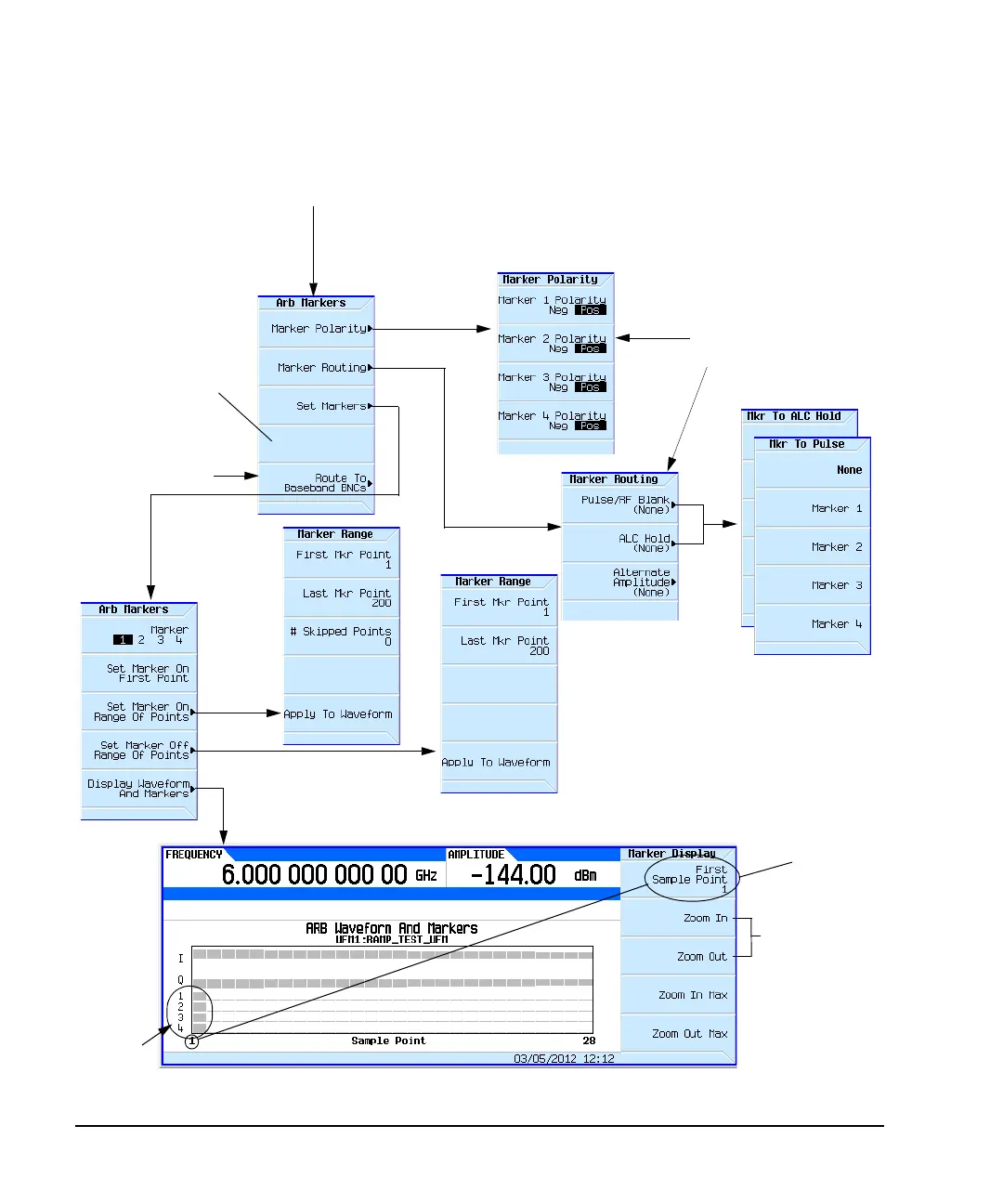

The display below shows the I and Q components of the waveform, and
First sample point
shown on display
These softkeys change
the range of waveform
sample points shown
on the marker display.
Each press of the
softkey changes the
sample range by
approximately a factor
of two.
Marker points
on first
sample point
For details on each key, use key help
as described on page 44.
The settings in these menus
can be stored to the file
header, see page 155.
