Agilent Technologies X Series User Manual

130 Agilent X-Series Signal Generators User’s Guide
Using Pulse Modulation (Option UNW or 320)

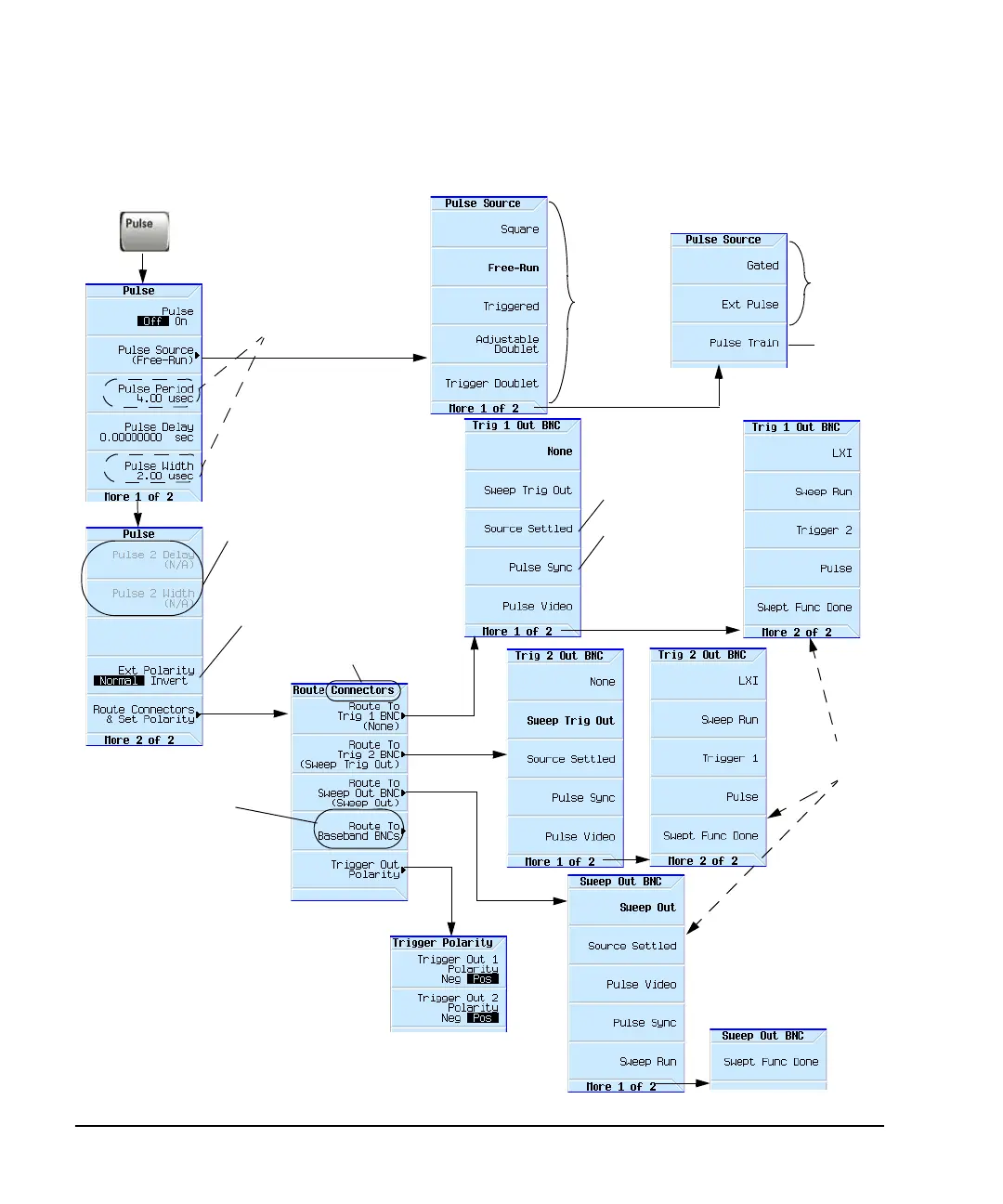

Figure 6-1 Pulse Softkeys
page 133
page 133
Latency from the external
pulse input to the pulse
sync output ≈ 50−60 ns.
Width Period
50 ns > 50 ns
20 ns ≤ 50 ns
For details on each key, use key help
as described on page 44.
Determines how the signal generator
responds to an external pulse signal.
Normal = high state.
Invert = low state.
Low = settled
TTL signal
See also, page 14
and page 17
Select the signal
routed to each
output connector.
Available on vector
instruments with
BBG.
These softkeys are
only available when
the Pulse–Source is
set to Adjustable
Doublet.
page 135
Note: Pulse Period
and Pulse Width are
not available when
Pulse Train is selected
as the Pulse Source.
