Agilent X-Series Signal Generators User’s Guide 49

Basic Operation

Setting ALC Bandwidth Control

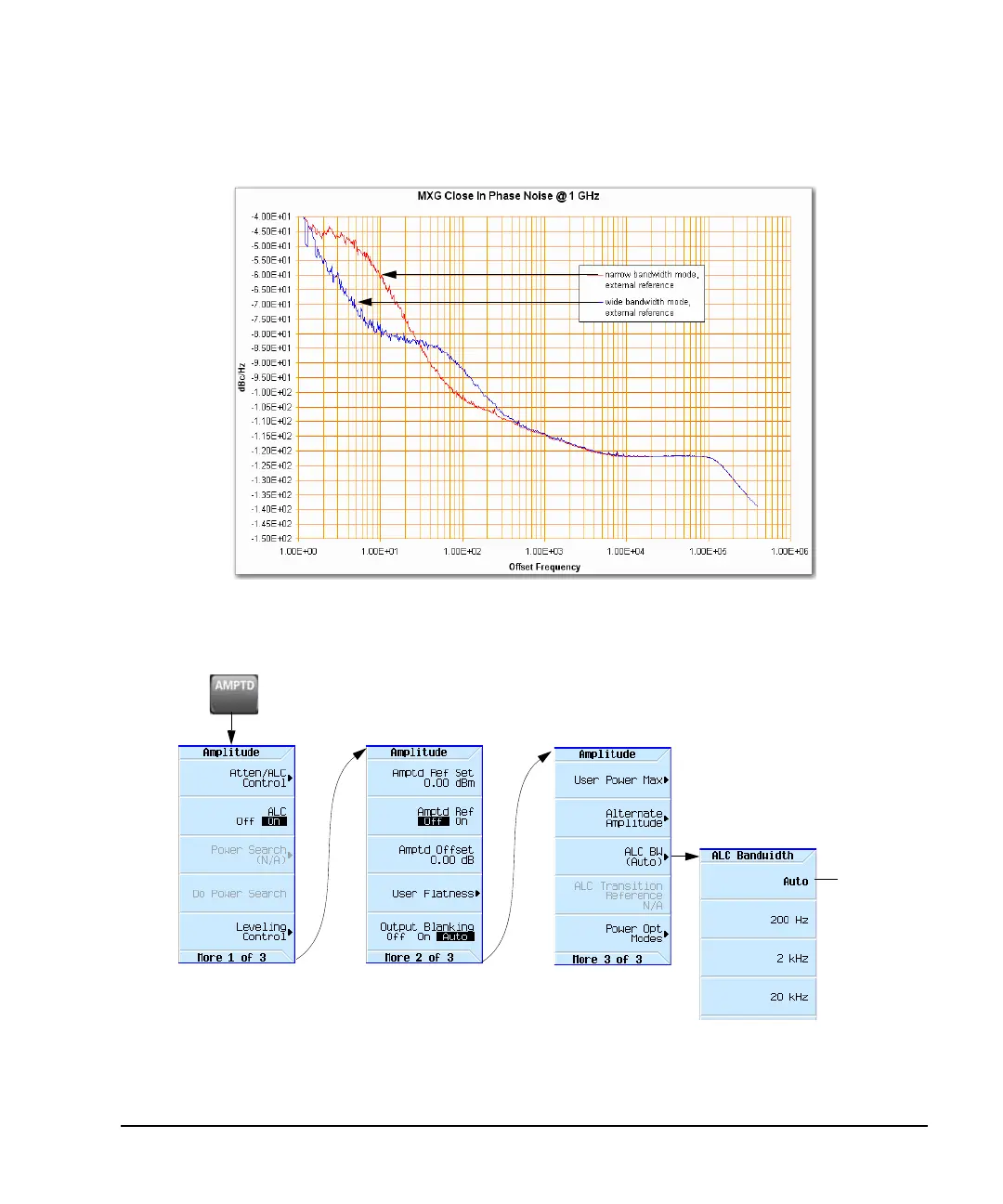

Figure 3-2 Using an External Reference Oscillator

Setting ALC Bandwidth Control

Figure 3-3 Amplitude Softkeys

To display the next menu, press

More.

For details on each key, use key help

as described on page 44.

Refer to the SCPI Command Reference.

Enables the

automatic ALC

bandwidth

mode (Auto).
