Optimizing Performance
Using an Output Offset, Reference, or Multiplier
To set a new frequency or amplitude reference, turn the frequency reference off, and then follow the
steps above.
Setting a Frequency Multiplier
Using a frequency multiplier, the signal generator can display a frequency that is the multiple
(positive or negative) of the output value.
Displayed Value = multiplier value × output frequency
Output Frequency = displayed value ÷ multiplier value
To set a frequency multiplier:
1. Press Frequency > Freq Multiplier > multiplier value > x.
2. Set the desired frequency.
The display equals the output frequency times the multiplier value.
Examples
Output Frequency: 52 MHz 48 MHz 1 GHz
The signal generator alerts you if the output frequency or
amplitude is out of range.
Parameter
Example
#1
Example
#2
Example
#3
Comments
Frequency Multiplier: 3 −3 4 The multiplier range can be set from:
+0.001 to +1000
–1000 to –0.001
Entered (and displayed) Value: 600 MHz −600 MHz 8 GHz
Parameter
Example
#1
Example
#2
Example
#3
Comments

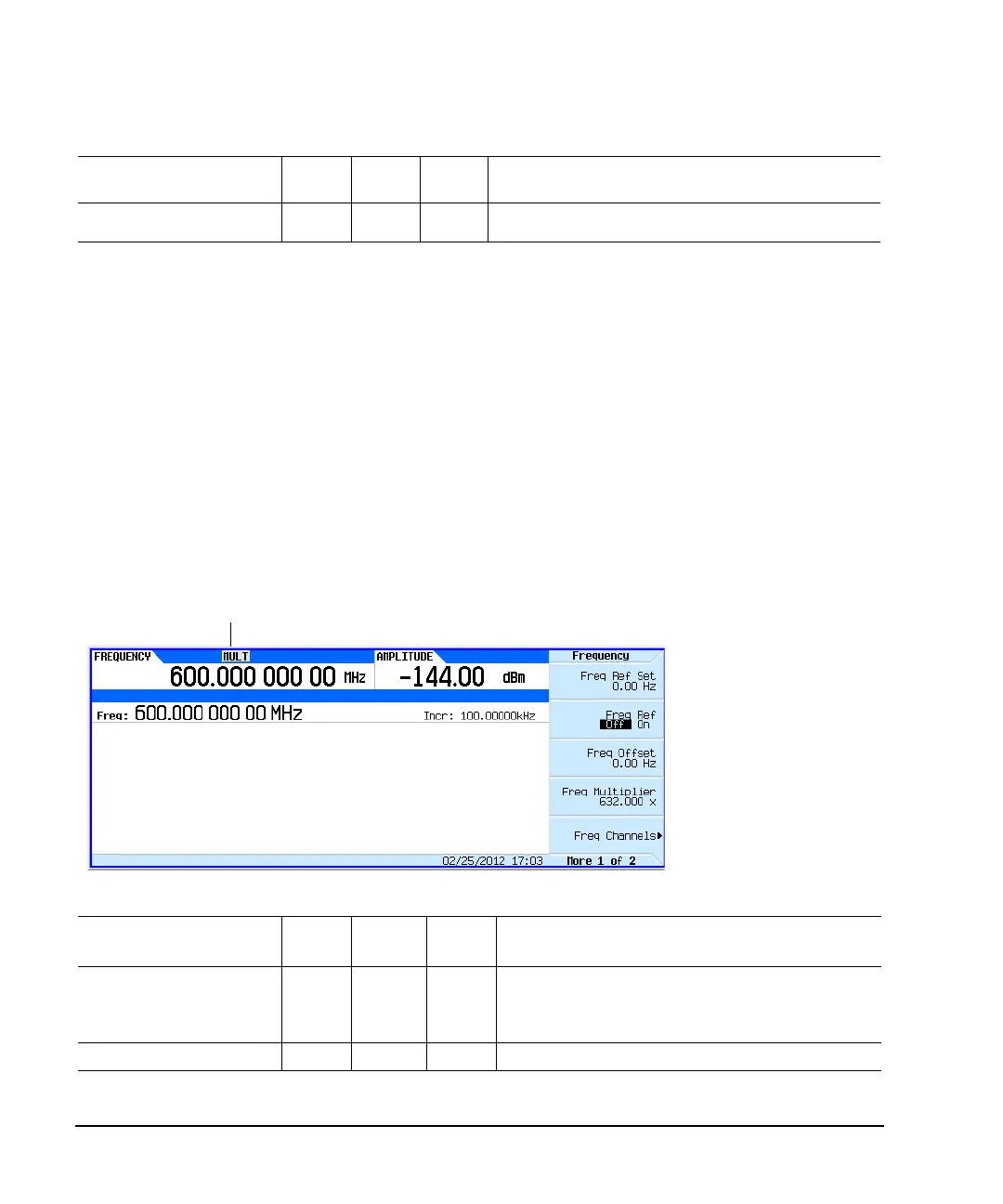

Indicates that a frequency multiplier is on
